FS2 Series Connectors
FS2 series connectors are designed for high-performance applications, offering excellent durability, shielding, and waterproof capabilities.
Save to Favorites
Overview
Specifications

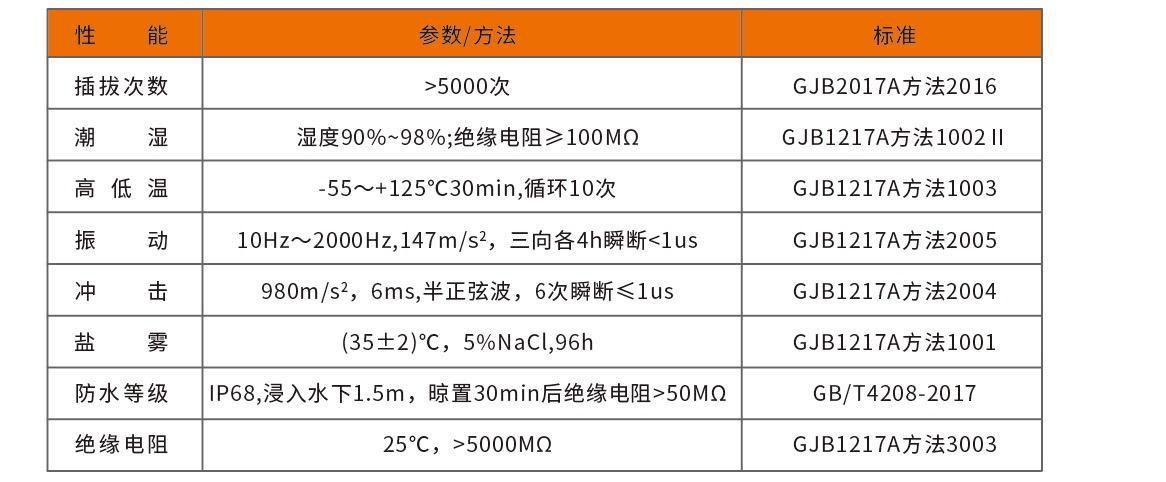

| Parameter | Value |
|---|---|
| Plugging Cycles | ＞5000次 |
| Humidity | 湿度90%~98%;绝缘电阻≥100MΩ |
| High and Low Temperature | -55~+125°C30min,循环10次 |
| Vibration | 10Hz~2000Hz,147m/s²,三向各4h瞬断＜1us |
| Shock | 980m/s²,6ms,半正弦波,6次瞬断＜1us |
| Salt Spray | (35±2)°C,5%NaCl,96h |
| Waterproof Level | IP68,浸入水下1.5m,喷置30min后绝缘电阻＞50MΩ |
| Insulation Resistance | 25°C,＞5000MΩ |

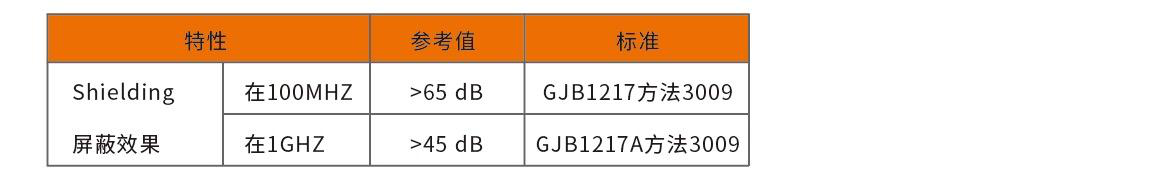

| Shielding Effect at 100MHz | ＞65dB |
| Shielding Effect at 1GHz | ＞45dB |

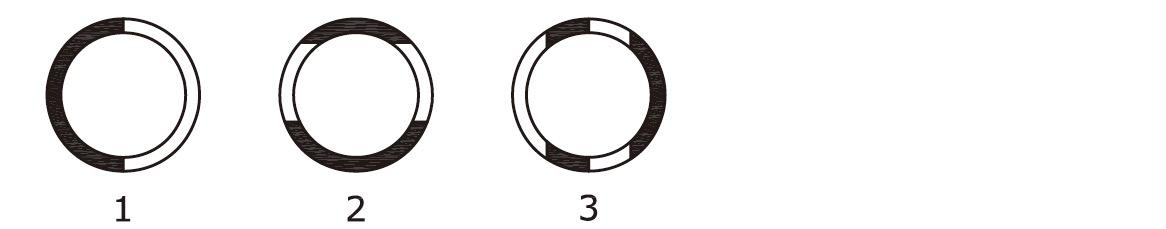

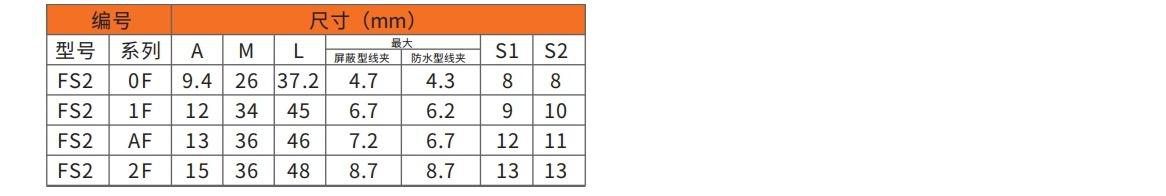

| Dimension A | 9.4,12,13,15 |
| Dimension M | 26,34,36 |
| Dimension L | 37.2,45,46,48 |
| Maximum Shielding Clamp | 4.7,6.7,7.2,8.7 |
| Maximum Waterproof Clamp | 4.3,6.2,6.7,8.7 |
| S1 Dimension | 8,9,12,13 |
| S2 Dimension | 8,10,11,13 |
| Composite | 250,275 |
| U-shaped Ring | 50,75 |
| Space Dimension | 0.9,0.7,1.6,1.3,2.0 |
| Idle Core | 50,75 |
| PCB Straight Core | 0.75,1.8,1.5,0.75 |
| PCB Bent Core | 1.1,2.6,2.0,1.1 |

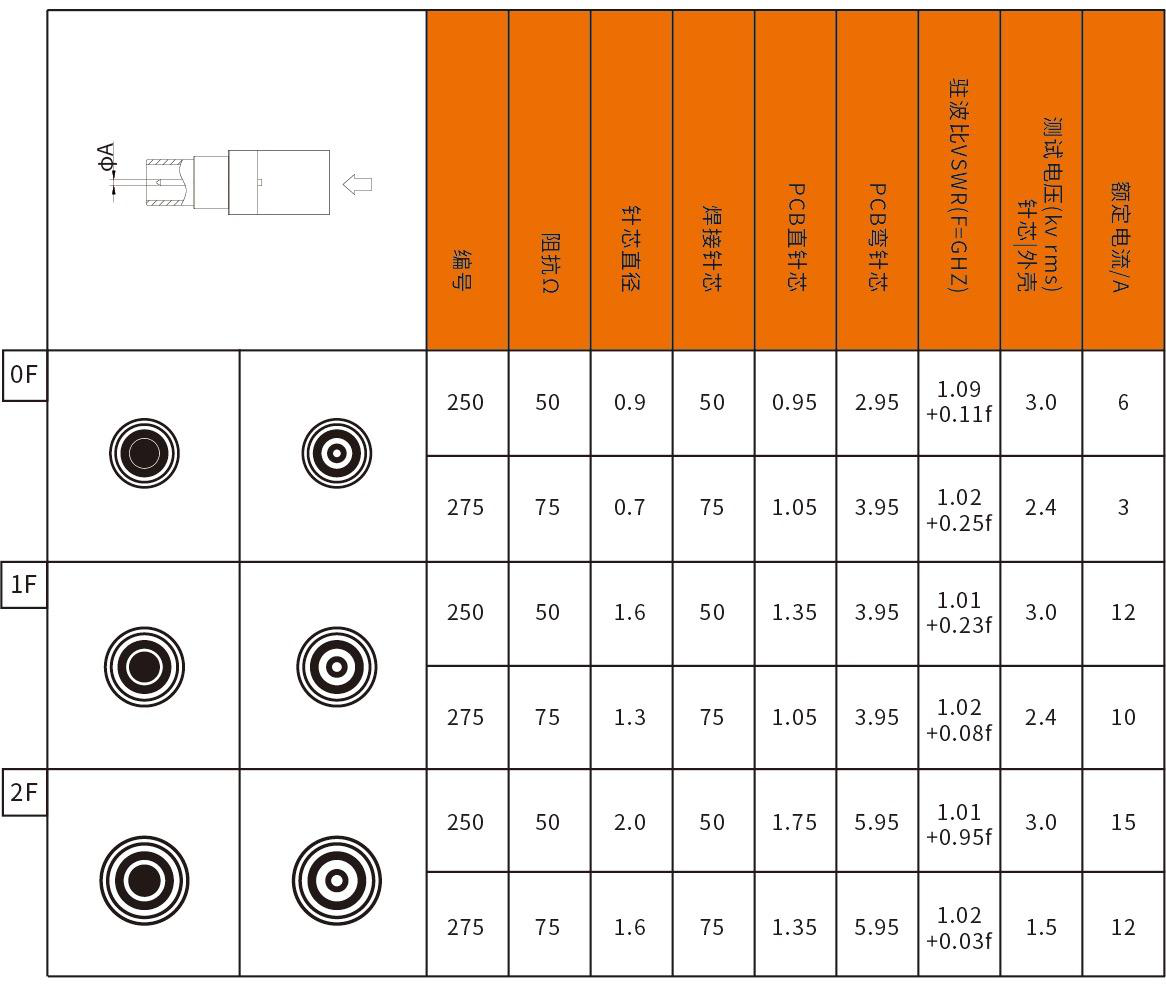

| VSWR(F-GHz) | 1.09+0.11f,1.02+0.25f,1.01+0.23f,1.02+0.08f,1.01+0.95f,1.02+0.03f |
| Test Voltage (kVrms) | 3.0,2.4,3.0,1.5 |
| Rated Current A | 1.0,20.0,7.0,2.2 |

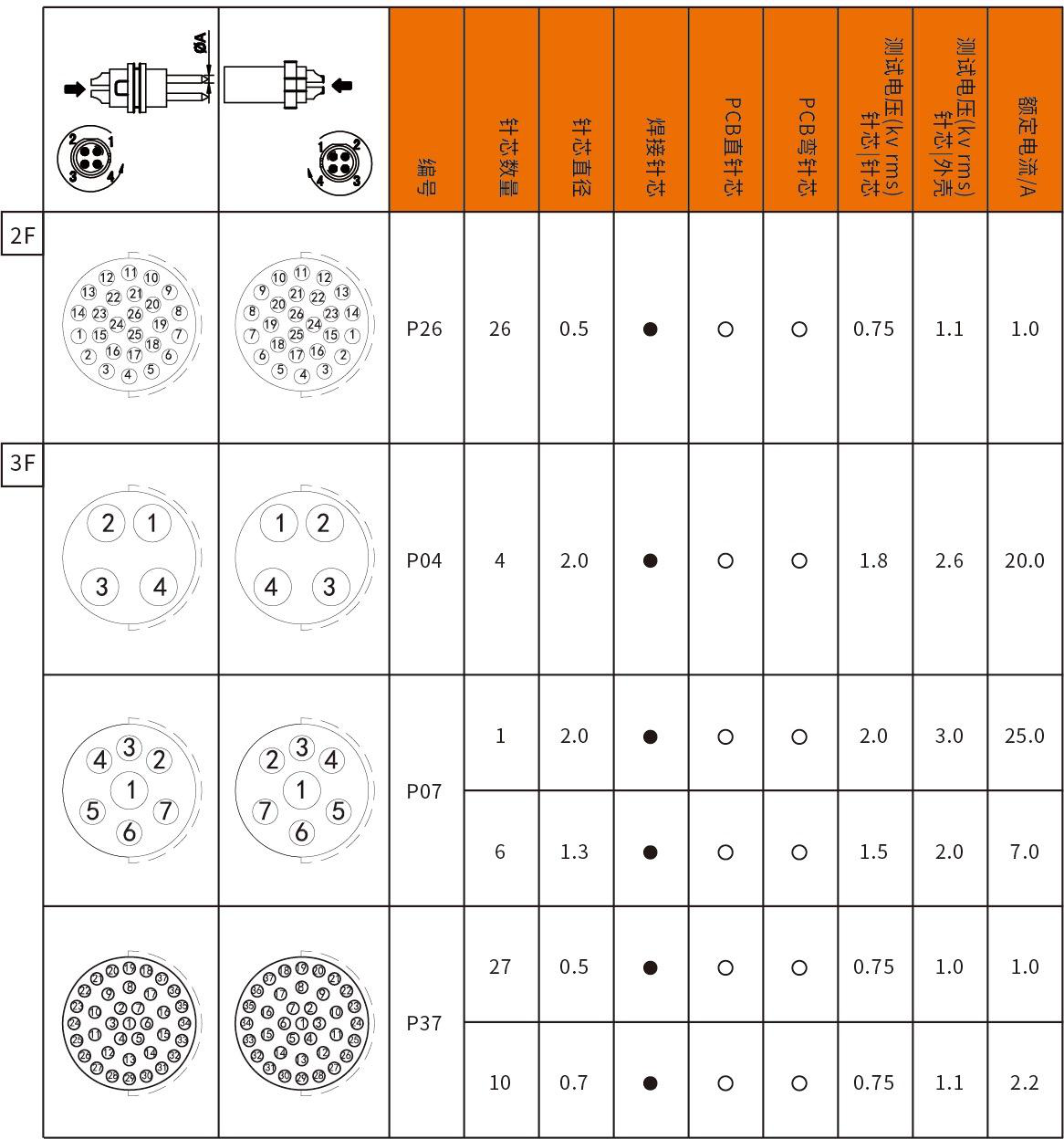

| Platform | P26,P04,P07,P37 |
| Oscillation Idle | 0.5,2.0,1.3,0.7 |
| Space Idle | ●,●,●,● |
| Idle Seal | ○,○,○,○ |
