FAK Series Connectors
FAK series connectors are high-performance electrical connectors designed for demanding environments, offering excellent durability, shielding, and reliability.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

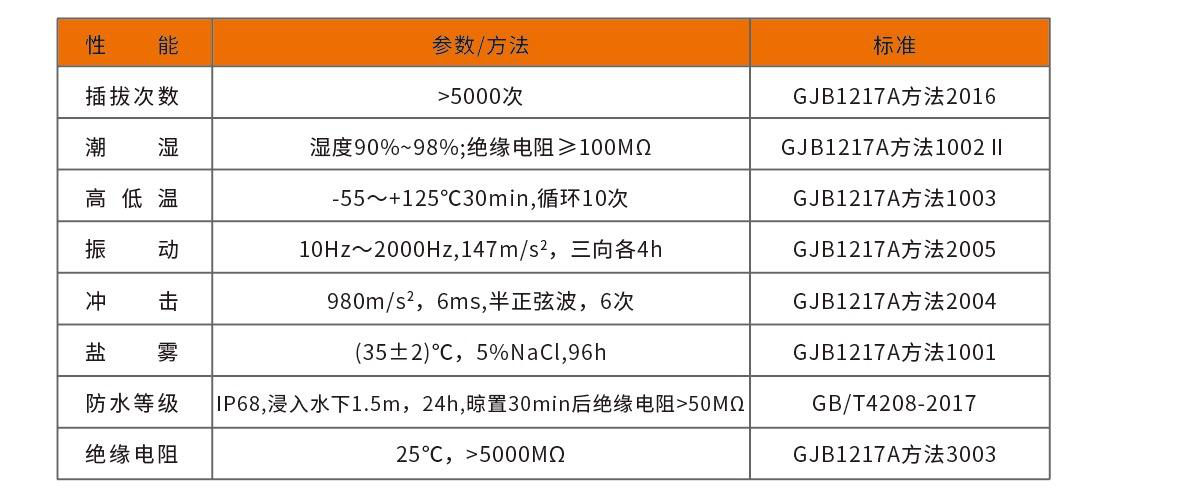

| Insertion Cycles | ＞5000次 |
| Humidity | 湿度90%~98%;绝缘电阻≥100MΩ |
| High and Low Temperature | -55~+125°C30min,循环10次 |
| Vibration | 10Hz~2000Hz,147m/s²,三向各4h |
| Shock | 980m/s²,6ms,半正弦波,6次 |
| Salt Spray | (35±2)°C,5%NaCl,96h |
| Waterproof Level | IP68,浸入水下1.5m,24h,喷雾30min后绝缘电阻≥50MΩ |
| Insulation Resistance | 25°C,＞5000MΩ |

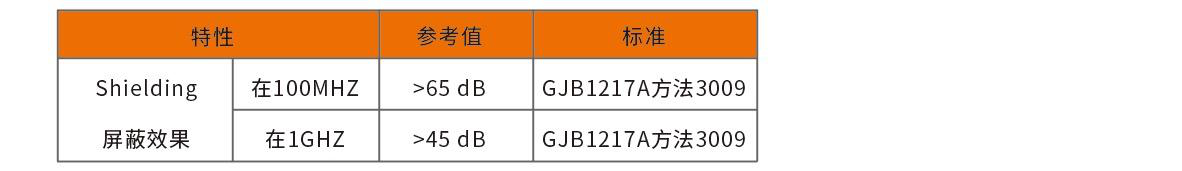

| Shielding Effectiveness at 100MHz | ＞65dB |
| Shielding Effectiveness at 1GHz | ＞45dB |

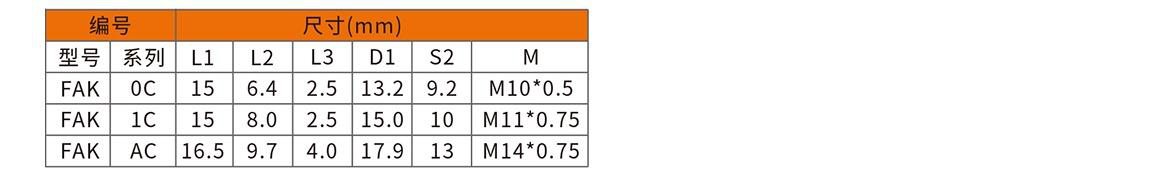

| Model 0C L1 | 15 |
| Model 0C L2 | 6.4 |
| Model 0C L3 | 2.5 |
| Model 0C D1 | 13.2 |
| Model 0C S2 | 9.2 |
| Model 0C M | M10*0.5 |
| Model 1C L1 | 15 |
| Model 1C L2 | 8.0 |
| Model 1C L3 | 2.5 |
| Model 1C D1 | 15.0 |
| Model 1C S2 | 10 |
| Model 1C M | M11*0.75 |
| Model AC L1 | 16.5 |
| Model AC L2 | 9.7 |
| Model AC L3 | 4.0 |
| Model AC D1 | 17.9 |
| Model AC S2 | 13 |
| Model AC M | M14*0.75 |

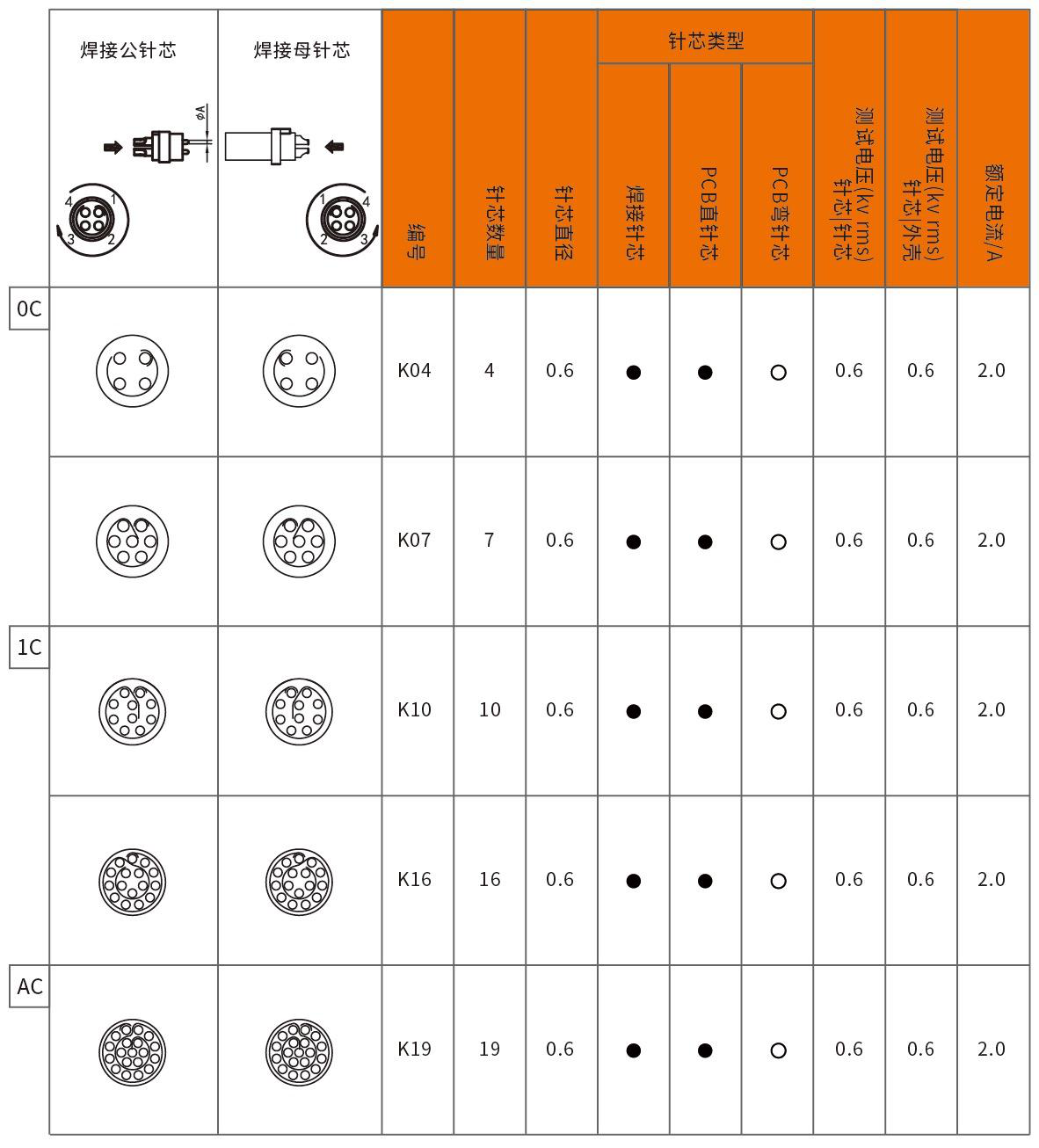

| Pin Core Type 0C K04 | 4 |
| Pin Core Type 0C K07 | 7 |
| Pin Core Type 1C K10 | 10 |
| Pin Core Type 1C K16 | 16 |
| Pin Core Type AC K19 | 19 |
| Rated current | 2.0A |
