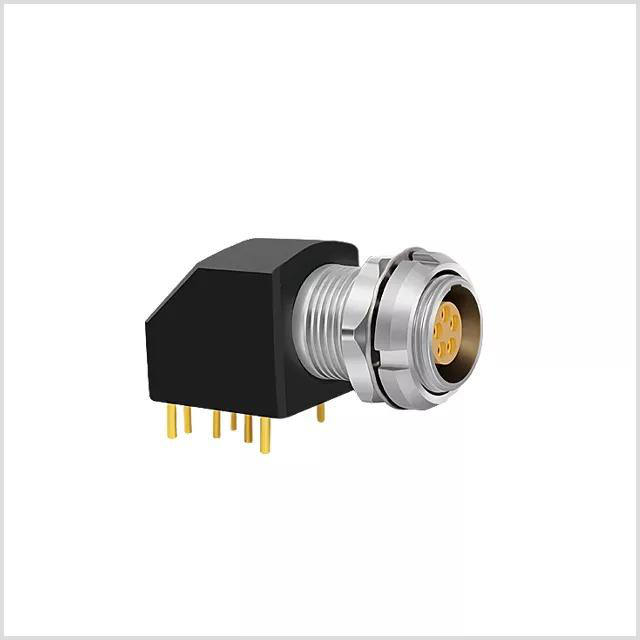

Circular Connector
This circular connector is designed for high-performance applications, offering reliable electrical connections and robust mechanical properties.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

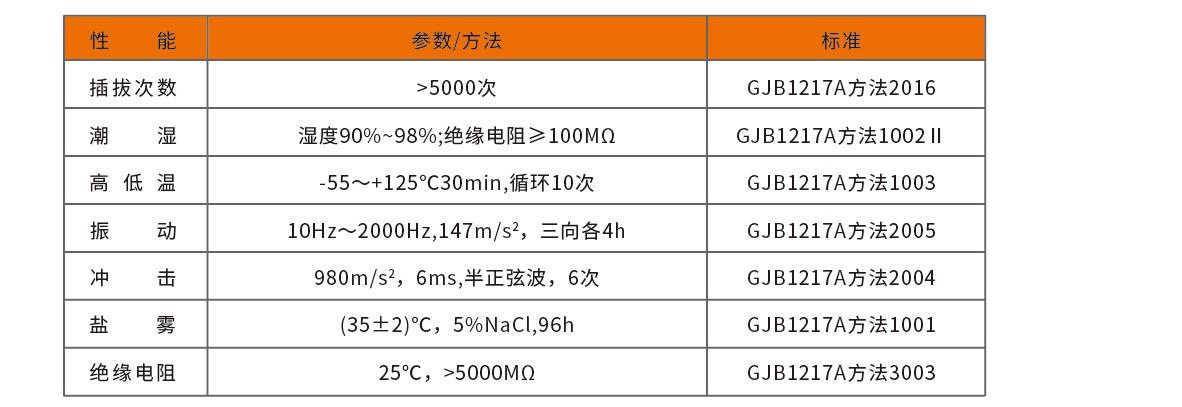

| Mating Cycles | >5000次 |
| Humidity | 湿度90%~98%;绝缘电阻≥100MΩ |
| High and Low Temperature | -55~125°C30min,循环10次 |
| Vibration | 10Hz~2000Hz,147m/s²,三向各4h |
| Shock | 980m/s²,6ms,半正弦波,6次 |
| Salt Spray | (35±2)°C,5%NaCl,96h |
| Insulation Resistance | 25°C,>5000MΩ |

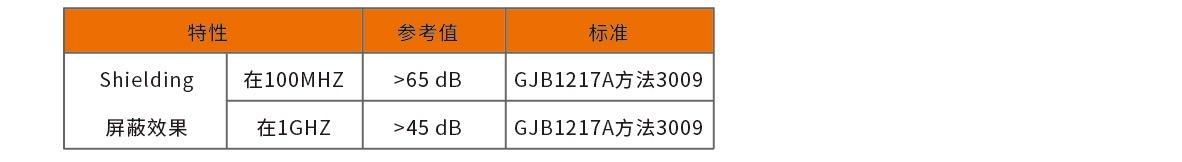

| Shielding Effectiveness at 100MHz | >65dB |
| Shielding Effectiveness at 1GHz | >45dB |

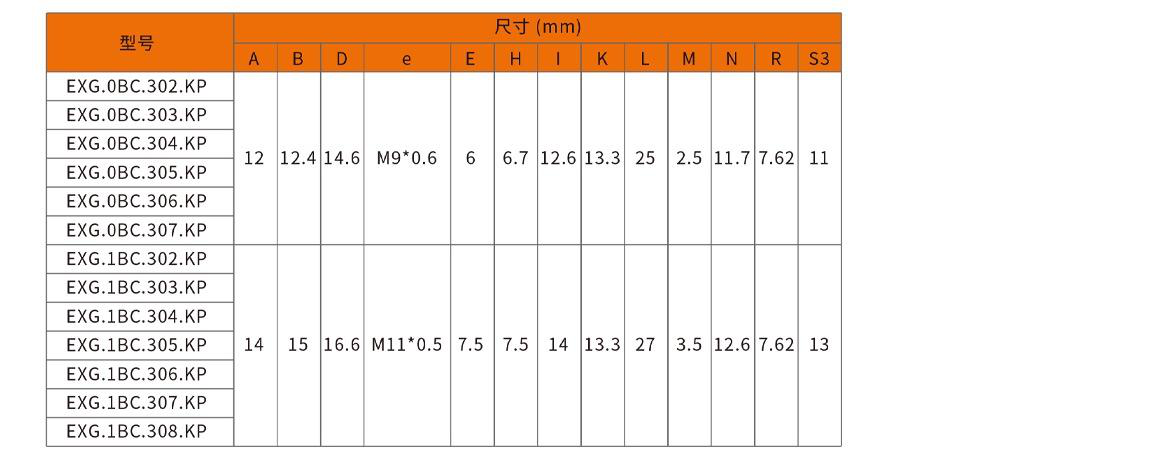

| Dimension A | 12, 14 |
| Dimension B | 12.4, 15 |
| Dimension D | 14.6, 16.6 |
| Dimension e | M9*0.6, M11*0.5 |
| Dimension e | 6, 7.5 |
| Dimension H | 6.7, 7.5 |
| Dimension I | 12.6, 14 |
| Dimension K | 13.3, 13.3 |
| Dimension L | 25, 27 |
| Dimension M | 2.5, 3.5 |
| Dimension N | 11.7, 12.6 |
| Dimension R | 7.62, 7.62 |
| Dimension S3 | 11, 13 |

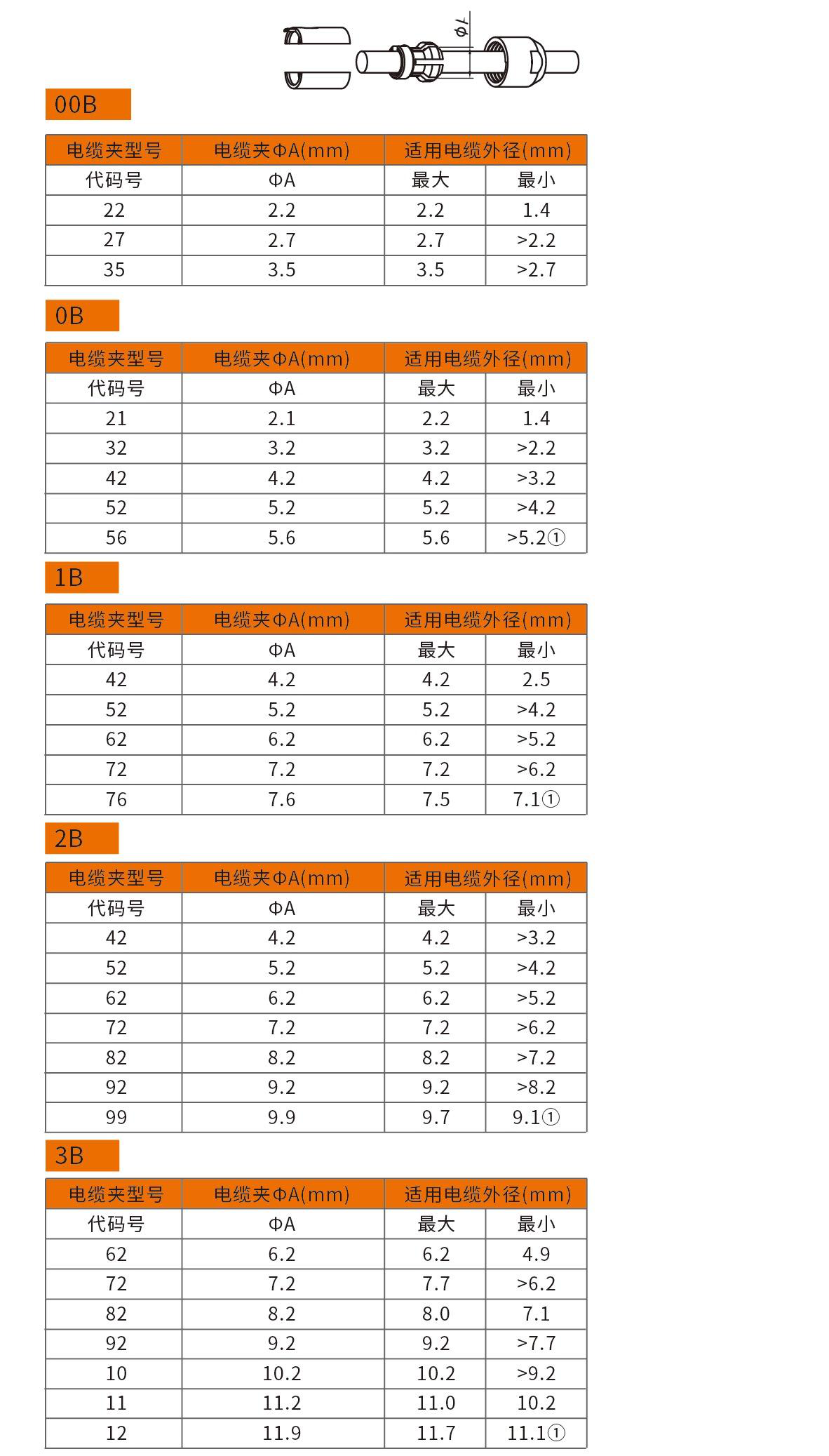

| Cable Clamp Diameter ΦA | 2.2, 2.7, 3.5, 2.1, 4.2, 5.2, 5.6, 6.2, 7.2, 7.6, 8.2, 9.2, 9.9, 10.2, 11.1, 11.9 |
| Applicable Cable Outer Diameter | 2.2~1.4, >2.2~2.7, >2.7~3.5, 2.2~1.4, >3.2~4.2, >4.2~5.2, >5.2~5.6, >6.2~7.2, >7.2~7.6, >7.6~8.2, >8.2~9.2, >9.2~9.9, >9.7~10.2, >10.2~11.1, >11.1~11.9 |

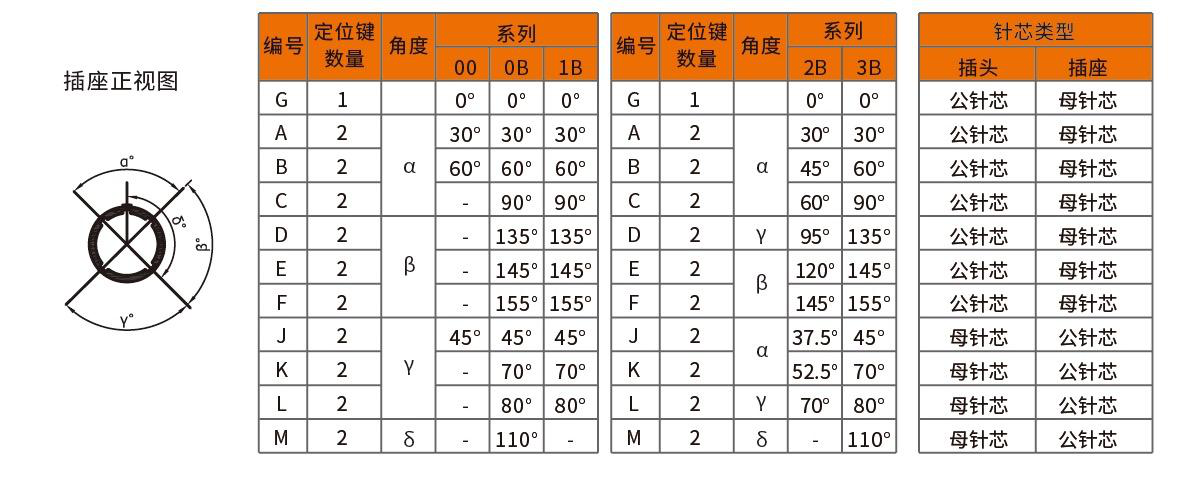

| Pin Type | 公针芯,母针芯 |

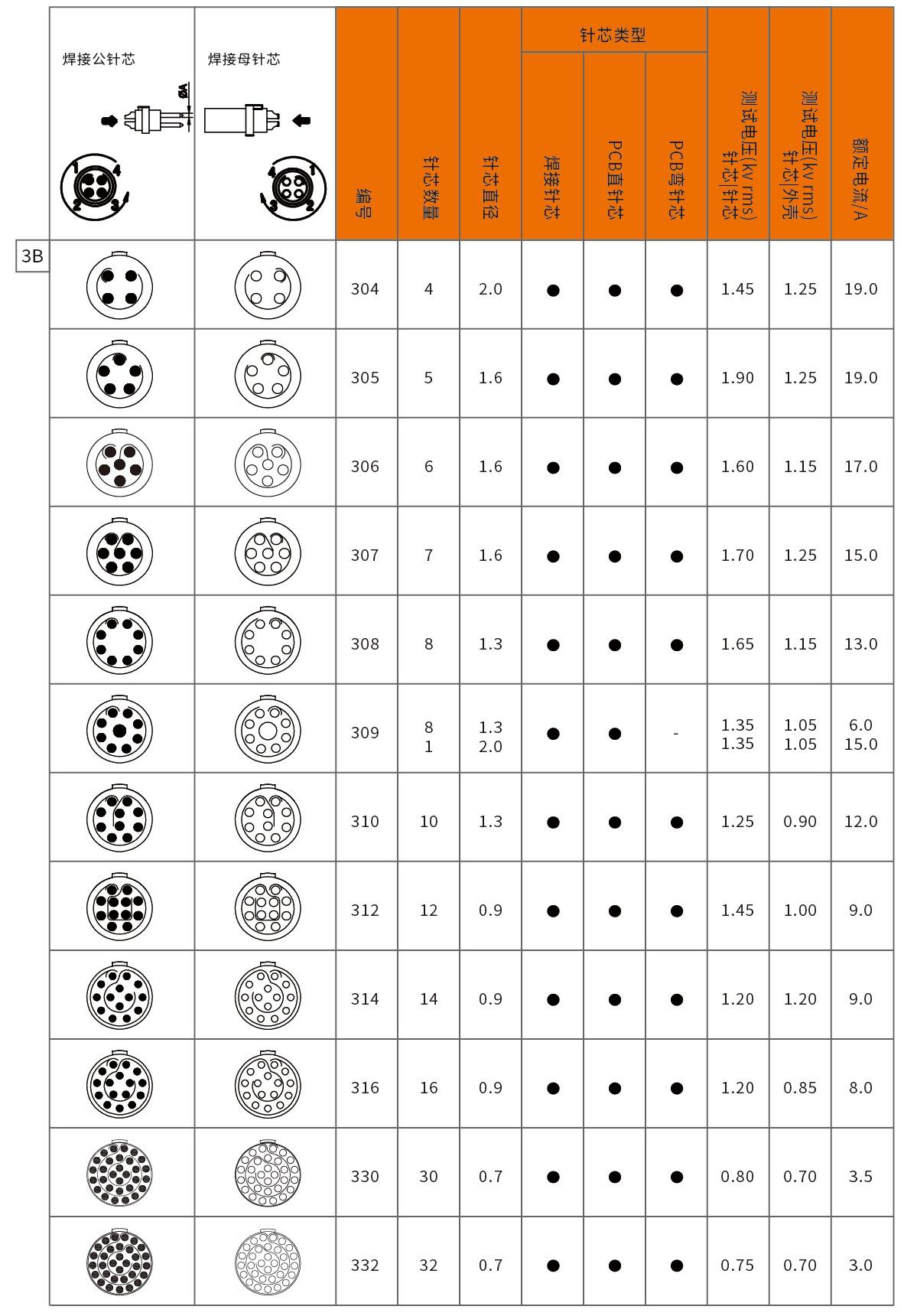

| Rated current | 19.0, 17.0, 15.0, 13.0, 6.0, 12.0, 9.0, 8.0, 3.5, 3.0 |
