ECM Series Connectors
The ECM series connectors are designed for high-performance applications, offering excellent durability, environmental resistance, and reliable electrical conductivity.
Save to Favorites
Overview
Specifications

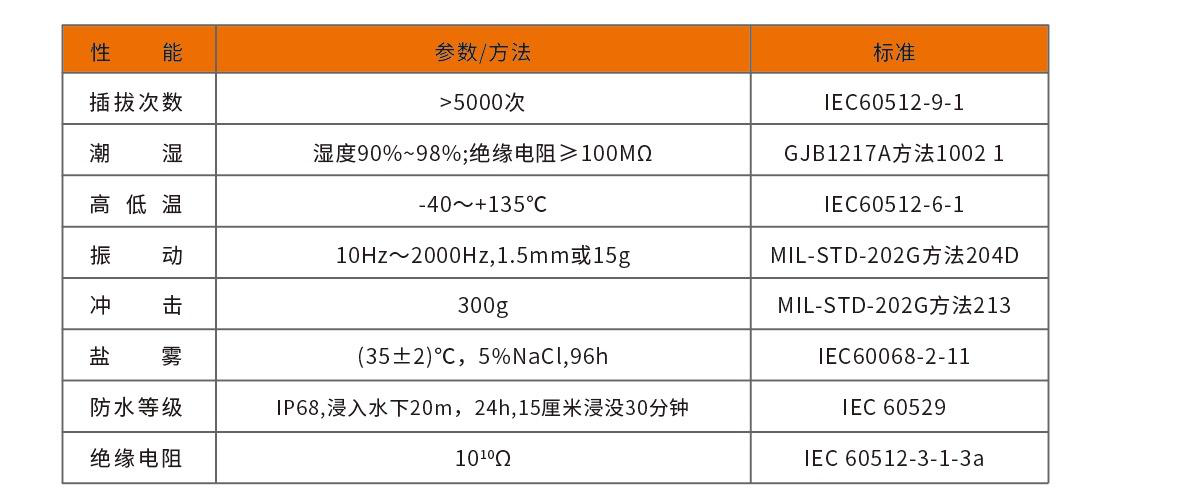

| Parameter | Value |
|---|---|
| Insertion Cycles | ＞5000次 |
| Humidity | 湿度90%~98%;绝缘电阻≥100MΩ |
| High and Low Temperature | -40~+135°C |
| Vibration | 10Hz~2000Hz,1.5mm或15g |
| Shock | 300g |
| Salt Spray | (35±2)°C,5%NaCl,96h |
| Waterproof Level | IP68,浸入水下20m,24h,15厘米深浸没30分钟 |
| Insulation Resistance | 10^10Ω |

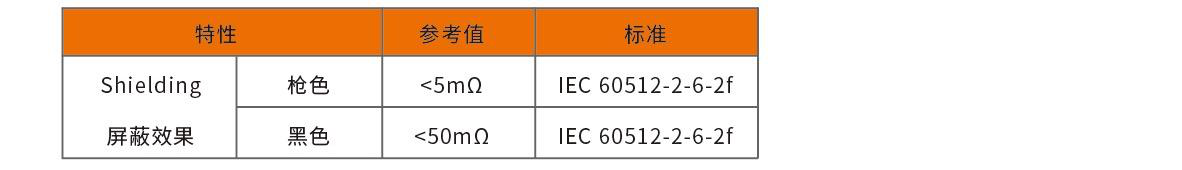

| Shielding Effect | ＜5mΩ |
| Shielding Effect (Black) | ＜50mΩ |

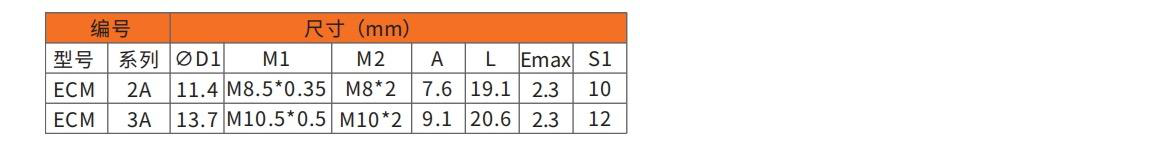

| Model ECM 2A OD1 | 11.4 |
| Model ECM 2A M1 | M8.5*0.35 |
| Model ECM 2A M2 | M8*2 |
| Model ECM 2A A | 7.6 |
| Model ECM 2A L | 19.1 |
| Model ECM 2A Emax | 2.3 |
| Model ECM 2A S1 | 10 |
| Model ECM 3A OD1 | 13.7 |
| Model ECM 3A M1 | M10.5*0.5 |
| Model ECM 3A M2 | M10*2 |
| Model ECM 3A A | 9.1 |
| Model ECM 3A L | 20.6 |
| Model ECM 3A Emax | 2.3 |
| Model ECM 3A S1 | 12 |

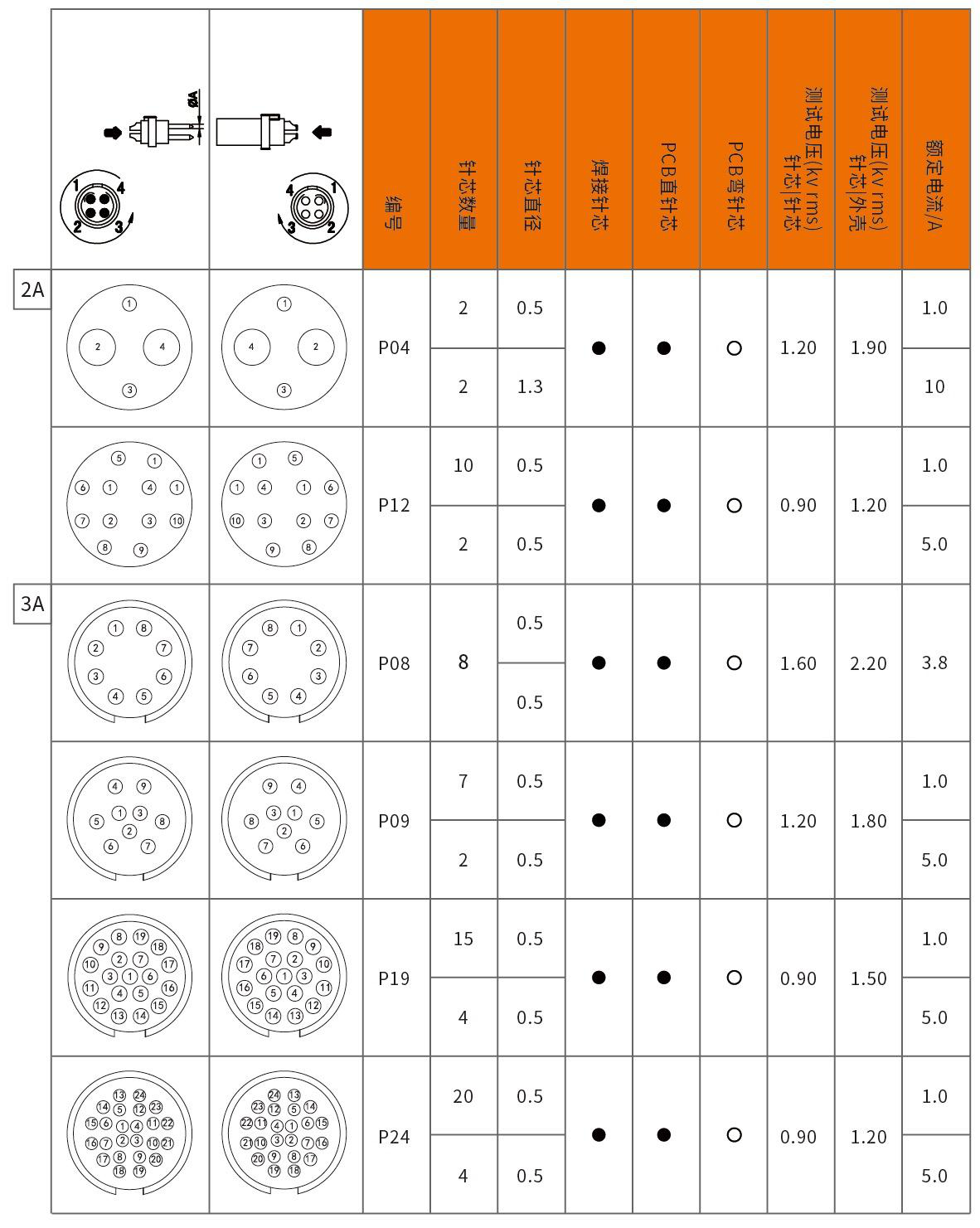

| Pin Count ECM 2A P04 | 2 |
| Pin Count ECM 2A P12 | 10 |
| Pin Count ECM 3A P08 | 8 |
| Pin Count ECM 3A P09 | 7 |
| Pin Count ECM 3A P19 | 15 |
| Pin Count ECM 3A P24 | 20 |
| Rated Current ECM 2A P04 | 1.0 |
| Rated Current ECM 2A P12 | 1.0 |
| Rated Current ECM 3A P08 | 3.8 |
| Rated Current ECM 3A P09 | 1.0 |
| Rated Current ECM 3A P19 | 1.0 |
| Rated Current ECM 3A P24 | 1.0 |
