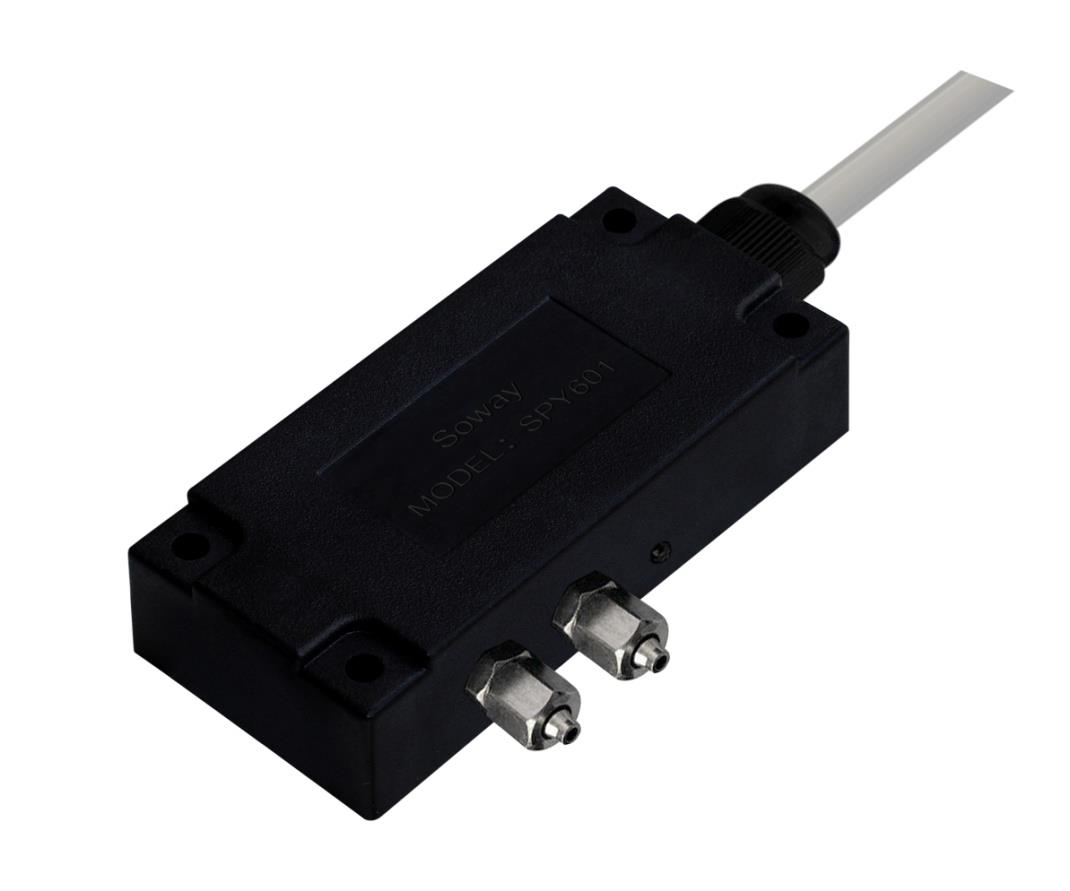

SPY601 Series Micro Differential Pressure Sensor
The SPY601 series micro differential pressure sensor is designed for precise measurement and control of differential pressure in various applications. It features compact dimensions, high accuracy, and reliable communication protocols.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

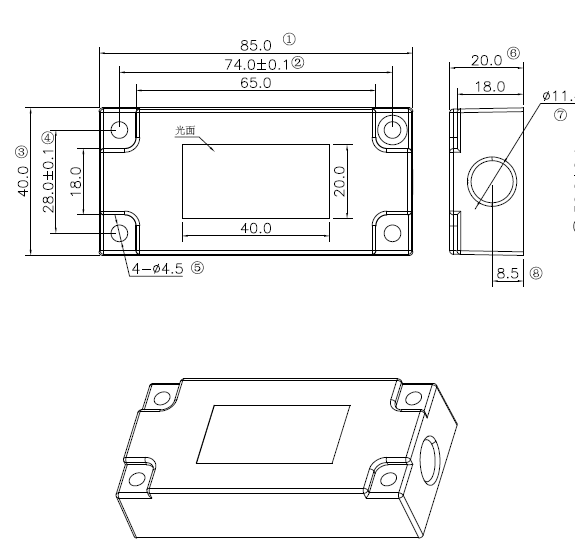

| Housing Dimensions | 85mm*40mm*20mm |
| Measurement Accuracy | ±3%FS |
| Protocol | Modbus |
| Current Output | 4mA~20mA |
| Power Supply | 24V |
| Connection Port | RJ45 |
| Data Format | Custom format for pressure and temperature data |
| LED Status Indicator | Green (Power), Red (Error) |
Applications
Key Features
Datasheet
