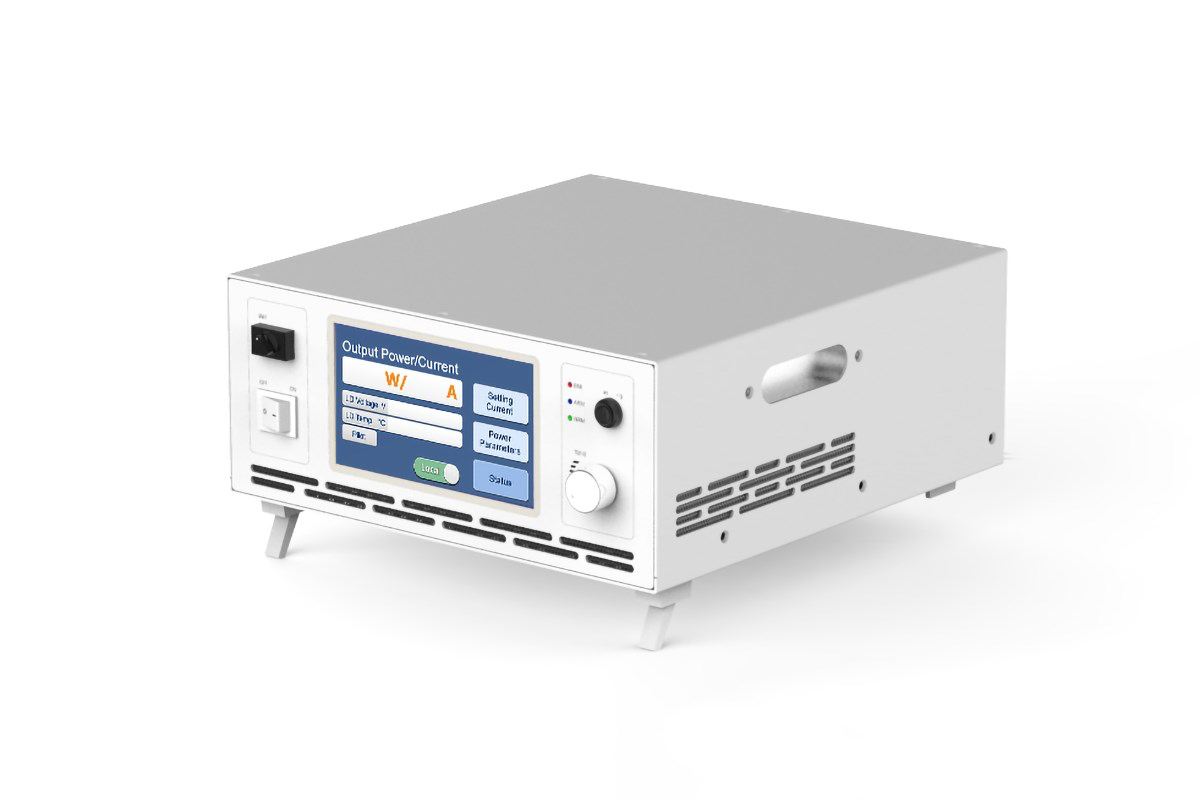

Flux S Series
Flux S Series is an industrial laser system designed for material processing, offering high efficiency, compact size, and long product life.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Product Code FLX000011 | FL-Flux-S150SA-915-F200-5 |
| Product Code FLX000012 | FL-Flux-S150SA-976-F200-5 |

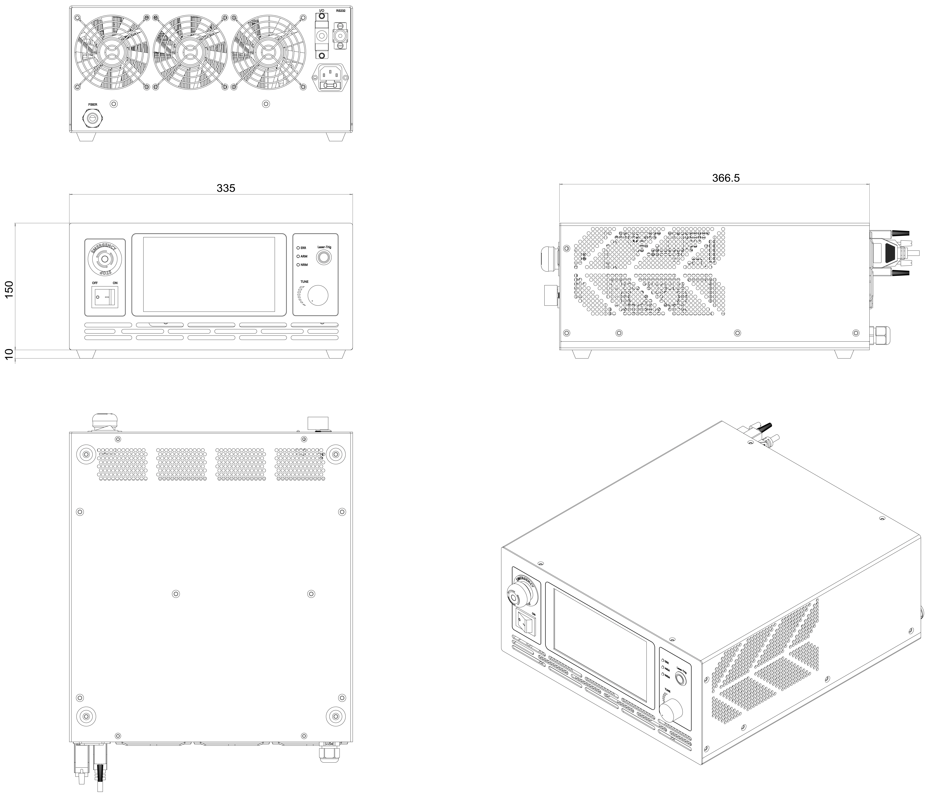

| Dimensions (height×width×depth) | 160×335×366.5mm |
| Max. Weight | ≤25kg |
| Wavelength FLX000011 | 915nm |
| Wavelength FLX000012 | 976nm |
| Wavelength Tolerance | ±10nm |
| Optical Efficiency | ≥45% |
| Red Light Power | 10mW |
| Fiber Diameter | 200μm |
| Fiber Length | 5m |
| Fiber Winding Diameter | ≥40mm |
| Operating Mode | CW/QCW |
| Modulation Frequency | ≤20kHz |
| Operating Voltage | 220-240VACVAC |
| Operating Frequency | 50Hz |
| Rise/Fall Time | ≤20μs |
| Response Time | ≤10μs |
| Control Mode | Via Touch Screen |
| Max. Power Consumption | ≤500W |
| Operating Temperature | 5-40°C |
| Operating Humidity | 10-80%rh |
| Chiller Type | Air |
