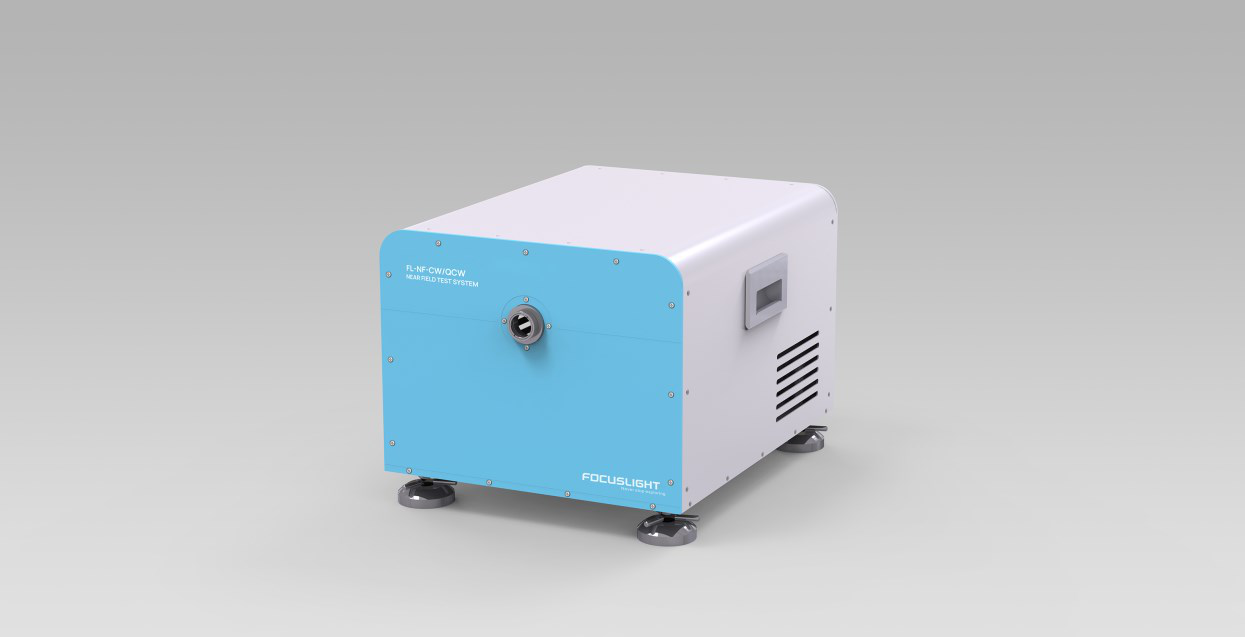

FocusTestTM Series Near Field Test System
FocusTest™ Series Near Field Test System is designed for assessing the reliability of single bar-based LDs and analyzing relative intensity distribution for each emitter.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

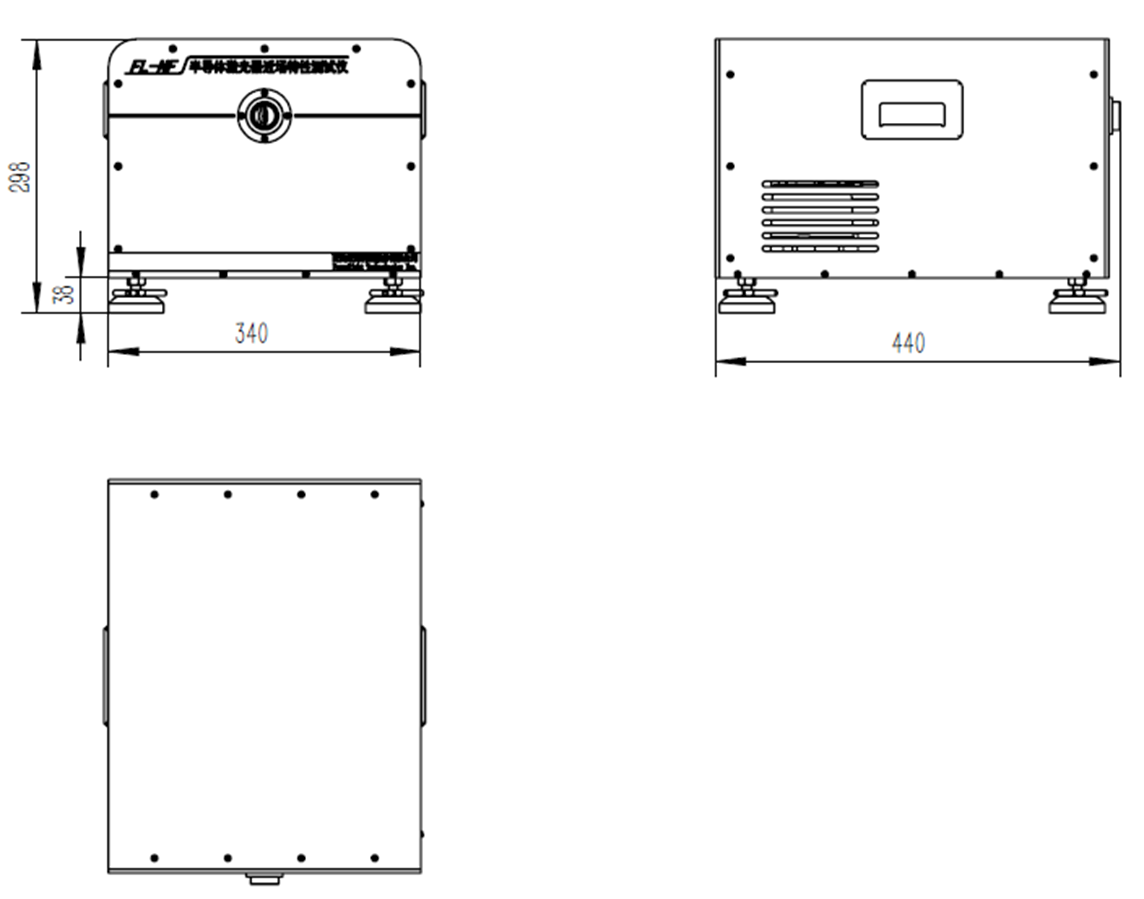

| Dimensions (Width×Depth×Height) | 340×440×300mm |
| Field of View | ≤11mm |
| Max. Number of Emitters | 62 |
| Testing Power Source (CW) | ≤50A |
| Temperature Control Range (Optional) | 15~80°C |
| Temperature Control Accuracy | ±0.2°C |
| Chiller Range (Optional) | 15~30°C |
| Cooling Water Pressure | 3.5bar |
| Chiller Accuracy | ±1°C |
| Computer | IPC |
| System Software Functions | Control power source, automatic testing; Automatically generate profiles and reports |
| Computer Interface | USB2.0 RS232 |
| Power Supply | AC220V/50Hz |
