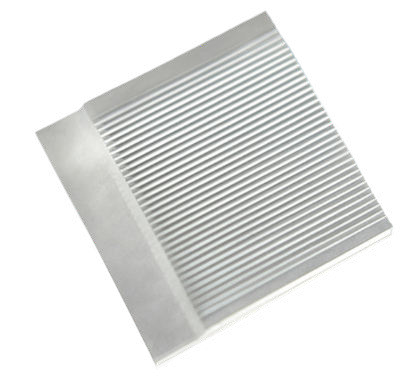

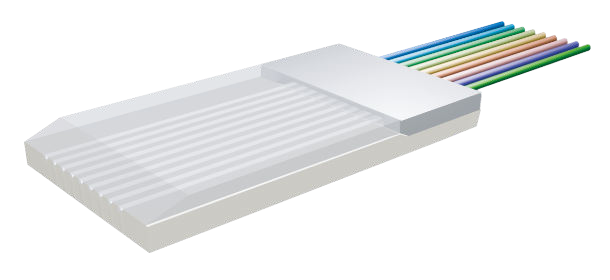

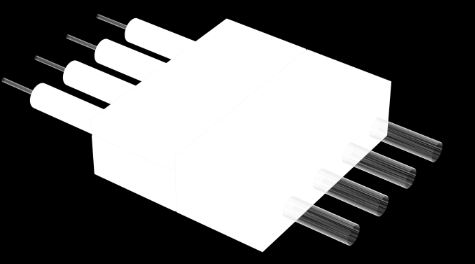

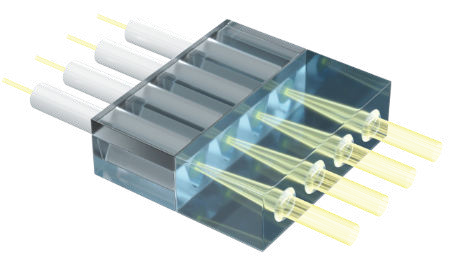

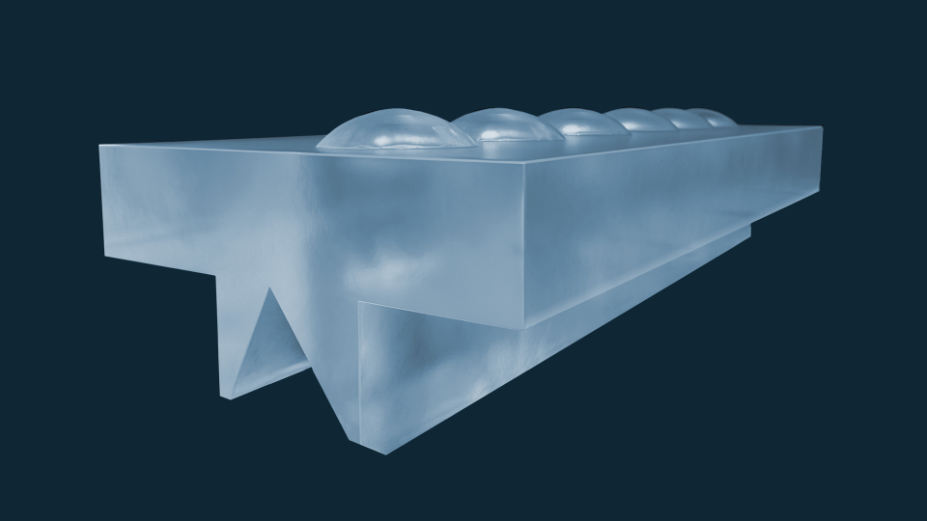

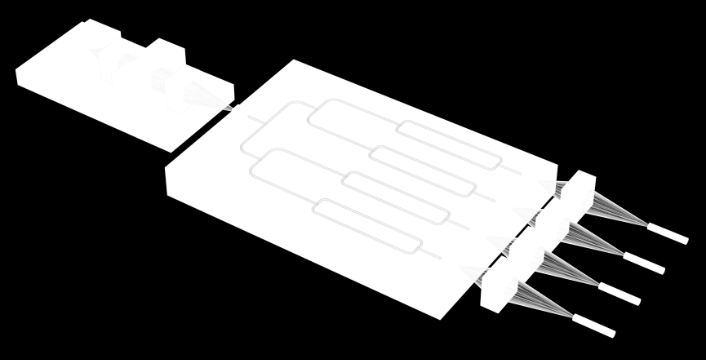

Engineered V-Groove Arrays

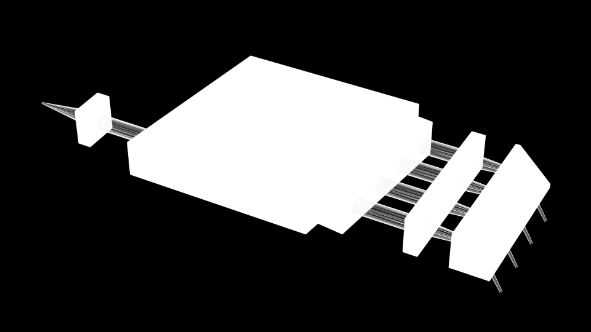

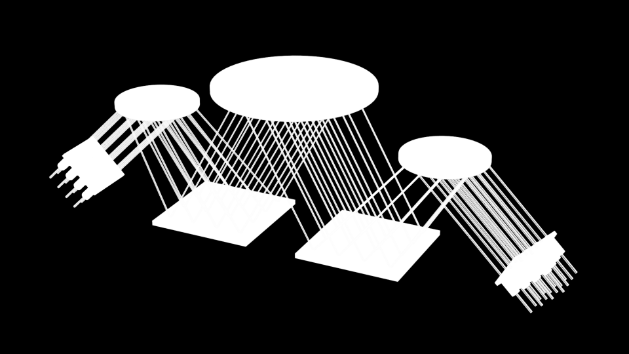

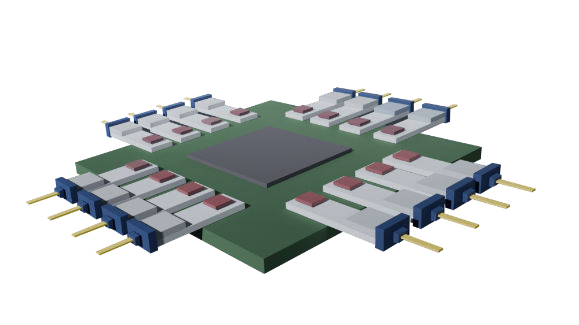

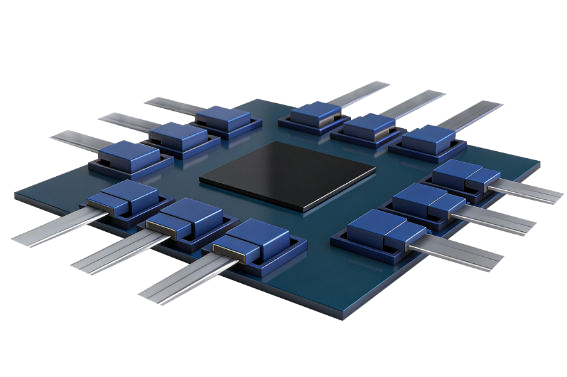

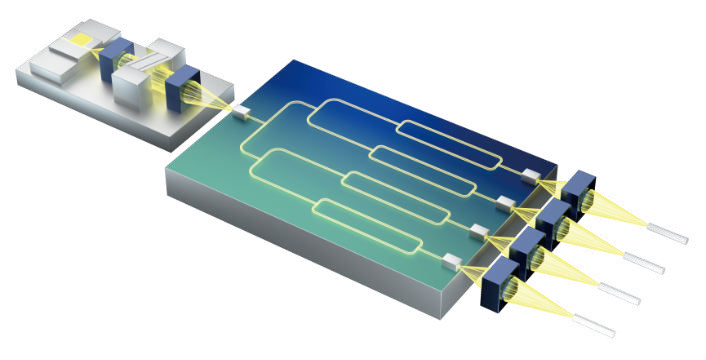

Engineered V-Groove Arrays deliver precise fiber positioning for multi-channel photonic systems, ensuring consistent accuracy and high-volume production.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Ideal Positioning Accuracy (X/Y Directions, by means of inlayed fiber core mid-point) 标准精度版本 | X≤500nm, Y≤750nm |
| Ideal Positioning Accuracy (X/Y Directions, by means of inlayed fiber core mid-point) 高精度版本 | X≤250nm, Y≤350nm |
| Pitch (Spacing) Accuracy, Fiber-to-Fiber | ≤500nm |
| Accumulative Pitch (Spacing) Accuracy, First-to-Last 标准精度版本 | <1000nm |
| Accumulative Pitch (Spacing) Accuracy, First-to-Last 高精度版本 | <500nm |
| Line Straightness 标准精度版本 | <1500nm |
| Line Straightness 高精度版本 | <700nm |
| Sidewall Verticality | 90°±0.3° |
| V-Groove Angle | 60°/90° standard, or customizable |
| Pitch (Spacing) Fiber to Fiber in X Direction | 0.127mm, 0.250mm or customized |
| Number of Channels | 8, 16, 32, 48, 96, 128, or customized |
| Surface Roughness (Ra) | <0.02μm |
| Material Options | Borofloat 33, Fused Silica, S-TIH53, S-BSL7, and equivalent such as N-BK7 |
