Microlens Array 18-00135

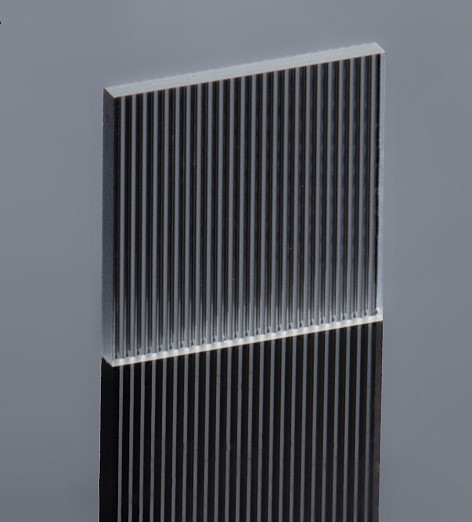

Microlens array with cylindrical lenses on one side, capable of generating top hat profiles with high homogeneity in one dimension.
Save to Favorites
Overview
Specifications

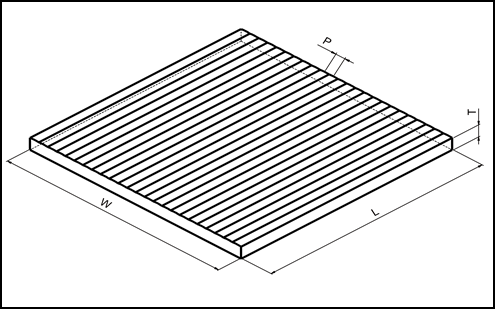

| Parameter | Value |
|---|---|
| Length (L) | 10±0.05mm |
| Width (W) | 10±0.05mm |
| Center Thickness (T) | 1.2±0.01mm |
| Lens Radius of Curvature | 3.6mm |
| ROC Tolerance Within Lens Array | 5% |
| ROC Tolerance Between Parts | 5% |
| EFL | - |
| No Anti-Reflective Coating | FS_Cyl_P0.3_R3.6_t1.2_1_001 |
Applications
Key Features
Datasheet
Supplier Information
Related Products
-
Optical Integrator Rod with Custom Precision for Advanced Projection
Beam Shapers
Risingeo
Integrator rods utilize total internal reflection (TIR) to transmit light from the entrance to the exit of the light pipe;
-

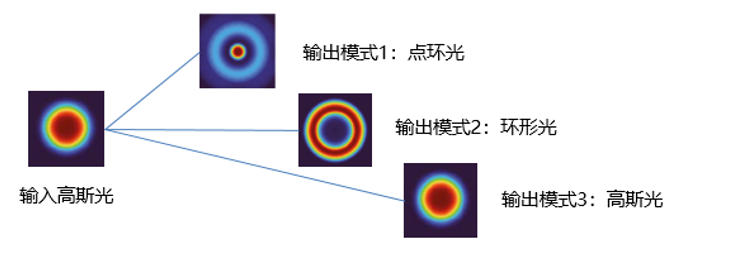

Dual-mode dynamic beam spot shaping head
Beam Shapers
Wave-optics
Wavelength band: 1064 nm customizable Beam spot form: Gaussian beam/ring beam switching, beam combining, large spot/small spot switching, customizable Laser limitations: Power <1000w continuous laser
-

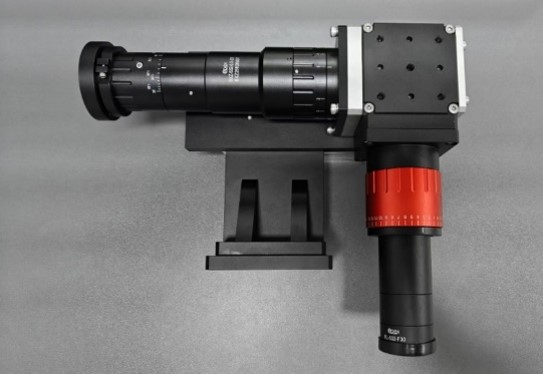

Adjustable ring spot system
Beam Shapers
Wave-optics
Wavelength: 532 nm (customizable) Laser output spot diameter: 6 mm Beam expander magnification: 0.5X-2X
-

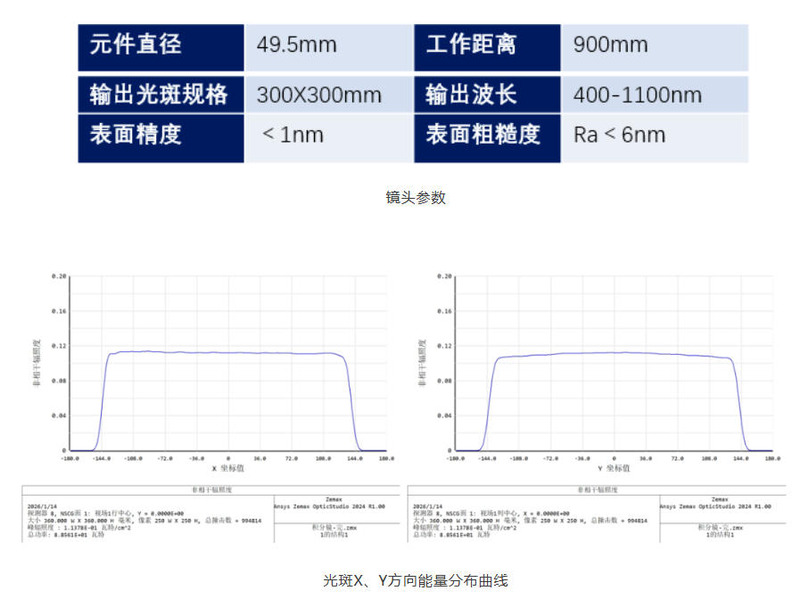

Integrator Mirror
Beam Shapers
Wave-optics
The Wavelength Opto-Electronic integrator mirror is a highly efficient optical homogenizing element. Its core adopts a free-form surface and, through the principles of beam splitting and superposition, converts a circular Gaussian beam into a uniform 300mm×300mm rectangular spot. It features stable homogenization and accurate spot formation, with a working distance of up to 900mm and a diameter of only 49.5mm, offering a compact structure that is easy to integrate. It is suitable for industrial inspection, experimental optics, and various other systems requiring uniform illumination, and is a reliable accessory for improving optical performance.
-

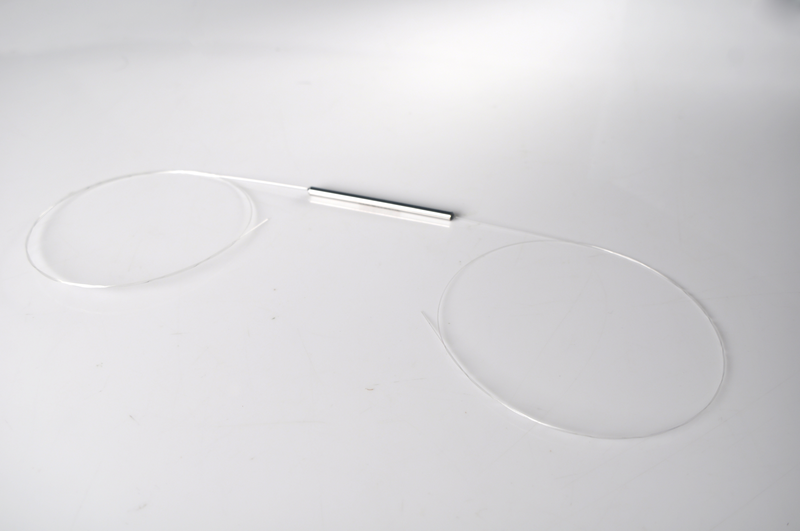

Mode matcher
