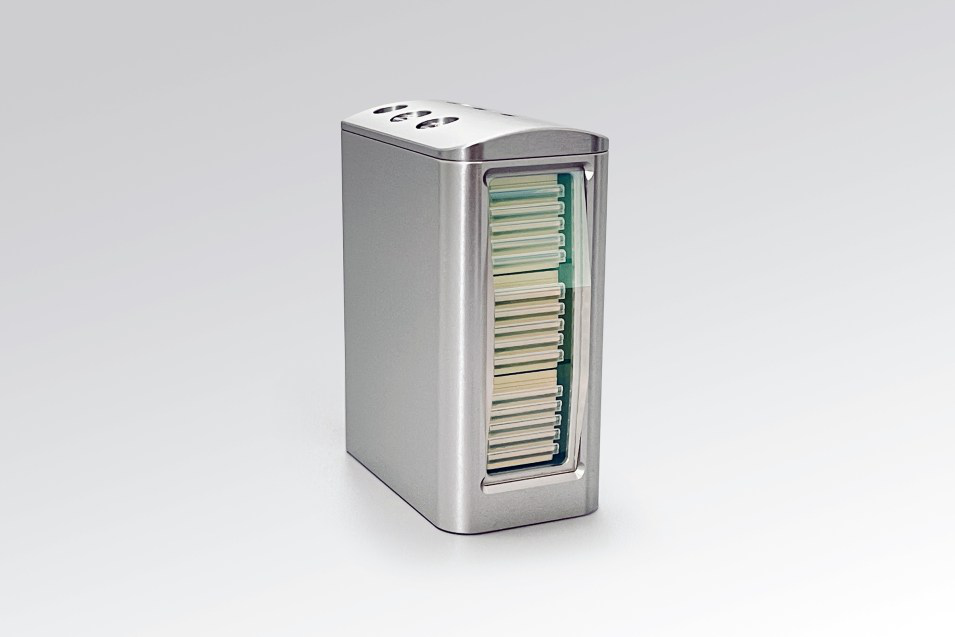

Vsilk 2 Pro-3000
The Vsilk 2 Pro-3000 is a conduction-cooled vertical stack diode laser designed for high-power applications, offering exceptional beam quality and reliability.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Centroid Wavelength | 808nm |
| Wavelength Tolerance | ±15nm |
| Output Power | 3000W |
| Number of Bars | 15 |
| Bar to Bar Pitch | 2.1mm |
| Fast Axis Divergence 95% | 5~7° |
| Slow Axis Divergence 95% | 12~14° |
| Spot Size | 12×36mm |
| Wavelength Temp. Coefficient | ~0.28nm/°C |
| Operation Current | ≤185A |
| Threshold Current | ≤30A |
| Operating Voltage | ≥30V |
| Slope Efficiency per Bar | ≥1.1W/A |
| Power Conversion Efficiency | ≥48% |
| Max. Pulse Width | 400ms |
| Max. Duty Cycle | 30% |
| Operating Temperature | 22~28°C |
| Coolant | Distilled water or pure water |
| Flow Rate | 3~4L/min |
Applications
Key Features
Datasheet
