High Power Fiber Coupled Diode Laser - MF Series

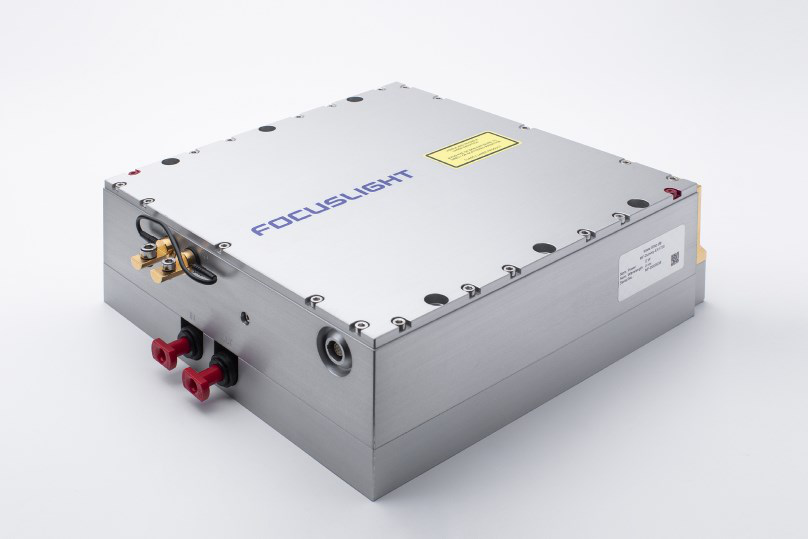

The MF Series high-power fiber-coupled diode laser features high brightness, high electro-optical efficiency, compact housing, hermetically sealed housing, water cooling, and plug-and-play fiber connectors.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| CW-nominal output power (W) FCS000018 | 200W |
| CW-nominal output power (W) FCS000017 | 350W |
| CW-nominal output power (W) FCS000022 | 400W |
| CW-nominal output power (W) FCS000023 | 500W |
| CW-nominal output power (W) FCS000020 | 250W |
| CW-nominal output power (W) FCS000019 | 400W |
| CW-nominal output power (W) FCS000021 | 400W |
| Centroid Wavelength (nm) | 980nm |
| Wavelength tolerance (±nm) | 10 |
| Wavelength Temp. drift (nm/°C) | ~0.34 |
| Wavelength stabilization | Yes |
| Nominal diode heat sink Temp. (°C) | 25°C |
| Diode heat sink operation Temp. (°C) | +15...+30 |
| Minimum heat sink capacity (W) FCS000018 | 480W |
| Minimum heat sink capacity (W) FCS000017 | 800W |
| Minimum heat sink capacity (W) FCS000022 | 1000W |
| Minimum heat sink capacity (W) FCS000023 | 1230W |
| Minimum heat sink capacity (W) FCS000020 | 590W |
| Minimum heat sink capacity (W) FCS000019 | 1000W |
| Minimum heat sink capacity (W) FCS000021 | 1000W |
| Chiller flow capacity (L/min) | 5L/min |
| Water pressure (bar) | 4bar |
| Max. operation current start of life (A) FCS000018 | ≤62A |
| Max. operation current start of life (A) FCS000017 | ≤67A |
| Max. operation current start of life (A) FCS000022 | ≤80A |
| Max. operation current start of life (A) FCS000023 | ≤80A |
| Max. operation current start of life (A) FCS000020 | ≤65A |
| Max. operation current start of life (A) FCS000019 | ≤65A |
| Max. operation current start of life (A) FCS000021 | ≤65A |
| Max. operation current end of life (A) FCS000018 | ≤75A |
| Max. operation current end of life (A) FCS000017 | ≤80A |
| Max. operation current end of life (A) FCS000022 | ≤96A |
| Max. operation current end of life (A) FCS000023 | ≤96A |
| Max. operation current end of life (A) FCS000020 | ≤78A |
| Max. operation current end of life (A) FCS000019 | ≤78A |
| Max. operation current end of life (A) FCS000021 | ≤78A |
| Typical threshold current (A) | ≤6A |
| Typical operation voltage (V) | ≤20V |
| Typical slope (W/A) FCS000018 | ≥3.8W/A |
| Typical slope (W/A) FCS000017 | ≥6.4W/A |
| Typical slope (W/A) FCS000022 | ≥6.5W/A |
| Typical slope (W/A) FCS000023 | ≥8.1W/A |
| Typical slope (W/A) FCS000020 | ≥4.8W/A |
| Typical slope (W/A) FCS000019 | ≥3.7W/A |
| Typical slope (W/A) FCS000021 | ≥3.7W/A |
| Typical E/O efficiency (%) | ≥39% |
| Fiber core diameter (μm) | 400μm |
| Fiber optic connector | LD80 |

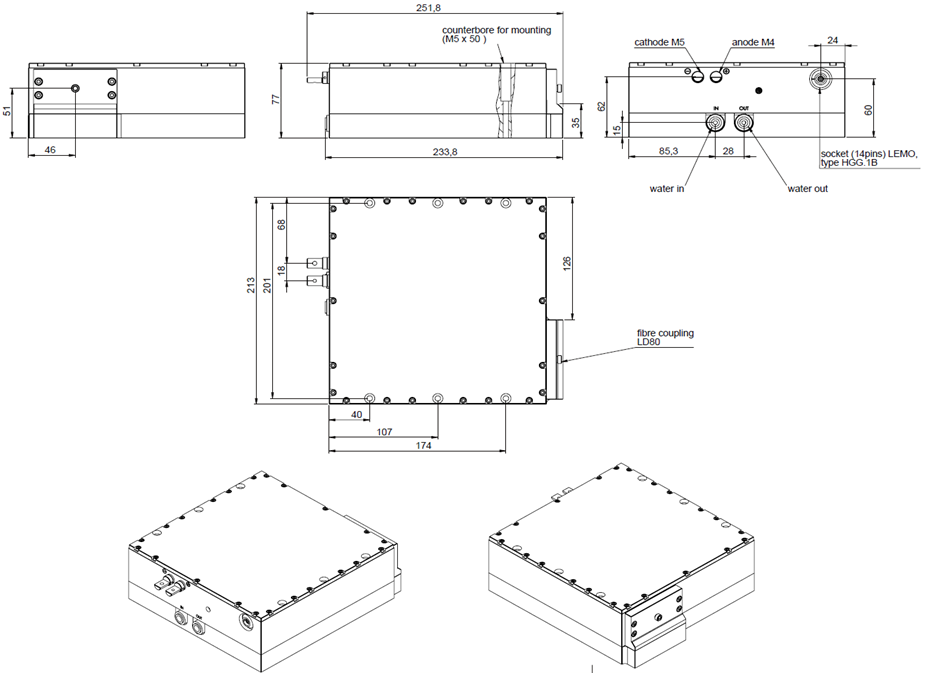

| Dimensions (mm³) | 251.8×213×77 |
| Weight basic package (kg) | 7kg |
| Storage Temp. (°C) | -20...+60 |
| Temp. sensors | NTC & Pt100 |
| Monitor diode (driver: 5V) | Output signal: 0...2.25V |
| High reflection bandwidth (>99% S&P polarized nm) | 1030...1130 |
| Fiber | non AR coated, 400μm |
| Diode heat sink Temp. (°C) | 25°C |
