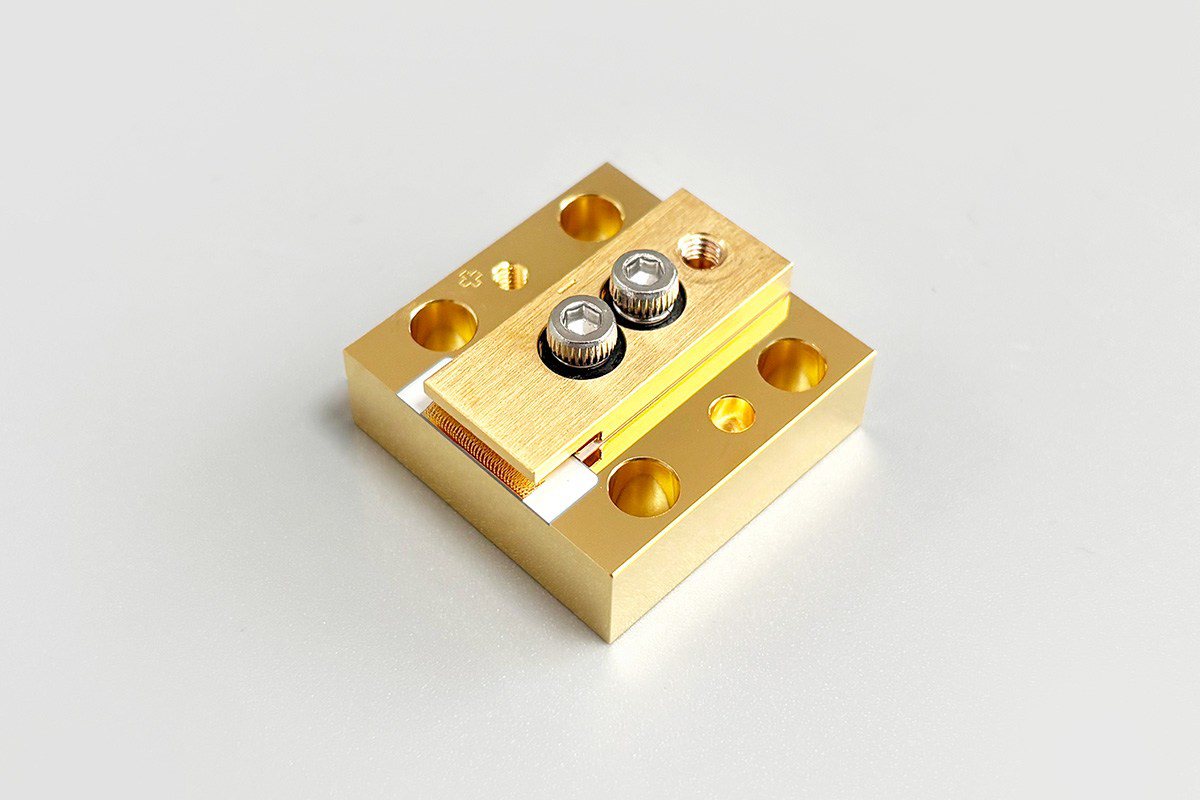

Conduction Cooled Single Bar Diode Laser (CW)
This conduction-cooled single bar diode laser is designed for high-performance applications in pumping, industry, printing, medical, and scientific research. It features IMC bonding, ultra-low smile, and suitability for harsh environments.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Centroid Wavelength (nm) FL-LCS-100-976 | 976nm |
| Centroid Wavelength (nm) FL-LCS-30-1470 | 1470nm |
| Wavelength Tolerance (nm) FL-LCS-100-976 | ±5nm |
| Wavelength Tolerance (nm) FL-LCS-30-1470 | ±15nm |
| Output Power (W) FL-LCS-100-976 | 100W |
| Output Power (W) FL-LCS-30-1470 | 30W |
| Emitter Size (μm) FL-LCS-100-976 | 100μm |
| Emitter Size (μm) FL-LCS-30-1470 | 100μm |
| Fill Factor (%) FL-LCS-100-976 | 20% |
| Fill Factor (%) FL-LCS-30-1470 | 20% |
| Spectral Width FWHM (nm) FL-LCS-100-976 | ≤4nm |
| Spectral Width FWHM (nm) FL-LCS-30-1470 | ≤9nm |
| Spectral Width 90% Energy (nm) FL-LCS-100-976 | ≤6nm |
| Spectral Width 90% Energy (nm) FL-LCS-30-1470 | ≤13nm |
| Fast Axis Divergence FWHM (°) FL-LCS-100-976 | ~35° |
| Fast Axis Divergence FWHM (°) FL-LCS-30-1470 | ~35° |
| Slow Axis Divergence FWHM (°) FL-LCS-100-976 | ~8° |
| Slow Axis Divergence FWHM (°) FL-LCS-30-1470 | ~7° |
| Polarization Mode FL-LCS-100-976 | TE |
| Polarization Mode FL-LCS-30-1470 | TE |
| Wavelength Temp. Coefficient (nm/°C) FL-LCS-100-976 | ~0.34 |
| Wavelength Temp. Coefficient (nm/°C) FL-LCS-30-1470 | ~0.63 |
| Operation Current (A) FL-LCS-100-976 | ≤100A |
| Operation Current (A) FL-LCS-30-1470 | ≤75A |
| Threshold Current (A) FL-LCS-100-976 | ≤10A |
| Threshold Current (A) FL-LCS-30-1470 | ≤10A |
| Operating Voltage/Bar (V) FL-LCS-100-976 | ≤2V |
| Operating Voltage/Bar (V) FL-LCS-30-1470 | ≤1.3V |
| Slope Efficiency/Bar (W/A) FL-LCS-100-976 | ≥1.1W/A |
| Slope Efficiency/Bar (W/A) FL-LCS-30-1470 | ≥0.45W/A |
| Power Conversion Efficiency (%) FL-LCS-100-976 | ≥60% |
| Power Conversion Efficiency (%) FL-LCS-30-1470 | ≥33% |
| Operating Temperature (°C) FL-LCS-100-976 | 15–35 |
| Operating Temperature (°C) FL-LCS-30-1470 | 15–35 |
| Storage Temperature (°C) FL-LCS-100-976 | -40–55 |
| Storage Temperature (°C) FL-LCS-30-1470 | -40–55 |
| Recommended Heatsink Capacity (W) FL-LCS-100-976 | ≥130W |
| Recommended Heatsink Capacity (W) FL-LCS-30-1470 | ≥100W |
| Fast Axis Collimation FWHM (°) FL-LCS-100-976-Y | <0.5° |
