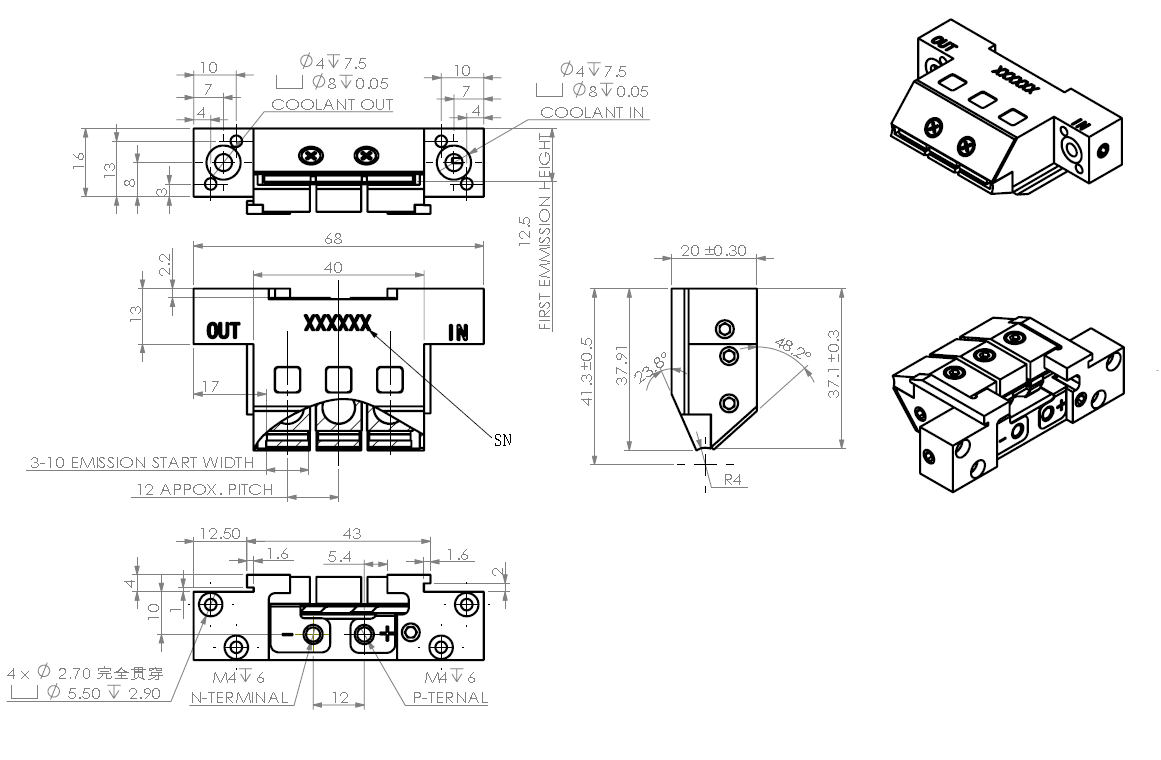

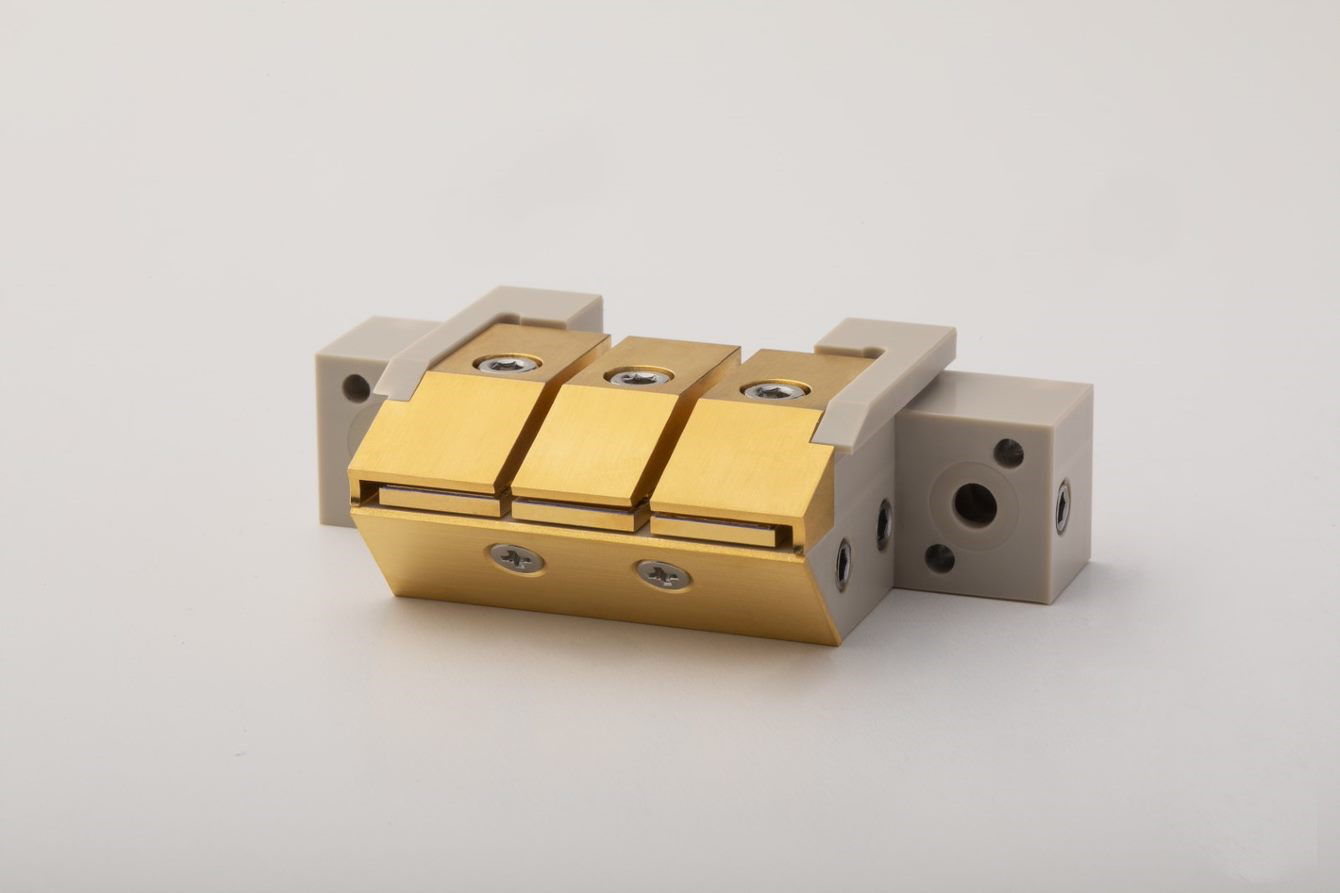

Micro-Channel Water Cooled Horizontal Array Diode Laser HA18
The HA18 is a high-performance micro-channel water-cooled horizontal array diode laser designed for applications requiring high power, long lifetime, and narrow spectrum.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operation Mode | CW |
| Centroid Wavelength (nm) | 808nm |
| Wavelength Tolerance (nm) | ±3nm |
| Output Power per Bar (W) | 50W |
| Number of Bars | 3 |
| Spectral Width FWHM (nm) | ≤4nm |
| Spectral Width 90% Energy (nm) | ≤6nm |
| Wavelength Temp. Coefficient (nm/°C) | ~0.28 |
| Operation Current (A) | ≤55A |
| Threshold Current (A) | ≤30A |
| Operating Voltage per Bar (V) | ≤2V |
| Slope Efficiency per Bar (W/A) | ≥1.1W/A |
| Operating Temperature (°C) | 20~30°C |
| Storage Temperature (°C) | 0~55°C |
