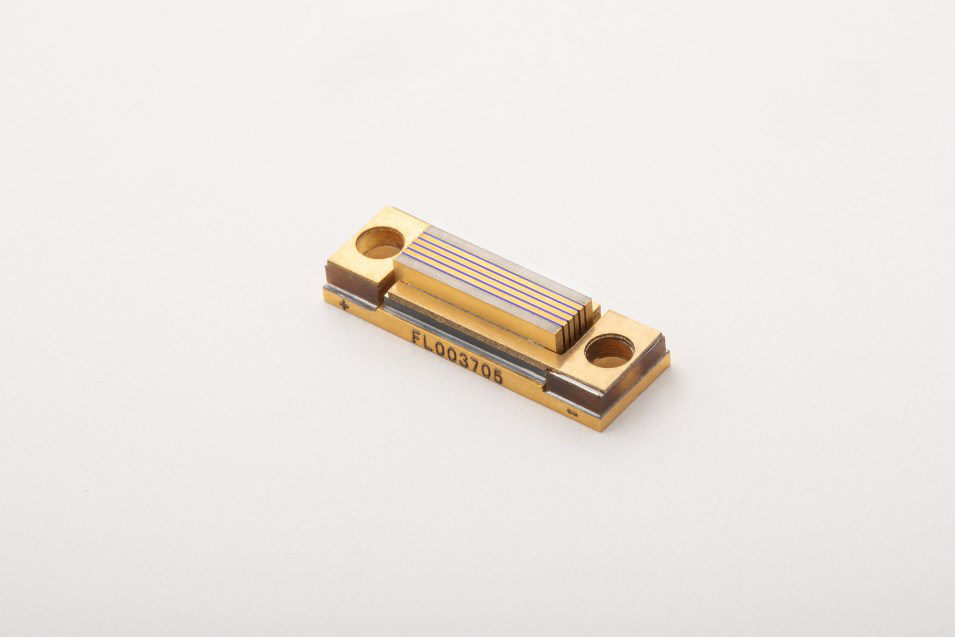

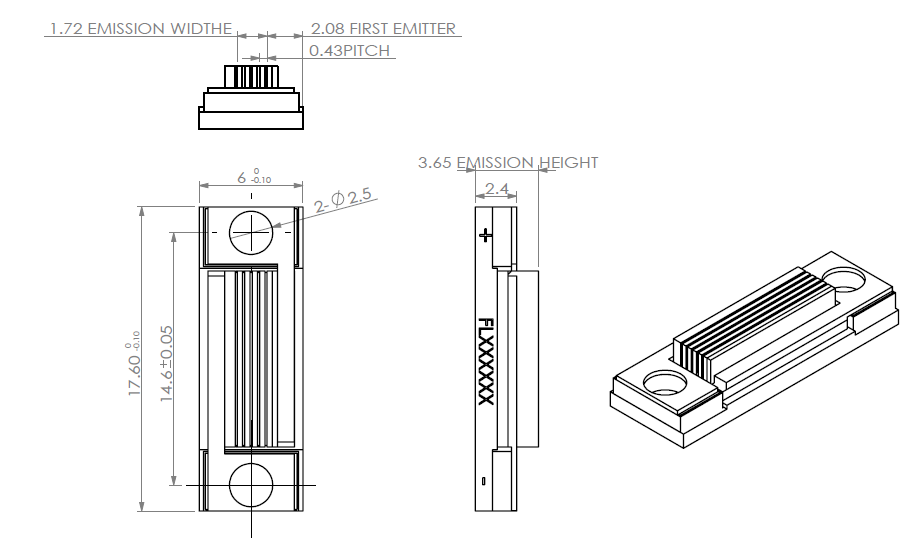

Conduction Cooled QCW Vertical Stack Diode Laser GS04 Series
The GS04 Series is a conduction-cooled QCW vertical stack diode laser designed for high reliability and compact size, suitable for demanding applications such as pumping, illumination, industry, and research.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operation Mode | QCW |
| Pulse Width (μs) | 250 |
| Duty Cycle (%) | 0.5 |
| Bar Pitch (mm) | 0.43 |
| Centroid Wavelength (nm) | 808 |
| Wavelength Tolerance (nm) | ±3 |
| Output Power per Bar (W) | 170 |
| Number of Bars | 5 |
| Spectral Width FWHM (nm) | ≤4 |
| Spectral Width 90% Energy (nm) | ≤6 |
| Fast Axis Divergence FWHM (°) | 35 (typical) |
| Slow Axis Divergence FWHM (°) | 8 (typical) |
| Polarization Mode | TE |
| Wavelength Temp. Coefficient (nm/°C) | ~0.28 |
| Operation Current (A) | ≤200 |
| Threshold Current (A) | ≤40 |
| Operating Voltage per Bar (V) | ≤2 |
| Slope Efficiency per Bar (W/A) | ≥1 |
| Power Conversion Efficiency (%) | ≥45 |
| Operating Temperature (°C) | -45~75 |
| Storage Temperature (°C) | -55~85 |
