1206 Red Light LED

1206 Red Light LED

Supplier
Tzled
Part Number
1206 Red Light LED
Category
Light-Emitting Diodes (LEDs)
Origin
China

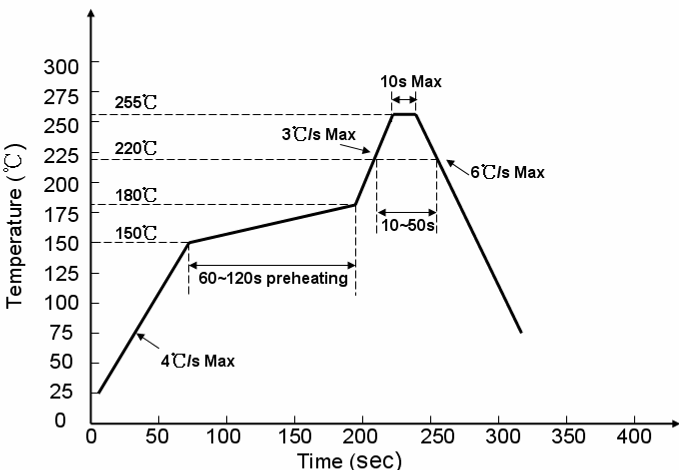

The 1206 Red Light LED features compact dimensions, eco-friendly design, and compliance with RoHS standards, making it suitable for infrared reflow soldering processes.

Specification Snapshot
Half Power View
120°
Power Dissipation
60mW
DC Forward Current
30mA
Dominant wavelength
620-625nm
Spectrum Radiation Bandwidth
18nm
Request a Quote Download Datasheet
Save to Favorites Save to Favorites

Overview

The 1206 Red Light LED features compact dimensions, eco-friendly design, and compliance with RoHS standards, making it suitable for infrared reflow soldering processes.

Specifications

ParameterValue

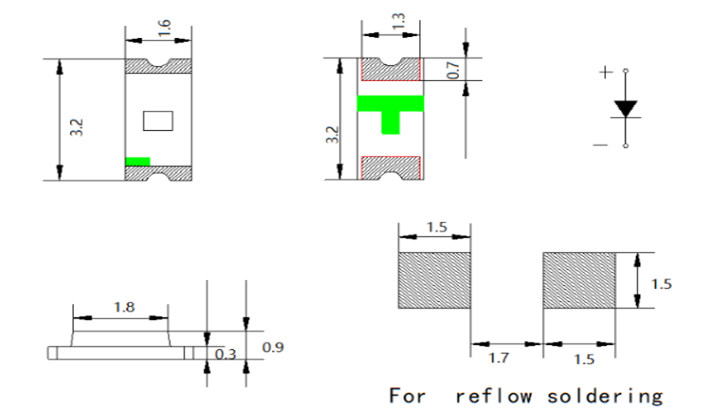

Appearance Dimensions3.2×1.6×0.9mm
Colloidal ColorWater Clear
Luminous ColorRed Light
Half Power View120°
Power Dissipation60mW
Max Pulse Current100mA
DC Forward Current30mA
Reverse breakdown Voltage5V
Electrostatic Discharge Threshold (HBM)2500V
Storage Temperature-40℃ to 85℃
Luminous Intensity120-250mcd
Dominant wavelength620-625nm
Spectrum Radiation Bandwidth18nm
Reverse Current10uA

Applications

1. Backlight 2. Lighting 3. Indicator light 4. Infrared applications systems 5. Others

Key Features

1. Compact size for versatile applications 2. Eco-friendly and RoHS compliant 3. High brightness and stable performance 4. Suitable for infrared reflow soldering

Datasheet

Product Datasheet
PDF
Download
