0805 Red Light LED

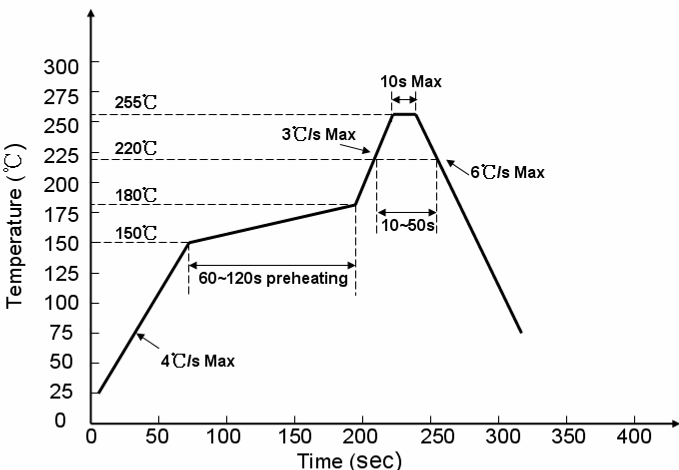

Compact 0805 red light LED with transparent colloidal color, eco-friendly design, and compliance with RoHS standards. Suitable for infrared reflow soldering processes.
Specification Snapshot
Half Power View
120°
Power Dissipation
60mW
DC Forward Current
30mA
Dominant wavelength
620~625nm
Spectrum Radiation Bandwidth
17nm
Request a Quote
Download Datasheet
Overview
Compact 0805 red light LED with transparent colloidal color, eco-friendly design, and compliance with RoHS standards. Suitable for infrared reflow soldering processes.
Specifications
| Parameter | Value |
|---|---|

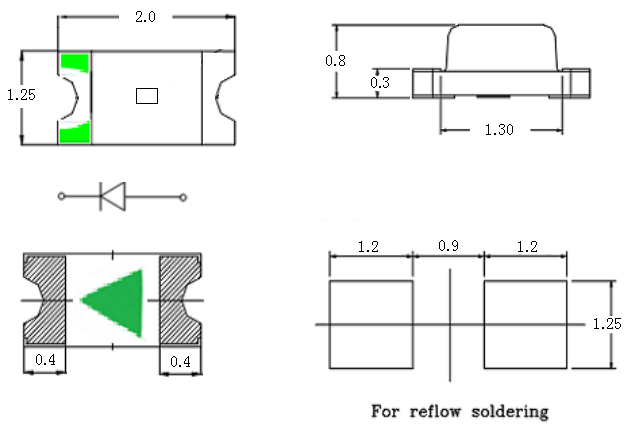

| Appearance Dimensions | 2.0*1.25*0.8mm |
| Colloidal Color | 透明water clear |
| Luminous Color | 红光Red light |
| Half Power View | 120° |
| Effective Date | 2021-05-18 |
| Power Dissipation | 60mW |
| Max Pulse Current | 100mA |
| DC Forward Current | 30mA |
| Reverse breakdown Voltage | 5V |
| Electrostatic Discharge Threshold (HBM) | 2500V |
| Operating Temperature | -40~85°C |

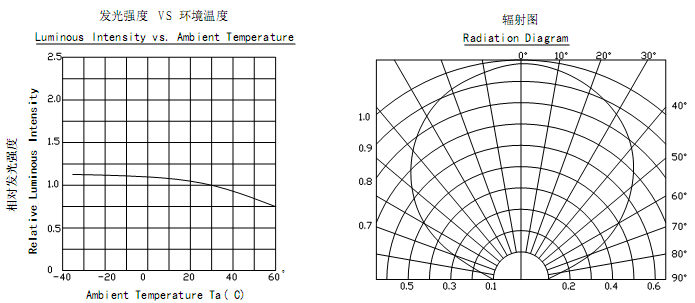

| Luminous Intensity | 100~200mcd |
| Dominant wavelength | 620~625nm |
| Spectrum Radiation Bandwidth | 17nm |
| Reverse Current | 10uA |
Applications
1. Backlight 2. Lighting 3. Indicator light 4. Infrared applications systems 5. Others
Key Features
1. Compact size for versatile applications 2. High brightness and efficiency 3. Eco-friendly and RoHS compliant 4. Suitable for automated soldering processes
Datasheet
Product Datasheet
PDF
