Photonics Source provides 639 products. Download datasheets, request quotes, and compare function, price, and availability.
-

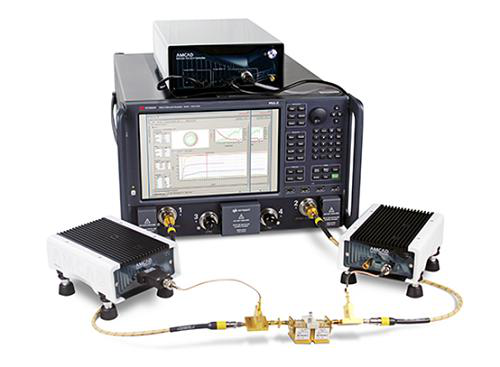

Network Analyzer System
Frequency Range: 10MHz-67GHz Dynamic Range: >120dB Output Power: -30dBm to +10dBm Number of Ports: 2 or 4 Measurement Speed: <10ms per point -

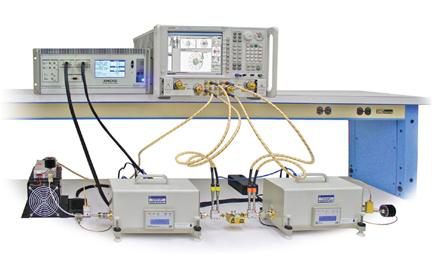

Unknown
Signal Generator Frequency Range: 10MHz-40GHz Optical Power Range: -60dBm to +10dBm Dynamic Range: >80dB Optical Module Wavelength Range: 1260nm-1650nm Spectrum Analyzer Resolution Bandwidth: 1Hz-10MHz -

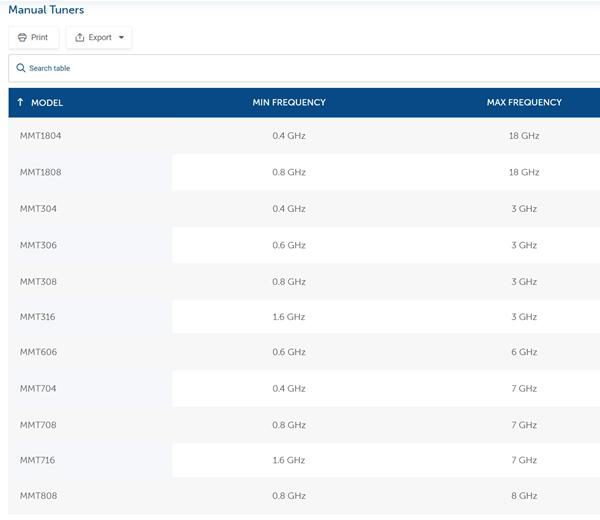

MMT Series Manual Microwave Tuners
Frequency Range (GHz) MMT304: 0.4-3.0 Frequency Range (GHz) MMT306: 0.6-3.0 Frequency Range (GHz) MMT308: 0.8-3.0 Frequency Range (GHz) MMT606: 0.6-6.0 Frequency Range (GHz) MMT704: 0.4-7.0 -
RAPID DT 0.001-18GHz Mesuro Digital Tuner | Active Load Pull
Frequency Range (GHz) CW: 0.001-18 Dynamic Range (dB) CW: 70 Average Power (dBm) CW: 27 Min. Width (ns) CW: 200 Dynamic Range (dB) Pulse: 55 -

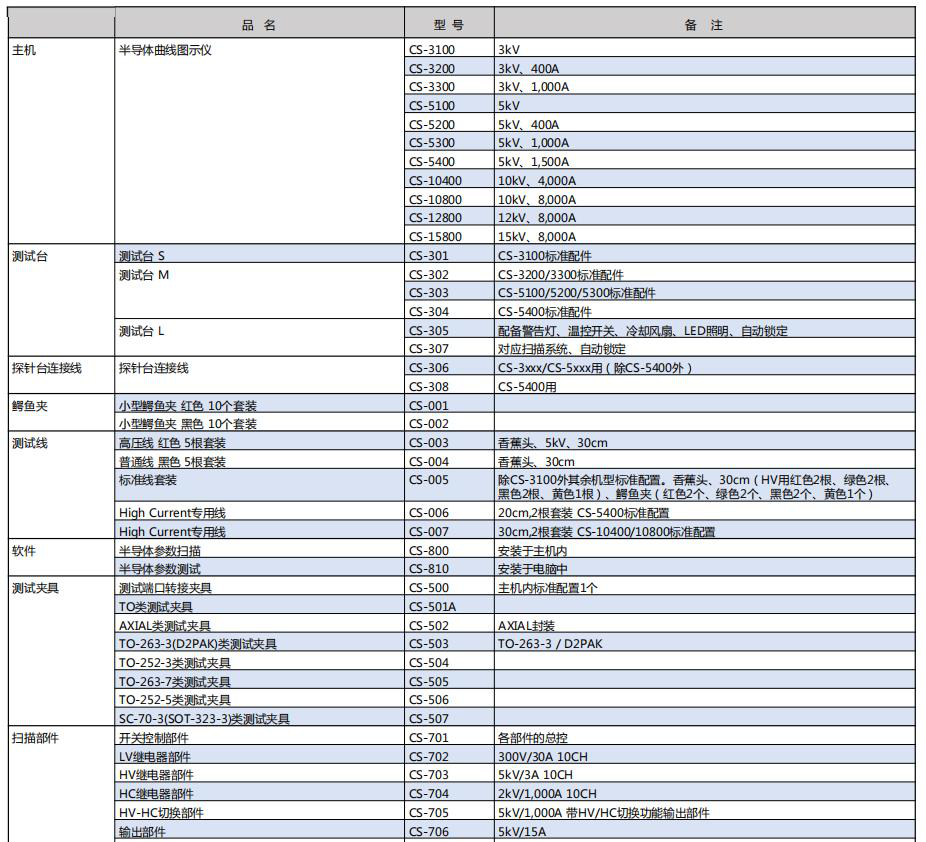

Semiconductor Curve Tracer CS Series
Maximum Peak Voltage: 3kV, 5kV, 10kV, 12kV, 15kV Maximum Peak Current: 400A, 1000A, 1500A, 8000A Voltage Waveform: DC/+, LEAKAGE/+, AC Current Mode: Pulse/+, HC mode Maximum Peak Power: 120mW/1.2W/120W/390W, 40W/400W/4kW, 32W/320W/3.2kW -

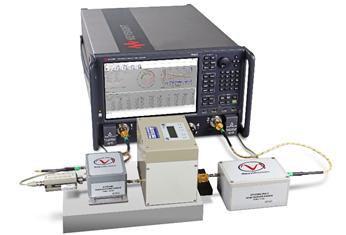

Load Pull System
Frequency Range: DC to 67GHz Power Range: Up to 100W Impedance Range: 10Ω to 1000Ω Dynamic Range: >100dB Measurement Accuracy: ±0.1dB -

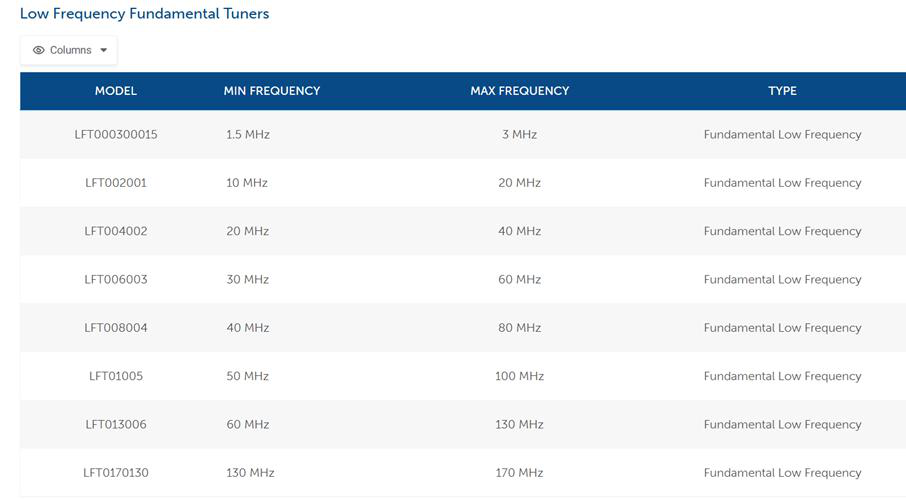

Low Frequency Tuner LFT Series
Frequency Range (MHz) LFT000300015: 1.5-3 Connector Type LFT000300015: 7/16 VSWR (minimum) LFT000300015: 10:1 Repeatability (min,dB/typical,dB) LFT000300015: -40/-50 Length (in) LFT000300015: 37.34 -
HED-W5000M-HV
Model: HED-W5000M-HV Waveform: HBM: Max 15kV, HMM (IEC 61000-4-2): Max 30kV, MM: 4kV Charging Voltage: 10 to +/-30kV Charging Resolution: 10V Charging Accuracy: 5% +/-5V -

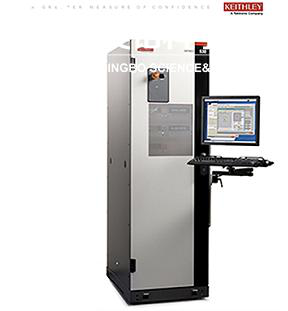

Series 540 Parametric Test System
Test Speed: High Measurement Accuracy: High precision Supported Device Types: Various semiconductor devices Operating System: Windows-based Display: Integrated monitor -
-

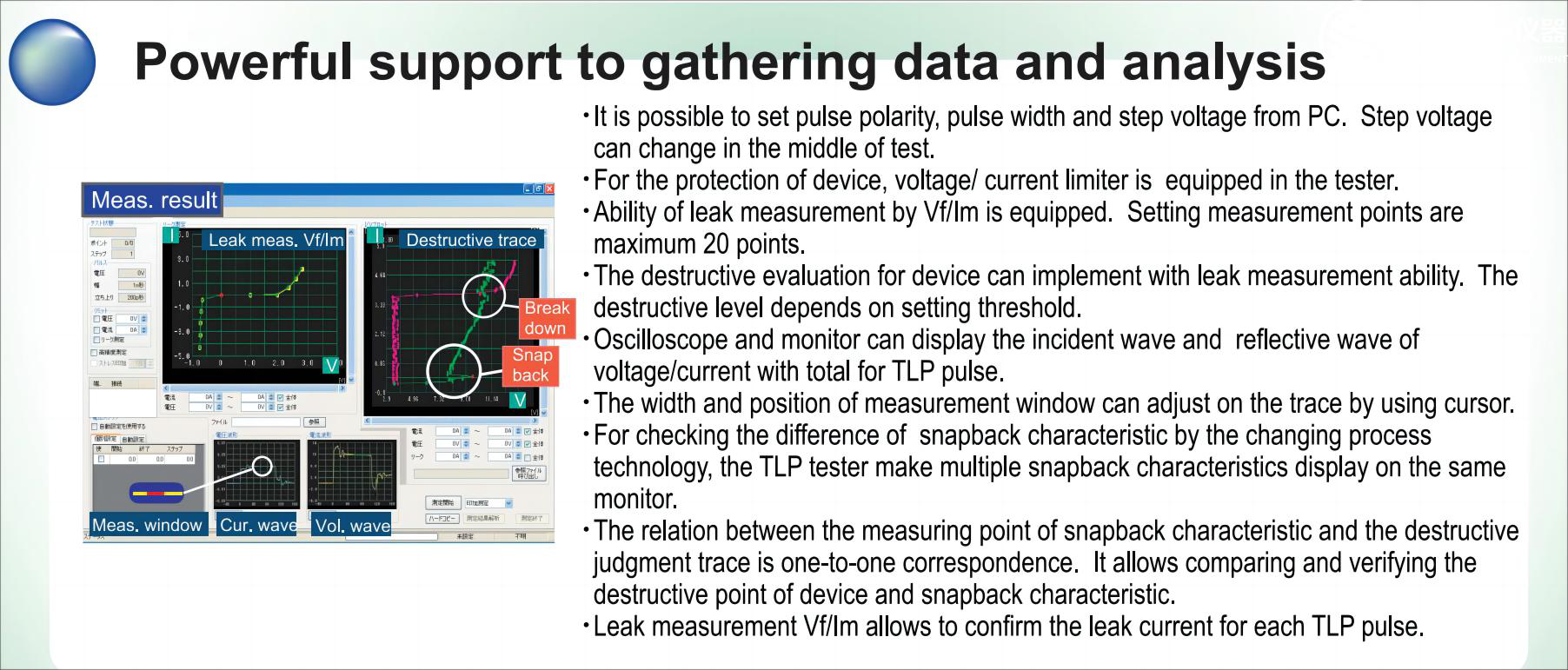

HED-T5000-HC
Tester Model: HED-T5000-HC TLP Test Model: TDR (Time Domain Reflection), TDT (Time Domain Transmission) ※Option Pulse Voltage: Open terminal volt.: +/-2000V (0.2V/step), 50Ω load: +/-1000V (0.1V/step) Pulse Current: Short: Max. 40A, 50Ω load: Max. 20A ※Option Short: Max. 60A Pulse Width: 100ns ※Option 200ns -

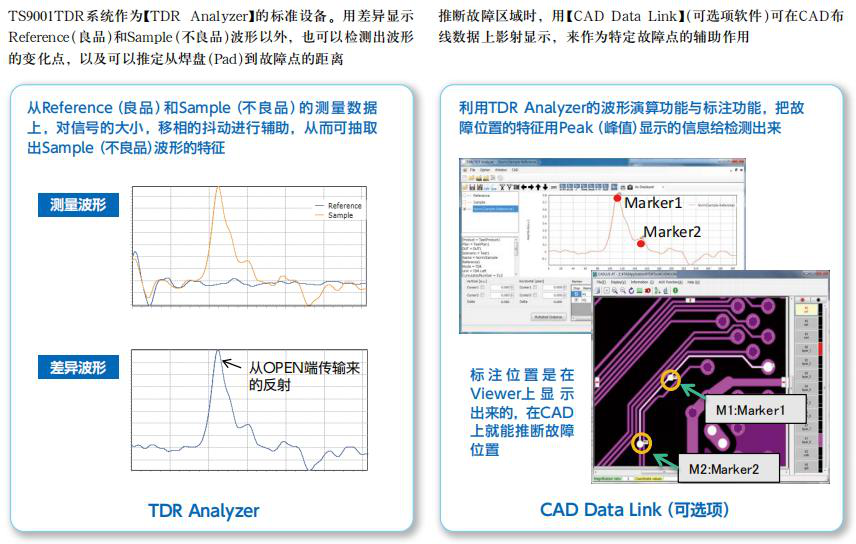

TS9001 TDR System
Fault Area Resolution: <5μm@0 to 800ps, <10μm@800 to 1500ps Fault Rise Time (Response Time): <12ps Maximum Measurement Range: 100mm relative to electrical length=5 Measurement Time: 30sec@1 temperature point (excluding automatic probe Touch Down, average of 1024 measurements) Software Options: TDR Analyzer (standard), CAD Data Link (optional), External Prober Control (optional) -

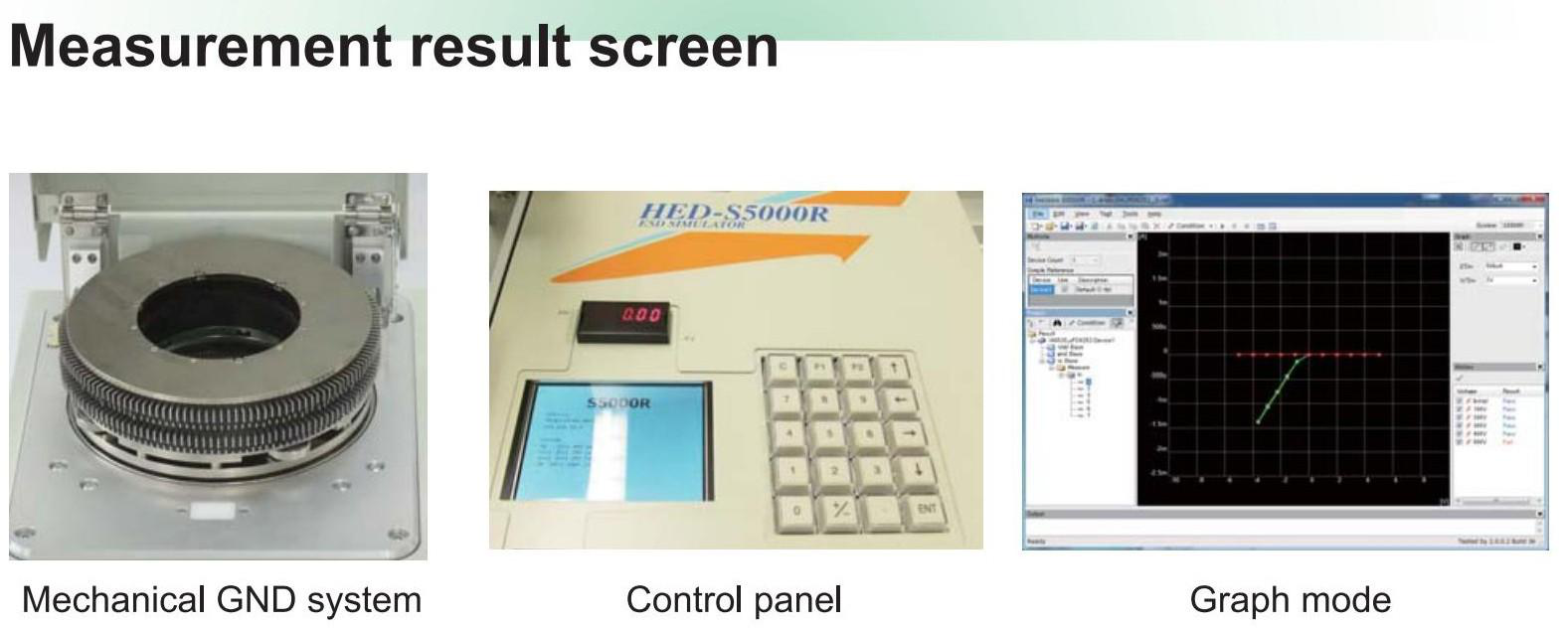

HED-S5000R ESD Simulator
Test Pins: MAX 256 pins Pulse Voltage HBM: ±10V to ±8000V Pulse Voltage MM, 10PF: ±10V to ±4000V Voltage Step: Min. 5V Zap Number: 1-99 times (Max 65535) -
Vector Network Analyzer ZNB
Frequency Range: 9kHz to 40GHz Dynamic Range: >140dB Output Power: -90dBm to +13dBm Measurement Speed: <5ms per point Number of Ports: 2 or 4 -
ZNA Vector Network Analyzer
Frequency Range: 10MHz-67GHz Dynamic Range: >100dB Number of Measurement Ports: 4 Output Power Range: -50dBm to +10dBm Display: 12.1-inch touchscreen -

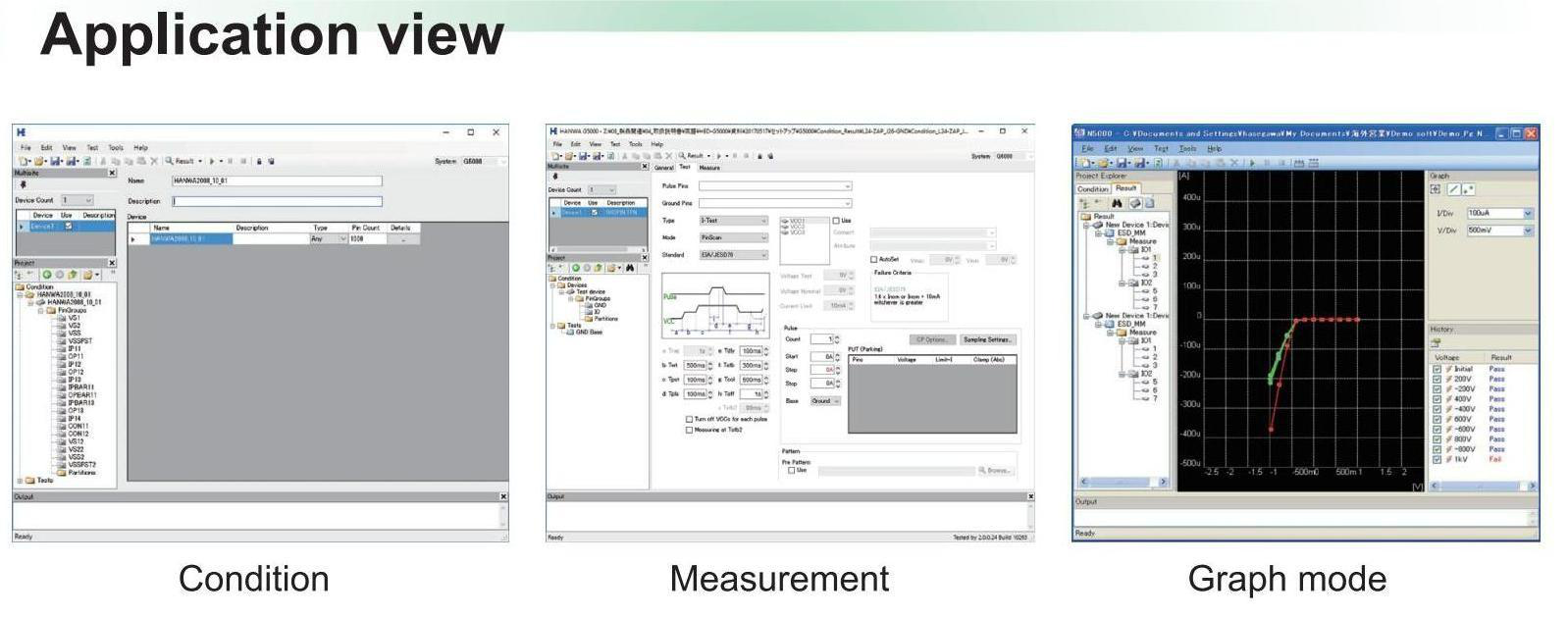

HED-G5000 Series
Design Base: Mechanical Matrix: No relay system Test Model: HBM, MM, & Latch Up Customize Available Test Level: HBM:10V to 8kV step 5V, MM:10V to 4kV step 5V, Latch Up:100V/1A, 35V/1A Latch Up: JESD78 with Vector Option -
PNA Network Analyzer
Frequency Range: 10MHz-67GHz Dynamic Range: >120dB Measurement Speed: <9μs per point Number of Ports: 4 Power Range: -90dBm to +10dBm -
4200A-SCS Parameter Analyzer
Medium Power Source Measurement Unit: DC I-V ±100μA, ±210V; AC C-V ±0.5μV, 100fA High Power Source Measurement Unit: DC I-V ±1A, ±210V; AC C-V ±0.5μV, 100fA Remote Preamp Module: 1kHz-10MHz ±0.5μV, 0.1fA Capacitance Voltage Unit: AC Impedance ±30V DC bias; C-V, C-f, C-t I-V/C-V Switching Module: DC I-V and C-V automatic switching -
HCE-5000 Compact ESD Tester
Model: HCE-5000 Charge Voltage: 10V to 4kV step 5V (Op. HBM 8kV) Charge Voltage Accuracy: 1%+/-10V Zap Polarity: +/- Zap Count: 1 to 99 -
R50 Series Thin Film Sheet Resistance Mapping System
Measurement Range R50-4PP: 1mΩ/sq-200MΩ/sq Measurement Range R50-EC: 1mΩ/sq-50Ω/sq Maximum Measurement Diameter R50-4PP: 100mm Maximum Measurement Diameter R50-EC: 100mm Maximum Measurement Diameter R50-200-4PP: 200mm
