Photonics Source provides 519 products. Download datasheets, request quotes, and compare function, price, and availability.
-
FA1202D
Focal Length: f=12mm Max Aperture Ratio: F1.4-16 Picture Size: 2/3'' Horizontal Angle: 39° Vertical Angle: 30.3° -
FA1210A
Focal Length: f=12mm Max Diameter (Ratio): F1:2.8-16 Picture Size: 2/3'' 8.8×6.6mm 1/2'' 6.4×4.8mm 1/3'' 4.8×3.6mm Angle: H:30.4° V:22.3° D:36.6° Object Dimension at 200mm: H:153.8mm V:115.3mm D:193.3mm -
1/1.8'' F2.0 C Mount Lens
Focal Length: f=12mm F/NO: F=2.0 Image Size: 1/1.8''(7.2×5.3mm)/1/2.5''(5.76×4.32mm)/1/3''(4.8×3.6mm) Angle FOV: H:33° V:24.3° D:40° Object Dimension at WD300mm: H:184.6mm V:147.7mm D:229.5mm -
FA0825E
Focal Length: f=8mm Aperture Range: F2.8-22 Image Size: 1.1'' (11.14×13.30mm), 2/3'' (8×7.1mm) Angle FOV: H: 82°8', V: 65°8', D: 89°35' Distortion (TV): <3.2% -
FA0815A Lens
Focal Length: 8mm Max Diameter (Ratio): F1.4-16 Picture Size: 1/1'' Angle: H:84.8° V:68° D:98.4° Object Dimension at M.O.D: H:219mm V:199mm D:273mm -
FA0810A
Focal Length: 8mm Max Aperture Ratio: F1:2.8-16 Picture Size: 2/3''(8.8×6.6mm) 1/2''(6.4×4.8mm) 1/3''(4.8×3.6mm) Angle: H:57.6° D:67.6° V:42.8° Object Dimension at 200mm: H:227.2mm D:284mm V:166mm -
FA0802D
Focal Length: f=8mm Max Diameter (Ratio): F=1:14-16 Picture Size: 2/3'' 8.6×6.6mm 1/2'' 6.4×4.8mm Angle: H: 56° V: 43.7° D: 67.1° Object Dimension at WD100mm: H: 117mm V: 88mm D: 146.7mm -
FA0802M3 Lens Module
Focal Length: 16mm Max Aperture Ratio: F1.4 Picture Size: 2/3'' (8.8mm×6.6mm) Angle: H: 43° V: 33° D: 53° Object Dimension: H: 8.8mm V: 6.6mm D: 11mm -
FA0801C
Focal Length: 8mm F/NO: F2.0 Image Size: 1/1.8'' (7.2×5.3mm), 1/2.5'' (5.76×4.32mm), 1/3'' (4.8×3.6mm) Angle FOV Horizontal: 38°-32° Angle FOV Vertical: 36°-29.11° -

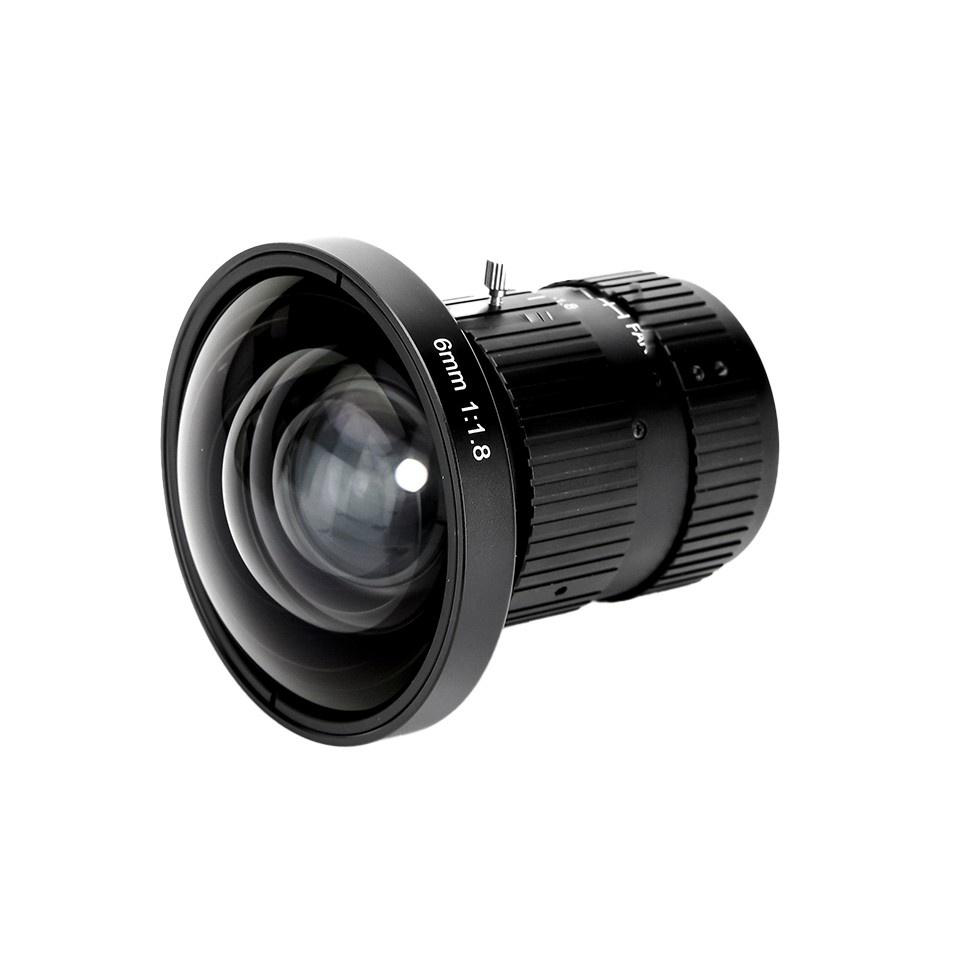

FA0615A
Focal Length: 6mm Max Diameter (Ratio): F1.8-16 Picture Size: 1'' Horizontal Angle: 104.9° Vertical Angle: 86.2° -
FA0601C
Focal Length: 6mm F/NO: F2.0 Image Size: 1/1.8'' (7.25×5.32mm) Angle FOV: H:59°, V:46°, D:68° Working Distance: 300mm -
FA0410C
Focal Length: f=4mm F-Number: F=2-C Image Size: 1/1.8'' (7.2×5.3mm), 1/2'' (5.76×4.32mm), 1/3'' (4.8×3.6mm) Angle FOV: H:82.9°, V:66.5°, D:56.7° Object Dimension at WD250mm: H:4.59mm, V:3.44mm, D:5.74mm -
CY1601A Lens
Field of View (FOV) Horizontal: 69.5°±5° Field of View (FOV) Vertical: 55.5°±5° Field of View (FOV) Diagonal: 89.5°±5° Relative Illumination (RA): 78%±5% Max Aperture: F2.0 -
M72 to M72 (10)
Outer Diameter: Ø72.5 Inner Diameter: Ø66 Thickness: 10±0.05 Material: A6061 Surface Treatment: Black anodizing -
CY8020A Lens
Aperture: F2.0 Focal Length: 1.65mm Max Image Circle: Φ7.2mm Field of View (FOV): 124.5° Optical Distortion: <14% -
CV622ASII Lens
Max Angle: 80° Relative Illumination: >56% Field of View (FOV): 123.5° Field of View Horizontal: 123.5° Field of View Vertical: 99.5° -
CY0807A
Field of View (FOV): 48.3°×36.3° Aperture: F2.0 Sensor Size: 1/2.8" Max Image Circle: Ø6.3mm Back Focal Length (IR): 23±0.02mm -
CV1223A Lens
Model No.: CV1223A Sensor: 1/2.3" Max MA: Φ8.0mm EFL: 4.5mm F/#: 2.5 -
CV0501A
Sensor: 1/3.2 MAX Image Circle: 5.7 Focal Length: 3.72 F/#: 2.6±0.2 TTL Distortion: <5% -
CV0522ANF Lens
Max Image Circle: Φ9.8mm Relative Illumination: 72±5% FNO: 2.0 Total Track Length: 20.2±0.2 Back Focal Length (Cover Glass Thickness=0.5mm): 3.94±0.2
