Photonics Source provides 519 products. Download datasheets, request quotes, and compare function, price, and availability.
-
G-MH6510B
Optical Magnification: 10X WD (min): 65.2mm F NO: 6.8 NA: 0.072 Image Size (Dia): Ø18.6 -
10X Lens G-MH65101A
Optical Magnification: 10X WD (min): 65.2mm F NO: 6.8 NA: 0.072 Image Size (Dia): Ø18.6 -
0.75X Lens G-MH65075B
Optical Magnification: 0.75X Working Distance (mm): 65.2mm F.No: 6.8 Numerical Aperture (NA): 0.054 Image Size (Dia): Φ18.6 -
G-MH65075A 0.75X Lens
Optical Magnification: 0.75X Working Distance (mm): 65±2mm F.No: 6.8 Numerical Aperture (NA): 0.054 Image Size (Dia): Ø18.6 -

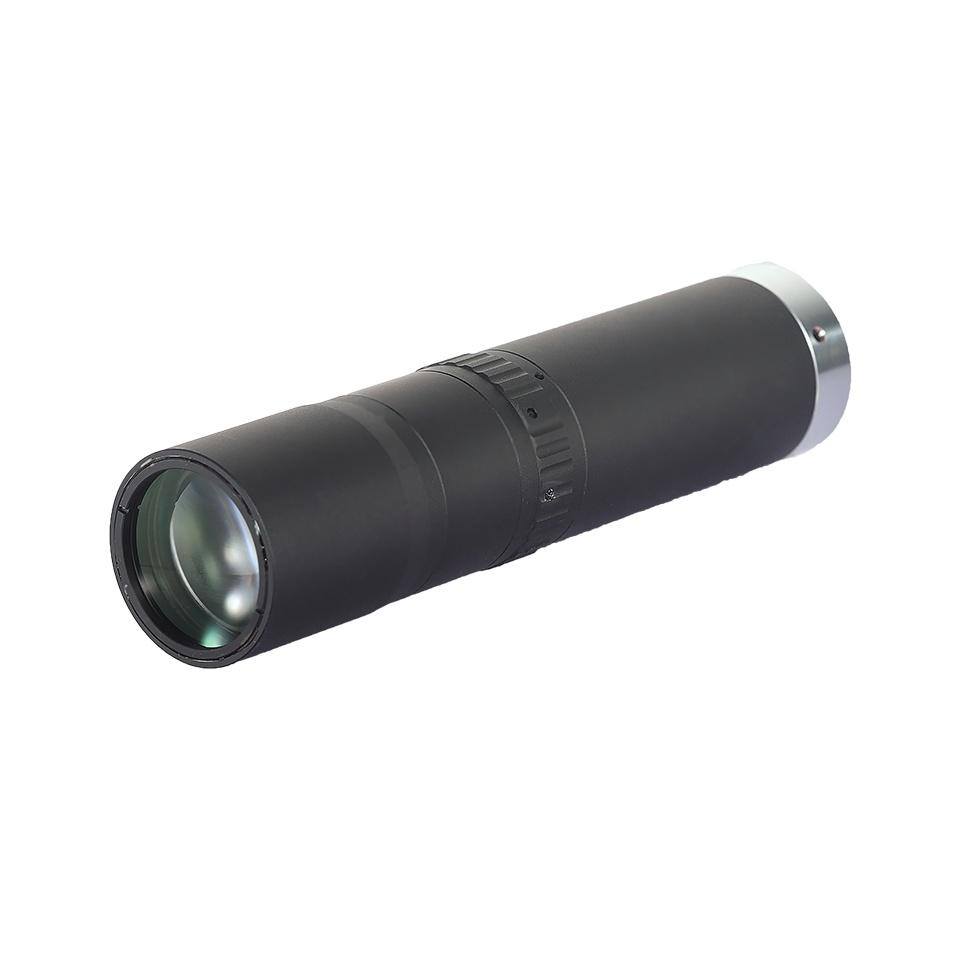

G-MVH140B-SPE Lens
Optical Magnification: 4.0x Working Distance: 110.27mm Numerical aperture: 0.117 Image Size: 16.1Φ Object Size: 190.2Φ -

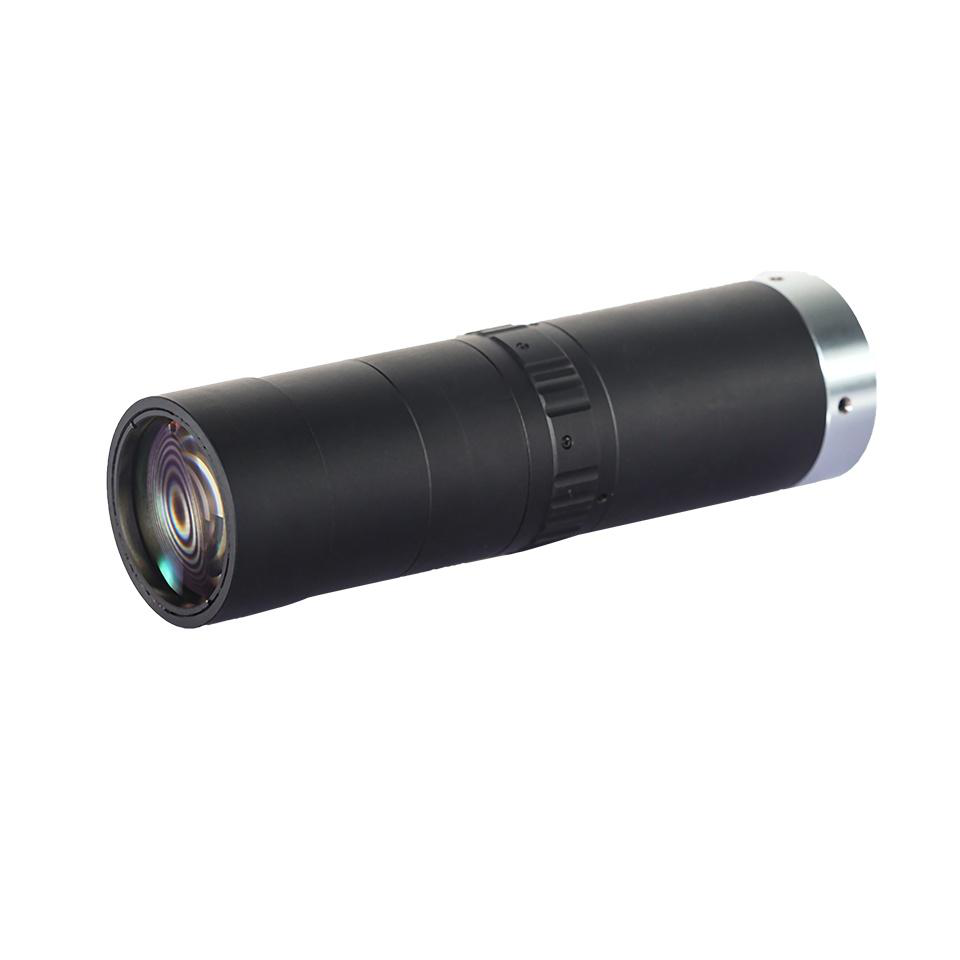

G-MH11201B 2.0x Lens
Optical Magnification: 2.0x Working Distance (mm): 110±2mm F Number: 10 Numerical Aperture (NA): 0.1 Image Size (Dia): Φ12 -

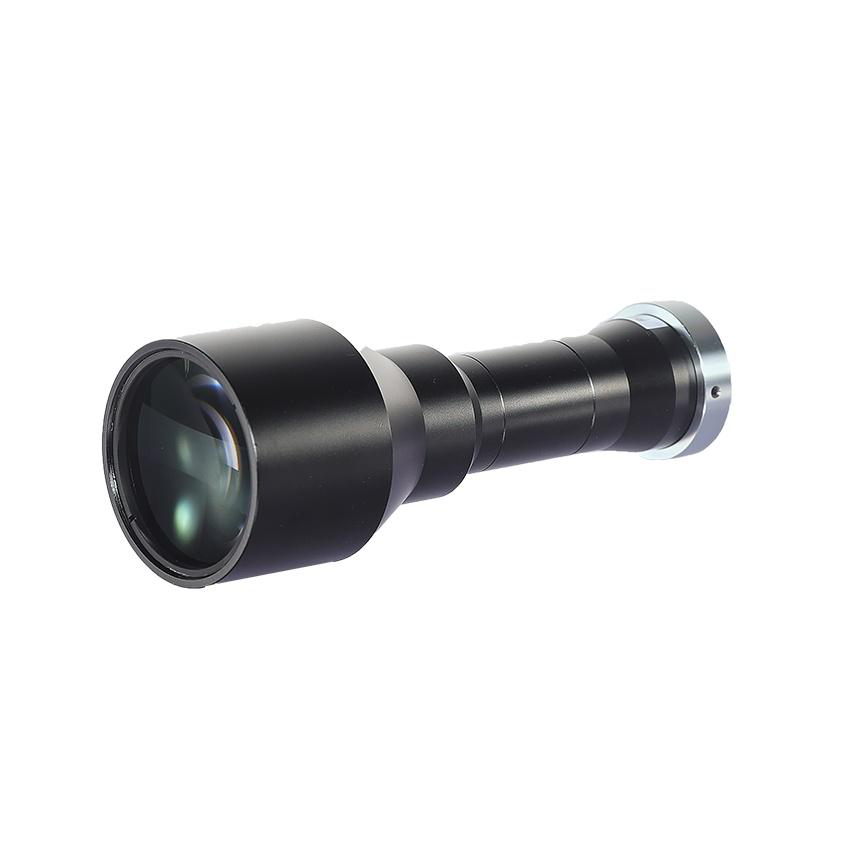

G-MH1061B
Reduction Ratio: 0.6x Working Distance: 103.3mm Object Size: Ø33×24.1mm Resolution: 0.1μm Distortion: <0.05% -
G-MVH1051D
Reduction Ratio: 0.5x Working Distance (mm): 103.3 FNO: F5.2 Max Image Size (ø): 11.0(ø18) TTL Size (mm): 296 -

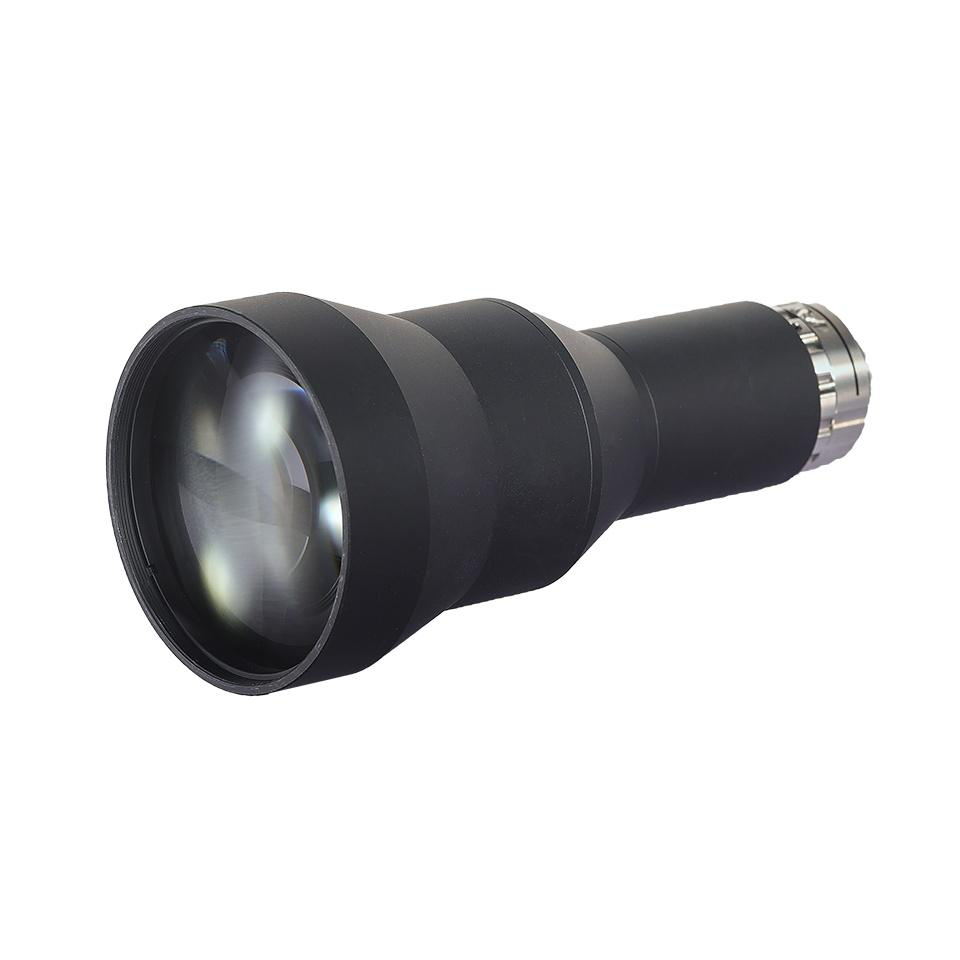

G-MH110310D 0.3x Lens
Optical Magnification: 0.3x Working Distance (mm): 110.2mm F Number: 6.5 Numerical Aperture (NA): 0.023 Image Size (Dia): Φ18 -
G-LS6017A
Focal Length: 60mm Aperture: F4 Working Distance: 160mm-403.7mm Object Field: W.D=160mm: 0.6×0.6 W.D=300mm: 0.38×0.38 Image Field: W.D=160mm: 0.65×0.65 W.D=300mm: 0.5×0.5 -
STC-MBS500P0E-SM
Support Load: 15kg Interface: C-Mount Maximum Outer Diameter: 70mm Axial Height: 37.5mm Rotation Angle: ±15° -
G-EXCSM5B
Material: 铝合金 Technical Requirements: 1. 表面粗糙度≤5 2. 材料材质：铝合金 3. 表面处理：阳极氧化 4. 标准安装接口：STC-MB132POE-SM Dimensions: 100x70x60mm Mounting Hole Dimensions: 40x25mm Movement Range: ±15° -
G-CT320B
Magnification: 16x Focal Length: 320mm Working Band: 420-680nm Mount: C Mount Max Image Circle: 4/3''(17x13mm) -
G-CT320A
Magnification: 16x Focal Length: 320mm Working Band: 420-680nm Mount: C Mount Max Image Circle: 4/3''(17.3x13mm) -
G-CT160B
Magnification: 0.8x Focal Length: 160mm Working Band: 420-680nm Mount: C Mount Max Image Circle: 4/3(17.3x13mm) -
G-CT160A
Magnification: 0.8x Focal Length: 160mm Working Band: 420-680nm Mount: C Mount Max Image Circle: 4/3177.3x133mm -
G-CT100B
Magnification: 0.5x Focal Length: 100mm Working Band: 420-680nm Mount: C Mount Max Image Circle: 27.8(Ø6.6mm) -
G-CT100A
Magnification: 0.5x Focal Length: 100mm Working Band: 420-680nm Mount: C Mount Max Image Circle: 27.8(Ø6.6mm) -
M Plan APO NIR 2X
Magnification: 2X Numerical aperture: 0.07 Focal Length: 31.5mm Working Distance: 42-100mm Resolution: 54μm -
M Plan Apo NIR 5x/0.21
Magnification: 5x NA: 0.21 Working Distance: 35.1mm Focal Length: 40mm Working Band: 420-1064nm
