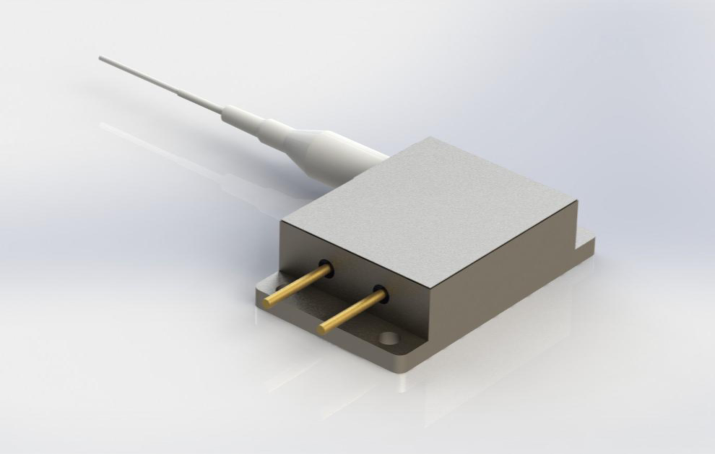

U-Series High Power Laser Diode Module
Save to Favorites
Specifications
| Parameter | Value |
|---|---|
| Center Wavelength [25℃] | Min:905 nm；Typical:915 nm；Max:925 nm |
| CW Output Power [25℃] | Typical:30 W；Max:35 W |
| Spectral Width (90%Energy) [25℃] | Max:10 nm |
| Wavelength Shift with Temperature [25℃] | Typical:0.3 nm/℃ |
| Feedback Protection (1040-1100nm) [25℃] | Typical:30 dB |
| 95% Power within NA [25℃] | Typical:0.18 NA |
| Threshold Current [25℃] | Typical:1.1 A |
| Operating Current [25℃] | Typical:17.0 A；Max:20.0 A |
| Operating Voltage [25℃] | Typical:3.5 V；Max:4.0 V |
| Slope Efficiency [25℃] | Typical:1.9 W / A |
| Power Conversion Efficiency [25℃] | Typical:50.0 % |
| Fiber Core Diameter [25℃] | 105 μm |
| Fiber Cladding Diameter [25℃] | 125 μm |
| Numerical Aperture [25℃] | 0.22 |
| Fiber Length [25℃] | 1-5 m |
| Operating Temperature | Min:15 ℃；Max:35 ℃ |
| Operating Relative Humidity | Max:75 % |
| Storage Temperature | Min:-20 ℃；Max:80 ℃ |
| Storage Relative Humidity | Max:90 % |
| Lead Soldering Temperature (10 s max) | Max:250 ℃ |
