Multichannel Optical Switch
The optical switch is an optical path switching function device. Both module and desktop package are provided. Variety of optical switch module including Mechanic, MEMS and others can be integrated according to customers’requirements.OEM is available.
Save to Favorites
Overview

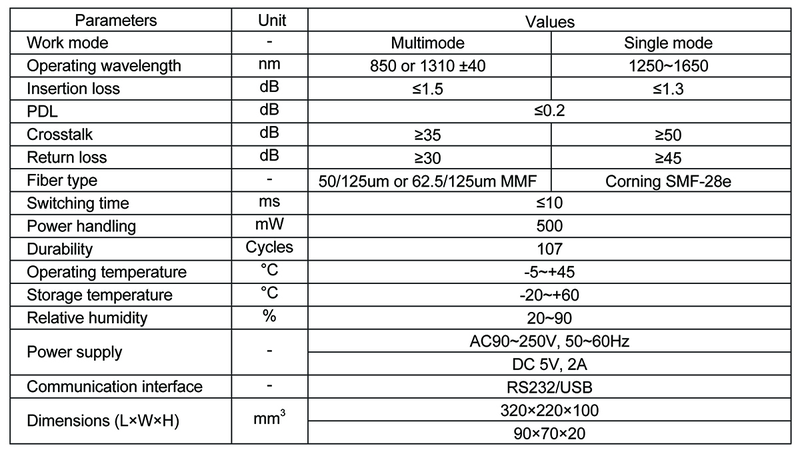

Specifications
| Parameter | Value |
|---|---|
| 工作模式 [multiple模] | Multimode |
| 工作波长 [multiple模] | 850 or1310±40 |
| 插入损耗 [multiple模] | ≤1.5 dB |
| 串扰 [multiple模] | ≥35 dB |
| 回波损耗 [multiple模] | ≥30 dB |
| 光纤类型 [multiple模] | 50/125µm or62.5/125µm MMF |
| 工作模式 [单模] | Single mode |
| 工作波长 [单模] | 1250~1650 nm |
| 插入损耗 [单模] | ≤1.3 dB |
| 串扰 [单模] | ≥50 dB |
| 回波损耗 [单模] | ≥45 dB |
| 光纤类型 [单模] | Corning SMF-28e |
| PDL [multiple模 /单模; 来源未将可选供电/尺寸对应到封装代码] | ≤0.2 dB |
| 切换时间 [multiple模 /单模; 来源未将可选供电/尺寸对应到封装代码] | ≤10 ms |
| 承受功率 [multiple模 /单模; 来源未将可选供电/尺寸对应到封装代码] | 500 mW |
| 耐久性 [multiple模 /单模; 来源未将可选供电/尺寸对应到封装代码] | 107 Cycles |
| 工作温度 [multiple模 /单模; 来源未将可选供电/尺寸对应到封装代码] | -5~+45 °C |
| 储存温度 [multiple模 /单模; 来源未将可选供电/尺寸对应到封装代码] | -20~+60 °C |
| 相对湿度 [multiple模 /单模; 来源未将可选供电/尺寸对应到封装代码] | 20~90 % |
| 电源 [multiple模 /单模; 来源未将可选供电/尺寸对应到封装代码] | AC90~250V,50~60Hz /DC5V,2A |
| 通信接口 [multiple模 /单模; 来源未将可选供电/尺寸对应到封装代码] | RS232/USB |
| 外形尺寸(L×W×H) [multiple模 /单模; 来源未将可选供电/尺寸对应到封装代码] | 320×220×100 /90×70×20 |
