10G Phase modulator
Save to Favorites

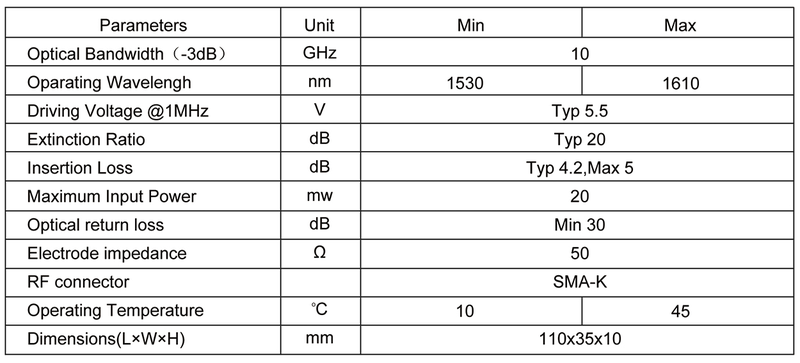

Specifications
| Parameter | Value |
|---|---|
| Optical Bandwidth (-3dB) | 10 GHz |
| Operating Wavelength | min:1530 nm；max:1610 nm |
| Driving Voltage @1MHz | typical:5.5 V |
| Extinction Ratio | typical:20 dB |
| Insertion Loss | typical:4.2 dB；max:5 dB |
| Maximum Input Power | 20 mw |
| Optical return loss | min:30 dB |
| Electrode impedance | 50 Ω |
| RF connector | SMA-K |
| Operating Temperature | min:10 °C；max:45 °C |
| Dimensions (L×W×H) | 110 mm × 35 mm × 10 mm |
Applications
Key Features
Datasheet
