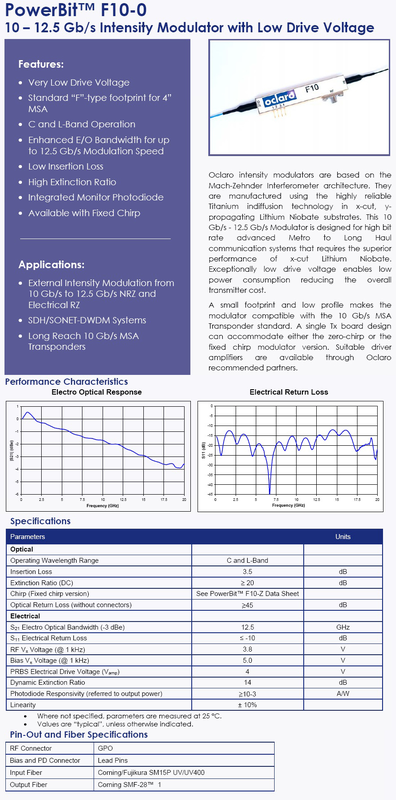

10G Intensity modulator OCLARO Oclaro F10 Series F10-0
The Modulator is a single GPO RF port,3.5dB low insertion loss and low drive voltage. Oclaro intensity modulators are based on the Mach-Zehnder Interferometer architecture. They are manufactured using the highly reliable Titanium diffusion technology in x-cut, y-propagating Lithium Niobate substrates. This 10 Gb/s - 12.5 Gb/s Modulator is designed for high bit rate advanced Metro to Long Haul communication systems that requires the superior performance of x-cut Lithium Niobate. Exceptionally low drive voltage enables low power consumption reducing the overall transmitter cost. A small footprint and low profile makes the modulator compatible with the 10 Gb/s MSA Transponder standard. A single Tx board design can accommodate either the zero-chirp or the fixed chirp modulator version. Suitable driver amplifiers are available through Oclaro recommended partners.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operating Wavelength Range [25°C, where not specified / Values are typical, unless otherwise indicated] | C and L-Band |
| Insertion Loss [25°C, where not specified / Values are typical, unless otherwise indicated] | typical:3.5 dB |
| Extinction Ratio (DC) [25°C, where not specified / Values are typical, unless otherwise indicated] | ≥20 dB |
| Optical Return Loss (without connectors) [25°C, where not specified / Values are typical, unless otherwise indicated] | ≥45 dB |
| S21 Electro Optical Bandwidth (-3 dBe) [25°C, where not specified / Values are typical, unless otherwise indicated] | typical:12.5 GHz |
| S11 Electrical Return Loss [25°C, where not specified / Values are typical, unless otherwise indicated] | ≤-10 dB |
| RF Vπ Voltage (@1kHz) [25°C, where not specified / Values are typical, unless otherwise indicated；@1kHz)] | typical:3.8 V |
| Bias Vπ Voltage (@1kHz) [25°C, where not specified / Values are typical, unless otherwise indicated；@1kHz)] | typical:5.0 V |
| PRBS Electrical Drive Voltage (Vamp) [25°C, where not specified / Values are typical, unless otherwise indicated] | typical:4 V |
| Dynamic Extinction Ratio [25°C, where not specified / Values are typical, unless otherwise indicated] | typical:14 dB |
| Photodiode Responsivity (referred to output power) [25°C, where not specified / Values are typical, unless otherwise indicated] | ≥10-3 A/W |
| Linearity [25°C, where not specified / Values are typical, unless otherwise indicated] | typical:±10% |
| RF Connector | GPO |
| Bias and PD Connector | Lead Pins |
| Input Fiber | Corning/Fujikura SM15P UV/UV400 |
| Output Fiber | Corning SMF-28™ 1 |
