10G PAM4 Lithium niobate intensity modulator Sumitomo T.MXH1.5-10PD-ADC T.MZH1.5-10PD-ADC-01-001
The modulator is a single GPO RF port driver,5dB has low insertion loss and low 5Vpp drive voltage.
Save to Favorites
Overview
Specifications

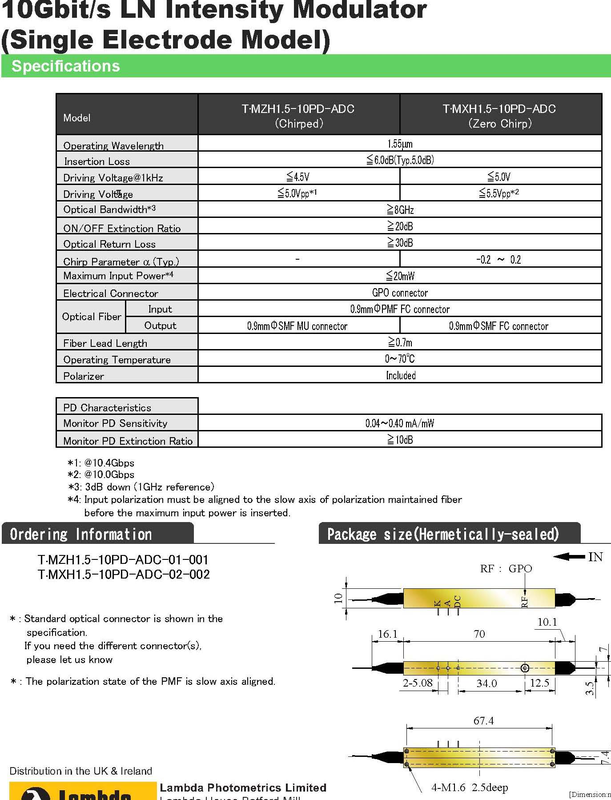

| Parameter | Value |
|---|---|
| Operating Wavelength [Chirped] | 1.55µm |
| Insertion Loss [Chirped] | typical:5.0 dB |
| Driving Voltage @1kHz [Chirped；@1kHz] | ≤4.5V |
| Driving Voltage [Chirped / @10.4Gbps] | ≤5.0Vpp |
| Optical Bandwidth [Chirped / 3dB down (1GHz reference)] | ≥8GHz |
| ON/OFF Extinction Ratio [Chirped] | ≥20dB |
| Optical Return Loss [Chirped] | ≥30dB |
| Maximum Input Power [Chirped / Input polarization must be aligned to the slow axis of polarization maintained fiber before the maximum input power is inserted.] | ≤20mW |
| Electrical Connector [Chirped] | GPO connector |
| Optical Fiber - Input [Chirped] | 0.9mmΦPMF FC connector |
| Optical Fiber - Output [Chirped] | 0.9mmΦSMF MU connector |
| Fiber Lead Length [Chirped] | ≥0.7m |
| Operating Temperature [Chirped] | 0~70°C |
| Polarizer [Chirped] | Included |
| Monitor PD Sensitivity [Chirped] | 0.04~0.40mA/mW |
| Monitor PD Extinction Ratio [Chirped] | ≥10dB |
