10G PAM4 Intensity modulator Sumitomo T.DKH1.5-10PD-ADC T.DKH1.5-10PD-ADC-03-003
The modulator is a GPO RF port driver,which can support single drive or dual drive simultaneously;5.5dB has low insertion loss and 6.0Vpp low drive voltage (single drive mode).
Save to Favorites
Overview
Specifications

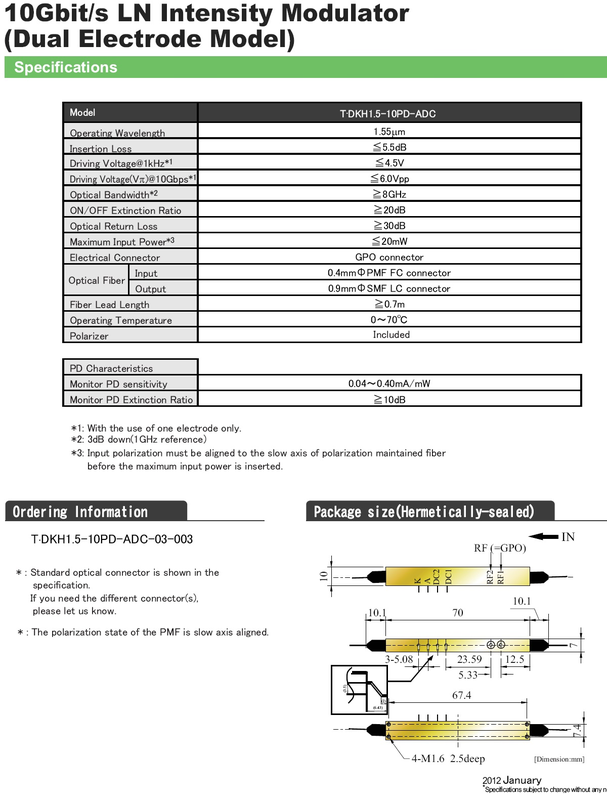

| Parameter | Value |
|---|---|
| 工作波长 | 1.55µm |
| 插入损耗 | ≤5.5dB |
| 驱动电压 @1kHz [仅使用一 complete plans电极；@1kHz] | ≤4.5V |
| 驱动电压 (Vπ) @10Gbps [仅使用一 complete plans电极；@10Gbps] | ≤6.0Vpp |
| 光学带宽 [下降3dB（以1GHz为参考）] | ≥8GHz |
| ON/OFF 消光比 | ≥20dB |
| 光回损 | ≥30dB |
| 最大输入功率 [在施加最大输入功率之前，输入偏振必须与保偏光纤的慢轴对准。] | ≤20mW |
| 电连接器 | GPO connector |
| 光纤-输入 | 0.4mmΦPMF FC connector |
| 光纤 - 输出 | 0.9mmΦSMF LC connector |
| 引出光纤长度 | ≥0.7m |
| 工作温度 | 0~70°C |
| 偏振片 | Included |
| 监测PD灵敏度 | 0.04~0.40mA/mW |
| 监测PD消光比 | ≥10dB |
