40G QPSK Lithium niobate modulator Modulator Fujitsu FTM7962EP

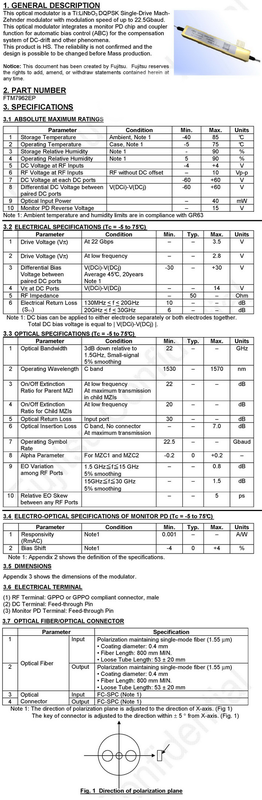

This optical modulator is a LiNbO₃ DQPSK Single-Drive Mach-Zehnder modulator with modulation speed of up to 22.5Gbaud. This optical modulator integrates a monitor PD chip and coupler function for automatic bias control (ABC) for the compensation system of DC-drift and other phenomena.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| 储存温度 [绝对最大额定值 / 环境，注1 / 环境温度 and 湿度限值符合GR63] | min:-40 °C；max:85 °C |
| 工作温度 [绝对最大额定值 / 管壳，注1 / 环境温度 and 湿度限值符合GR63] | min:-5 °C；max:75 °C |
| 储存相对湿度 [绝对最大额定值 / 注1 / 环境温度 and 湿度限值符合GR63] | max:90 % |
| 工作相对湿度 [绝对最大额定值 / 注1 / 环境温度 and 湿度限值符合GR63] | min:5 %；max:90 % |
| RF输入端直流电压 [绝对最大额定值] | min:-4 V；max:+4 V |
| RF输入端射频电压 [绝对最大额定值 / NoneDC偏移的RF] | max:10 Vp-p |
| 各DC端口的直流电压 [绝对最大额定值] | min:-60 V；max:+60 V |
| 成对DC端口之间的差分直流电压 [绝对最大额定值 / V(DCi)-V(DCj)] | min:-60 V；max:+60 V |
| 光输入功率 [绝对最大额定值] | max:40 mW |
| 监测PD反向电压 [绝对最大额定值] | max:15 V |
| 驱动电压 (Vπ) [Tc=-5至75°C / 在22 Gbps条 Items下] | max:3.5 V |
| 驱动电压 (Vπ) [Tc=-5至75°C / 在低频条 Items下] | max:2.8 V |
| 成对DC端口之间的差分偏置电压 [Tc=-5至75°C / V(DCi)-V(DCj) / 平均45°C，20年 / 注1 / DC偏置可单独施加于任一电极，也可同时施加于两 complete plans电极。总DC偏置电压等于|V(DCi)-V(DCj)|。] | min:-30 V；max:+30 V |
| DC端口的Vπ [Tc=-5至75°C / V(DCi)-V(DCj)] | max:14 V |
| RF阻抗 [Tc=-5 至 75°C] | typical:50 Ohm |
| 电回波损耗 (S11) [Tc=-5至75°C / 130MHz ≤ f ≤ 20GHz] | min:10 dB |
| 电回波损耗 (S11) [Tc=-5至75°C / 20GHz ≤ f ≤ 30GHz] | min:6 dB |
| 光学带宽 [Tc=-5至75°C / 相对于1.5GHz下降3dB，小信号 / 平滑5%] | min:22 GHz |
| 工作波长 [Tc=-5至75°C / C波段] | min:1530 nm；max:1570 nm |
| 父MZI开关消光比 [Tc=-5至75°C / 在低频条 Items下 / 子级MZI处于最大透射状态] | min:22 dB |
| 子MZI开关消光比 [Tc=-5至75°C / 在低频条 Items下] | min:20 dB |
| 光回损 [Tc=-5至75°C / 输入端口] | min:30 dB |
| 光插入损耗 [Tc=-5至75°C / C波段，None连接器 / 在最大透射状态下] | max:7.0 dB |
| 工作符号率 [Tc=-5 至 75°C] | min:22.5 Gbaud |
| AlphaParameters [Tc=-5至75°C / 适用于MZC1 and MZC2] | min: -0.2; max: +0.2 |
| 各RF端口的EO差异 [Tc=-5至75°C / 1.5 GHz ≤ f ≤ 15 GHz / 平滑5%] | max:0.8 dB |
| 各RF端口的EO差异 [Tc=-5至75°C / 15GHz ≤ f ≤ 30 GHz / 平滑5%] | max:1.5 dB |
| 任意RF端口之间的相对EO时延偏差 [Tc=-5 至 75°C] | max:5 ps |
| 响应度 (RmAC) [Tc=-5至75°C / 注1：附录2给出了这些指标的定义。] | min:0.001 A/W |
| 偏置漂移 [Tc=-5至75°C / 注1：附录2给出了这些指标的定义。] | min:-4 %；typical:0 %；max:+4 % |
| RF端子 | GPO or GPPO compliant connector, male |
| DC端子 | Feed-through Pin |
| 监测PD端子 | Feed-through Pin |
| 光纤-输入 | Polarization maintaining single-mode fiber (1.55 µm); Coating diameter: 0.4 mm; Fiber Length: 800 mm MIN.; Loose Tube Length: 53 ± 20 mm |
| 光纤 - 输出 | Polarization maintaining single-mode fiber (1.55 µm); Coating diameter: 0.4 mm; Fiber Length: 800 mm MIN.; Loose Tube Length: 53 ± 20 mm |
| 光连接器-输入 [偏振面方向调整为沿X轴方向。连接器键位方向调整至相对X轴±5°以内（图1）。] | FC-SPC |
| 光连接器-输出 [偏振面方向调整为沿X轴方向。连接器键位方向调整至相对X轴±5°以内（图1）。] | FC-SPC |
