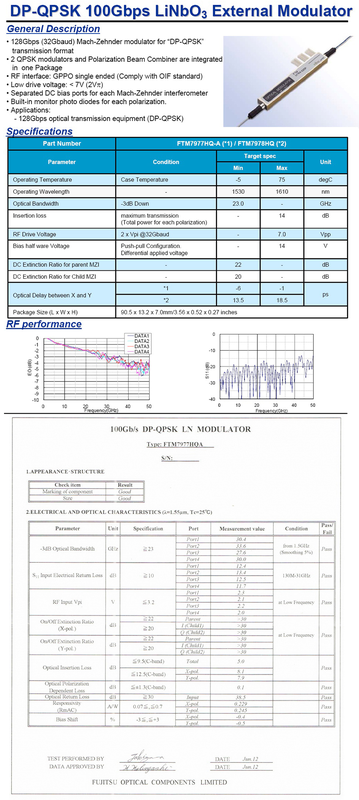

100G IQ/QAM Lithium niobate modulator Modulator Fujitsu FTM7977HQA
The optical modulator is Mach-Zehnder modulator, four arm RF drive,suitable for modulation format DP-QPSK;guaranteed bias input and output,the highest speed can reach 128Gbps;C+L band work.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| -3dB 光学带宽 [测试报告规格列 / λ=1.55µm, Tc=25°C / 端口1 / 端口2 / 端口3 / 端口4 / 从1.5GHz起（平滑5%）] | ≥23 GHz |
| S11输入电回波损耗 [测试报告规格列 / λ=1.55µm, Tc=25°C / 端口1 / 端口2 / 端口3 / 端口4 / 130M-31GHz] | ≥10 dB |
| RF输入Vpi [测试报告规格列 / λ=1.55µm, Tc=25°C / 端口1 / 端口2 / 端口3 / 端口4 / 在低频条 Items下] | ≤3.2 V |
| 开关消光比（X偏振） [测试报告规格列 / λ=1.55µm, Tc=25°C / 父级 / 在低频条 Items下] | ≥22 dB |
| 开关消光比（X偏振） [测试报告规格列 / λ=1.55µm, Tc=25°C / I（子级1） / 在低频条 Items下] | ≥20 dB |
| 开关消光比（X偏振） [测试报告规格列 / λ=1.55µm, Tc=25°C / Q（子级2） / 在低频条 Items下] | ≥20 dB |
| 开关消光比（Y偏振） [测试报告规格列 / λ=1.55µm, Tc=25°C / 父级 / 在低频条 Items下] | ≥22 dB |
| 开关消光比（Y偏振） [测试报告规格列 / λ=1.55µm, Tc=25°C / I（子级1） / 在低频条 Items下] | ≥20 dB |
| 开关消光比（Y偏振） [测试报告规格列 / λ=1.55µm, Tc=25°C / Q（子级2） / 在低频条 Items下] | ≥20 dB |
| 光插入损耗 [测试报告规格列 / λ=1.55µm, Tc=25°C / 总计] | ≤9.5(C-band) |
| 光插入损耗 [测试报告规格列 / λ=1.55µm, Tc=25°C / X偏振] | ≤12.5(C-band) |
| 光插入损耗 [测试报告规格列 / λ=1.55µm, Tc=25°C / Y偏振] | ≤12.5(C-band) |
| 光偏振Related Categories损耗 [测试报告规格列 / λ=1.55µm, Tc=25°C] | ≤±1.3(C-band) |
| 光回损 [测试报告规格列 / λ=1.55µm, Tc=25°C / 输入] | ≥30 dB |
| 响应度 (RmAC) [测试报告规格列 / λ=1.55µm, Tc=25°C / X偏振 / Y偏振] | min:0.07 A/W；max:0.7 A/W |
| 偏置漂移 [测试报告规格列 / λ=1.55µm, Tc=25°C / X偏振 / Y偏振] | min:-3 %；max:+3 % |
