100G IQ-QAM Lithium niobate modulator Modulator Sumitomo T.SBXH1.5PL-25PD-ADC
This optical modulator is Maher Zed modulator,four arm RF drive,suitable for modulation format DP-QPSK;guaranteed bias input and output,the highest speed can reach 128Gbps;C+L band work.
Save to Favorites
Overview
Specifications

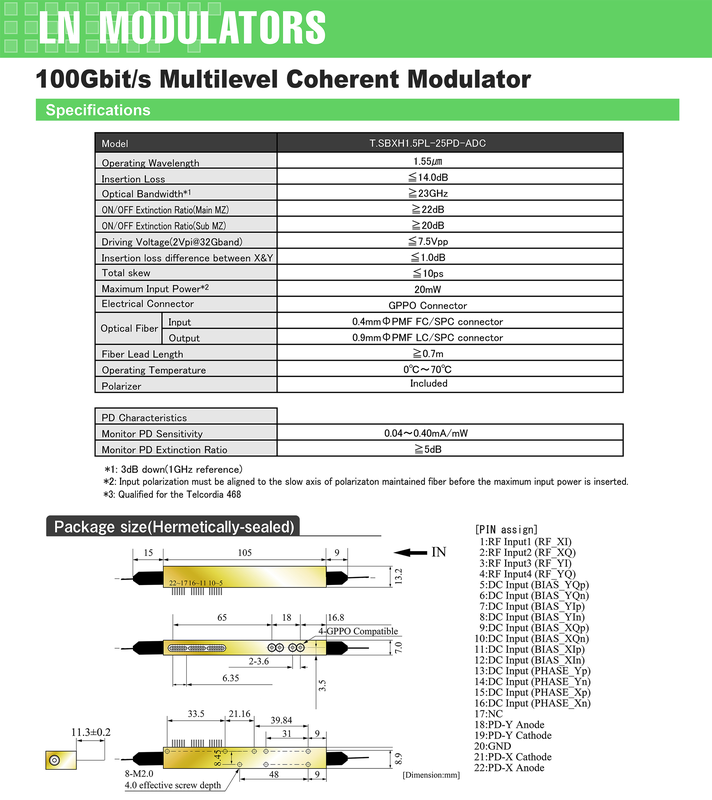

| Parameter | Value |
|---|---|
| Operating Wavelength | 1.55µm |
| Insertion Loss | ≤14.0dB |
| Optical Bandwidth [3dB down (1GHz reference)] | ≥23GHz |
| ON/OFF Extinction Ratio (Main MZ) | ≥22dB |
| ON/OFF Extinction Ratio (Sub MZ) | ≥20dB |
| Driving Voltage (2Vpi@32Gband) | ≤7.5Vpp |
| Insertion loss difference between X&Y | ≤1.0dB |
| Total skew | ≤10ps |
| Maximum Input Power [Input polarization must be aligned to the slow axis of polarization maintained fiber before the maximum input power is inserted.] | 20mW |
| Electrical Connector | GPPO Connector |
| Optical Fiber - Input | 0.4mmΦPMF FC/SPC connector |
| Optical Fiber - Output | 0.9mmΦPMF LC/SPC connector |
| Fiber Lead Length | ≥0.7m |
| Operating Temperature | 0°C~70°C |
| Polarizer | Included |
| Monitor PD Sensitivity | 0.04~0.40mA/mW |
| Monitor PD Extinction Ratio | ≥5dB |
