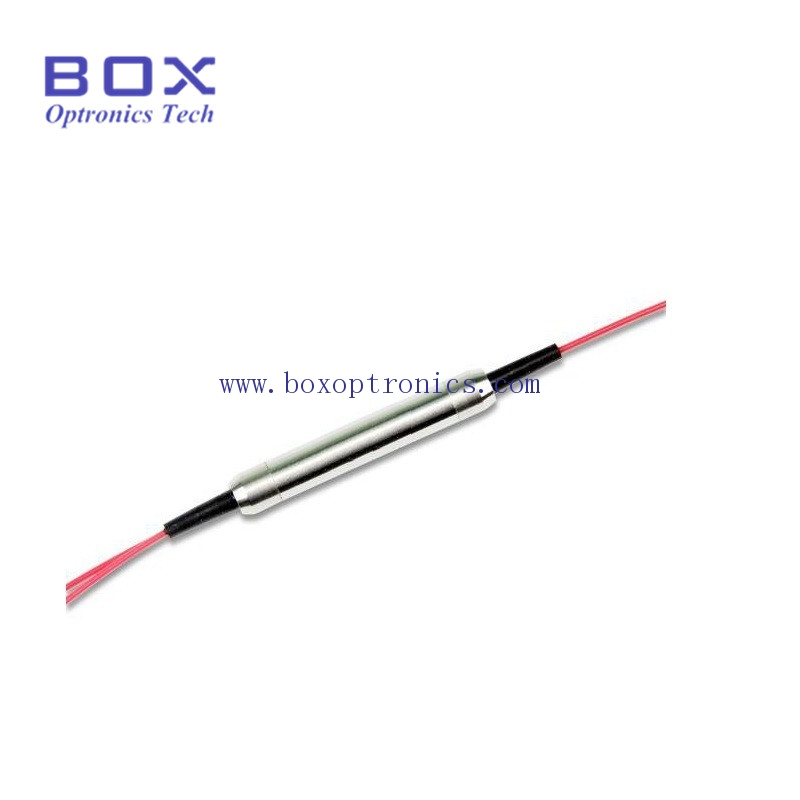

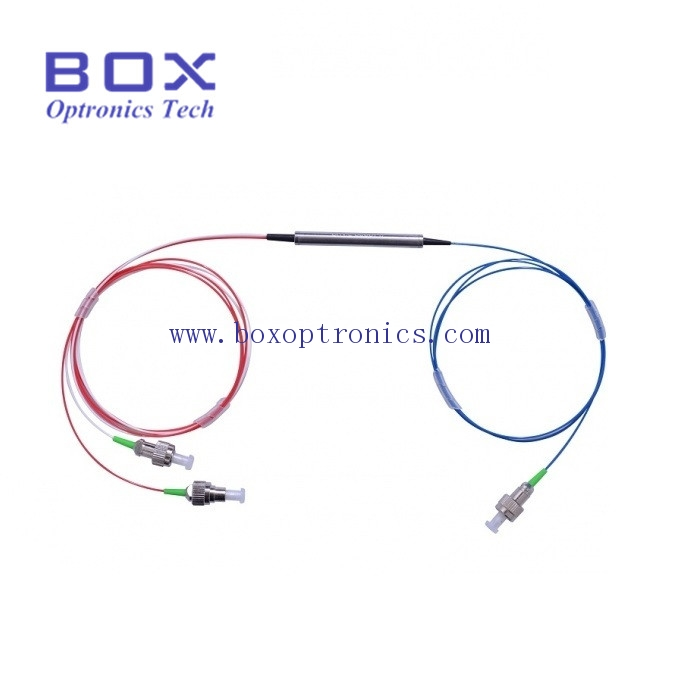

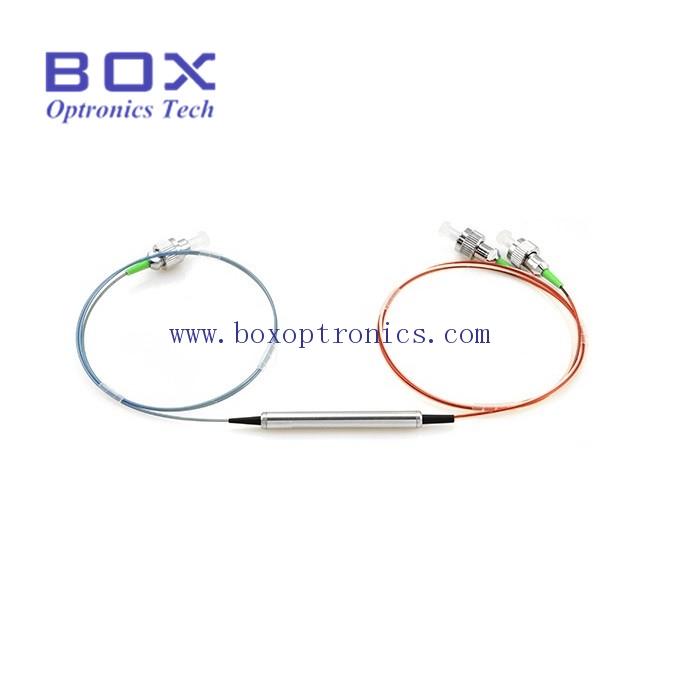

1310nm 1550nm Polarization beam combiner
The polarizing beam splitter can split or combine beams. The output beam parallel to the input beam is called P-polarized light, while the orthogonal output beam is called S-polarized light.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| 中心波长 [级别: P / 工作波长范围: ±40 nm] | 1310,1550 |
| 中心波长 [级别: A / 工作波长范围: ±40 nm] | 1310,1550 |
| 中心波长 [级别: P / 工作波长范围: ±20 nm] | 1064,980 |
| 中心波长 [级别: A / 工作波长范围: ±20 nm] | 1064,980 |
| 工作波长范围 [级别: P / 中心波长: 1310,1550 nm] | ±40 nm |
| 工作波长范围 [级别: A / 中心波长: 1310,1550 nm] | ±40 nm |
| 工作波长范围 [级别: P / 中心波长: 1064,980 nm] | ±20 nm |
| 工作波长范围 [级别: A / 中心波长: 1064,980 nm] | ±20 nm |
| 最大插入损耗 [级别: P / 中心波长: 1310,1550 nm / 工作波长范围: ±40 nm / 23℃] | 0.6 dB |
| 最大插入损耗 [级别: A / 中心波长: 1310,1550 nm / 工作波长范围: ±40 nm / 23℃] | 0.7 dB |
| 最大插入损耗 [级别: P / 中心波长: 1064,980 nm / 工作波长范围: ±20 nm / 23℃] | 0.8 dB |
| 最大插入损耗 [级别: A / 中心波长: 1064,980 nm / 工作波长范围: ±20 nm / 23℃] | 0.9 dB |
| 最小消光比 [级别: P / 中心波长: 1310,1550 nm / 工作波长范围: ±40 nm / 23℃] | 22 dB |
| 最小消光比 [级别: A / 中心波长: 1310,1550 nm / 工作波长范围: ±40 nm / 23℃] | 20 dB |
| 最小消光比 [级别: P / 中心波长: 1064,980 nm / 工作波长范围: ±20 nm / 23℃] | 22 dB |
| 最小消光比 [级别: A / 中心波长: 1064,980 nm / 工作波长范围: ±20 nm / 23℃] | 20 dB |
| 最小回损 [级别: P / 中心波长: 1310,1550 nm / 工作波长范围: ±40 nm] | 50 dB |
| 最小回损 [级别: A / 中心波长: 1310,1550 nm / 工作波长范围: ±40 nm] | 50 dB |
| 最小回损 [级别: P / 中心波长: 1064,980 nm / 工作波长范围: ±20 nm] | 50 dB |
| 最小回损 [级别: A / 中心波长: 1064,980 nm / 工作波长范围: ±20 nm] | 50 dB |
| 最大光功率（CW） [级别: P / 中心波长: 1310,1550 nm / 工作波长范围: ±40 nm / CW] | 300 mW |
| 最大光功率（CW） [级别: A / 中心波长: 1310,1550 nm / 工作波长范围: ±40 nm / CW] | 300 mW |
| 最大光功率（CW） [级别: P / 中心波长: 1064,980 nm / 工作波长范围: ±20 nm / CW] | 300 mW |
| 最大光功率（CW） [级别: A / 中心波长: 1064,980 nm / 工作波长范围: ±20 nm / CW] | 300 mW |
| 光纤类型 [端口1 & 2 / 级别: P / 中心波长: 1310,1550 nm / 工作波长范围: ±40 nm] | Polarization-maintaining Optical fiber |
| 光纤类型 [端口1 & 2 / 级别: A / 中心波长: 1310,1550 nm / 工作波长范围: ±40 nm] | Polarization-maintaining Optical fiber |
| 光纤类型 [端口1 & 2 / 级别: P / 中心波长: 1064,980 nm / 工作波长范围: ±20 nm] | Polarization-maintaining Optical fiber |
| 光纤类型 [端口1 & 2 / 级别: A / 中心波长: 1064,980 nm / 工作波长范围: ±20 nm] | Polarization-maintaining Optical fiber |
| 光纤类型 [端口3 / 级别: P / 中心波长: 1310,1550 nm / 工作波长范围: ±40 nm] | Polarization-maintaining fiber, single-mode SMF-28E, or Hi1060 |
| 光纤类型 [端口3 / 级别: A / 中心波长: 1310,1550 nm / 工作波长范围: ±40 nm] | Polarization-maintaining fiber, single-mode SMF-28E, or Hi1060 |
| 光纤类型 [端口3 / 级别: P / 中心波长: 1064,980 nm / 工作波长范围: ±20 nm] | Polarization-maintaining fiber, single-mode SMF-28E, or Hi1060 |
| 光纤类型 [端口3 / 级别: A / 中心波长: 1064,980 nm / 工作波长范围: ±20 nm] | Polarization-maintaining fiber, single-mode SMF-28E, or Hi1060 |
