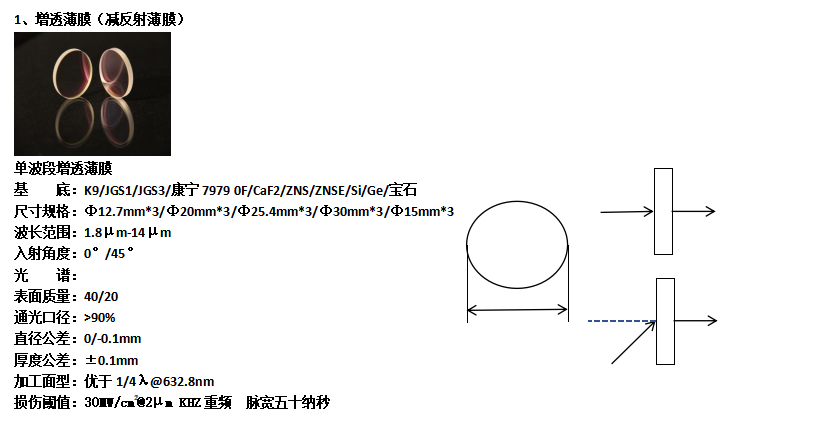

45° Mid-/long-wave infrared antireflection-coated optic CaF2
Save to Favorites

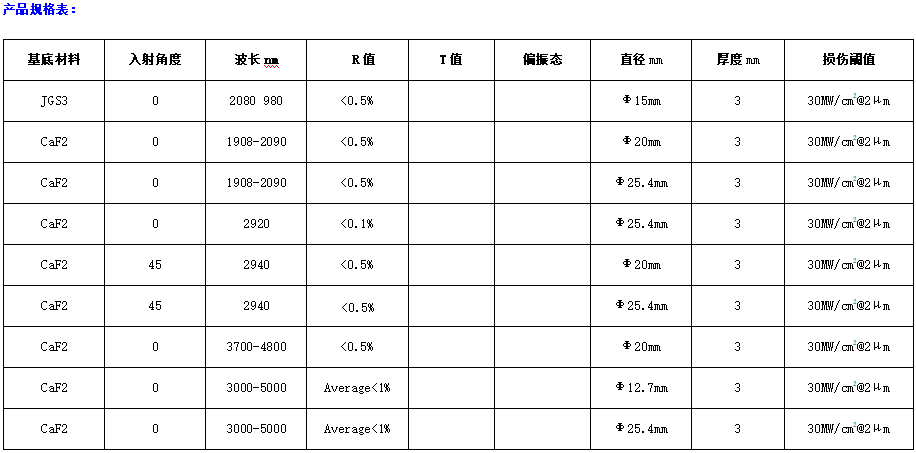

Specifications
| Parameter | Value |
|---|---|
| Wavelength [Selectable specifications (purchase options)] | 2940nm |
| Curvature [Selectable specifications (purchase options)] | Plano-plano |
| Diameter [Selectable specifications (purchase options)] | 20mm; 25.4mm |
| Thickness [Selectable specifications (purchase options)] | 3mm |
| Angle [Selectable specifications (purchase options)] | 45° |
| Reflectance [Selectable specifications (purchase options)] | ＜0.5% |
| Damage threshold [Selectable specifications (purchase options) ；@2μm] | 30MW/cm²@2μm |
| Specification combination [Specifications stated in the page title (original combination) ；@2μm] | D20mm/D 25.4mm 2940nm 30MW/cm²@2μm |
