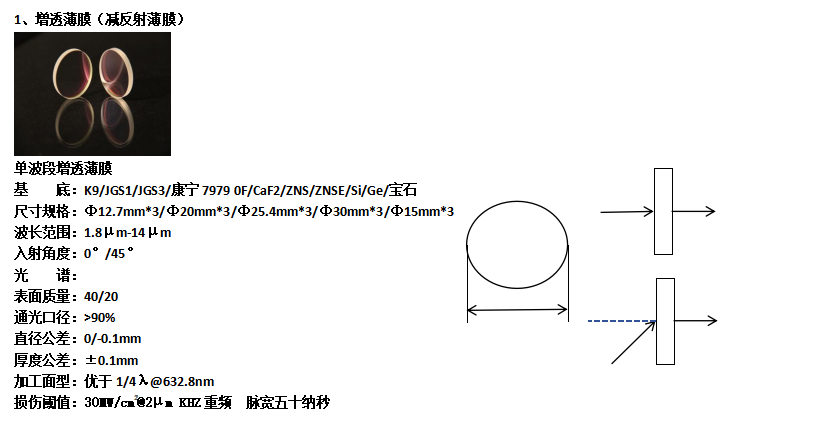

0° Mid-/long-wave infrared antireflection-coated optic CaF2
Save to Favorites

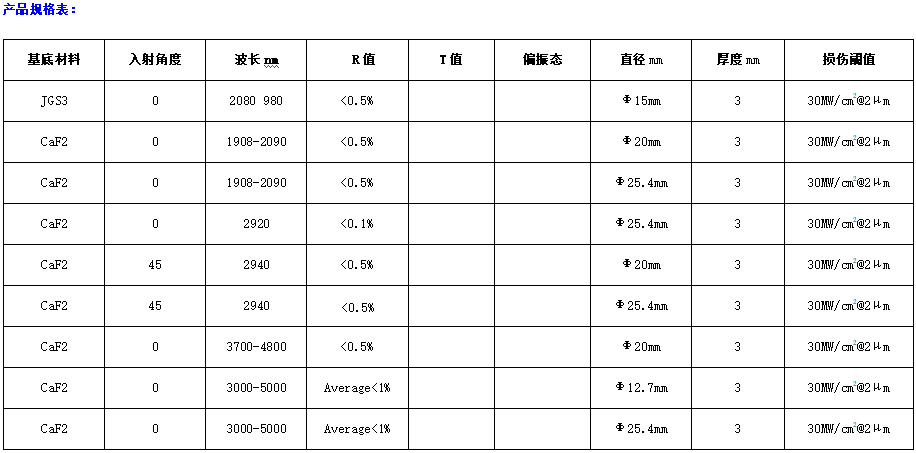

Specifications
| Parameter | Value |
|---|---|
| Wavelength [Selectable specifications (purchase options) ； Applicable page configurations (any) ：D12.7mm/D25.4mm 3000-5000nm 30MW/cm²@2μm] | 3000-5000nm |
| Curvature [Selectable specifications (purchase options)] | Plano-plano |
| Diameter [Selectable specifications (purchase options) ； Applicable page configurations (any) ：D12.7mm/D25.4mm 3000-5000nm 30MW/cm²@2μm] | 12.7mm; 25.4mm |
| Thickness [Selectable specifications (purchase options)] | 3mm |
| Angle [Selectable specifications (purchase options)] | 0° |
| Reflectance [Selectable specifications (purchase options) ； Applicable page configurations (any) ：D12.7mm/D25.4mm 3000-5000nm 30MW/cm²@2μm] | Average value ＜1% |
| Damage threshold [Selectable specifications (purchase options) ；@2μm] | 30MW/cm²@2μm |
| Specification combination [Specifications stated in the page title (original combination) ； Applicable page configurations (any) ：D12.7mm/D25.4mm 3000-5000nm 30MW/cm²@2μm] | D12.7mm/D25.4mm 3000-5000nm 30MW/cm²@2μm |
| Wavelength [Selectable specifications (purchase options) ； Applicable page configurations (any) ：D20mm 3700-4800nm 30MW/cm²@2μm] | 3700-4800nm |
| Diameter [Selectable specifications (purchase options) ； Applicable page configurations (any) ：D20mm 3700-4800nm 30MW/cm²@2μm] | 20mm |
| Reflectance [Selectable specifications (purchase options) ； Applicable page configurations (any) ：D20mm 3700-4800nm 30MW/cm²@2μm or D20mm/D25.4mm 1908-2090nm 30MW/cm²@2μm] | ＜0.5% |
| Specification combination [Specifications stated in the page title (original combination) ； Applicable page configurations (any) ：D20mm 3700-4800nm 30MW/cm²@2μm] | D20mm 3700-4800nm 30MW/cm²@2μm |
| Wavelength [Selectable specifications (purchase options) ； Applicable page configurations (any) ：D20mm/D25.4mm 1908-2090nm 30MW/cm²@2μm] | 1908-2090nm |
| Diameter [Selectable specifications (purchase options) ； Applicable page configurations (any) ：D20mm/D25.4mm 1908-2090nm 30MW/cm²@2μm] | 20mm; 25.4mm |
| Specification combination [Specifications stated in the page title (original combination) ； Applicable page configurations (any) ：D20mm/D25.4mm 1908-2090nm 30MW/cm²@2μm] | D20mm/D25.4mm 1908-2090nm 30MW/cm²@2μm |
| Wavelength [Selectable specifications (purchase options) ； Applicable page configurations (any) ：D25.4mm 2920nm 30MW/cm²@2μm] | 2920nm |
| Diameter [Selectable specifications (purchase options) ； Applicable page configurations (any) ：D25.4mm 2920nm 30MW/cm²@2μm] | 25.4mm |
| Reflectance [Selectable specifications (purchase options) ； Applicable page configurations (any) ：D25.4mm 2920nm 30MW/cm²@2μm] | ＜0.1% |
| Specification combination [Specifications stated in the page title (original combination) ； Applicable page configurations (any) ：D25.4mm 2920nm 30MW/cm²@2μm] | D25.4mm 2920nm 30MW/cm²@2μm |
