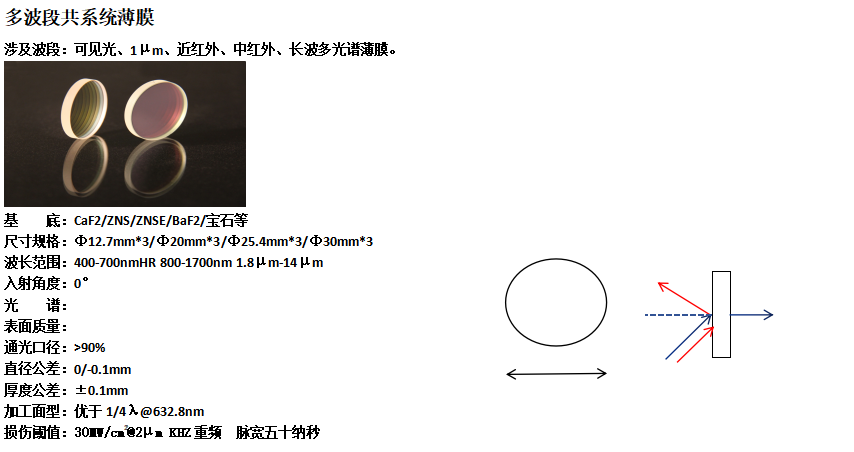

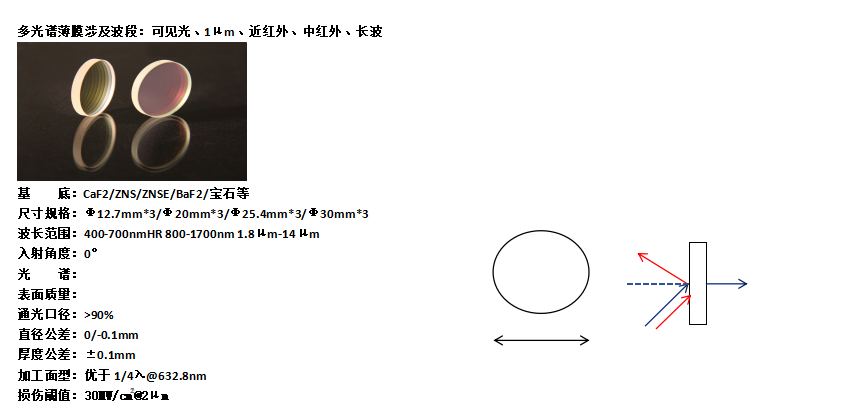

Multiband lens ZnSe
Save to Favorites

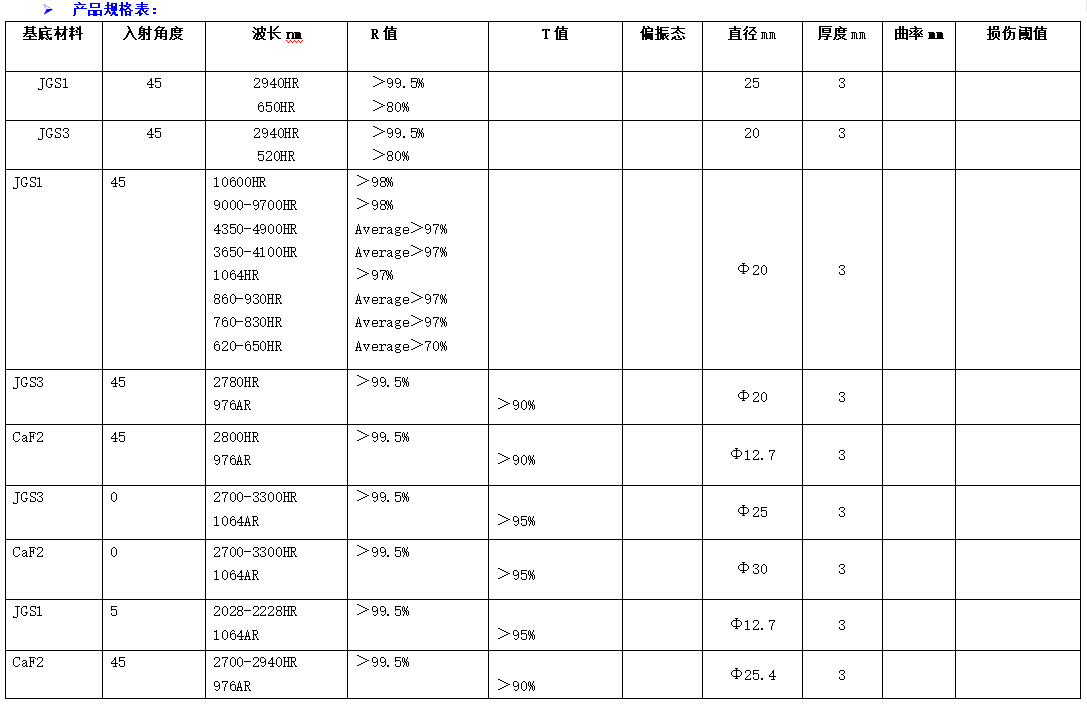

Specifications
| Parameter | Value |
|---|---|
| Wavelength [Selectable specifications (purchase options) ； Applicable page configurations (any) ：Multiband lens ZnSe] | 0.3-0.7μm 0.8-1μm 1-3μm 3-5μm; 0.8-1μm 1-3μm 3-5μm 5-8μm 8-14μm |
| Curvature [Selectable specifications (purchase options) ； Applicable page configurations (any) ：Multiband lens ZnSe] | Plano-plano ; -100mm; -200mm; -300mm; -400mm; -500mm; 100mm; 200mm; 300mm; 400mm; 500mm |
| Diameter [Selectable specifications (purchase options) ； Applicable page configurations (any) ：Multiband lens ZnSe] | 12.7mm; 20mm; 25.4mm; 30mm |
| Thickness [Selectable specifications (purchase options)] | 3mm; 5mm |
| Angle [Selectable specifications (purchase options) ； Applicable page configurations (any) ：Multiband lens ZnSe] | 0°; 45° |
| Wavelength [Selectable specifications (purchase options) ； Applicable page configurations (any) ：Multiband lens ZnSe] | 0.6-0.9 3.7-4.8μmAR; 0.6-0.9 1.064 3.7-4.8μmAR |
| Curvature [Selectable specifications (purchase options) ； Applicable page configurations (any) ：Multiband lens ZnSe] | Plano-plano ; 100mm; -100mm; 200mm; -200mm; 300mm; -300mm; 400mm; -400mm; 500mm; -500mm |
| Diameter [Selectable specifications (purchase options) ； Applicable page configurations (any) ：Multiband lens ZnSe] | 12.7mm; 15mm; 20mm; 25.4mm; 30mm |
| Material [Selectable specifications (purchase options) ； Applicable page configurations (any) ：Multiband lens ZnSe] | ZnSe |
| Angle [Selectable specifications (purchase options) ； Applicable page configurations (any) ：Multiband lens ZnSe] | 0° |
