Solar Energy Prism
The CPV solar prism collects sunlight for solar concentrators, concentrated photovoltaic (CPV) systems and solar power generation. It is a principal optical component for converting solar energy into electricity.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Material [or Customer requirements 。] | BK7, UV Fused Silica or Customer-Specified Material |

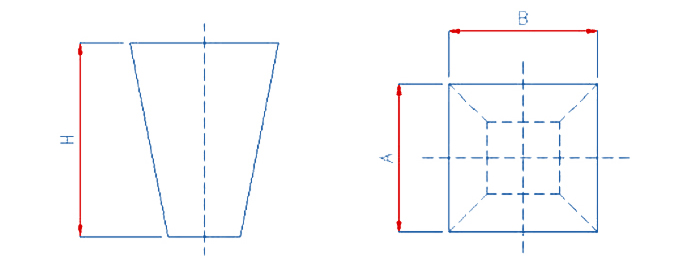

| Dimensions | 0.5mm-300mm |
| Dimensional tolerance [Customer requirements] | +/-0.1mm or Customer requirements |
| Clear Aperture | >90% |
| Nominal/Nominal | 60-40 40-20 20/10 10/5 |
| Flatness [At 632.80nm] | 632.80nm locations 1/10lambda |
| Chamfer | 0.25mmx45° |
| Coating [Customer requirements] | AR, HR, aluminum, silver, or as required by the customer. |
