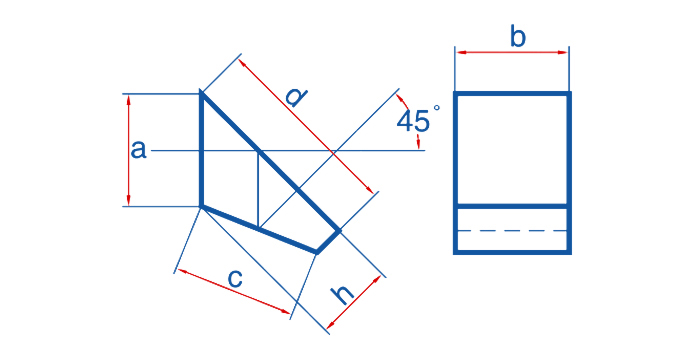

Half-Pentaprism
Sunday-optics manufactures half-pentaprisms to customer dimensions/drawings.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Material | BK7, UV fused silica, sapphire, ZnSe, Caf2, Si, Ge, etc. |
| Dimensions | 3mm-380mm |
| Dimensional tolerance [Customer requirements] | +/-0.02mm or Customer requirements |
| Clear Aperture | >90% |
| Nominal/Nominal | 60-40 40-20 20/10 10/5 |
| Flatness [At 632.80nm] | 632.80nm locations 1/10lambda |
| Chamfer | 0.25mmx45° |
| Coating [Customer requirements] | AR, HR, aluminum, silver, or as required by the customer. |
