Hard Coating PVD Coating System TS-1200LJX
Equipment description: The TS-LJX(M) series magnetron/multi-arc combined coater is a vertical multifunction system. Surface modification has a long history, with film requirements varying by era and industry. Vacuum thin-film technology is central to technological development, and PVD coatings reduce long-term costs and improve efficiency. Tool coatings extend tool life, increase cutting speed and improve workpiece quality. PVD solutions improve productivity and reduce costs through longer tool life and higher cutting speeds and feed rates. Compared with other coatings, PVD is more environmentally friendly, and nanoscale hard films significantly improve cost efficiency. Vacuum coating enhances surface properties with reduced friction and improved wear and corrosion resistance, increasing product value and service life across many fields.
Save to Favorites
Overview

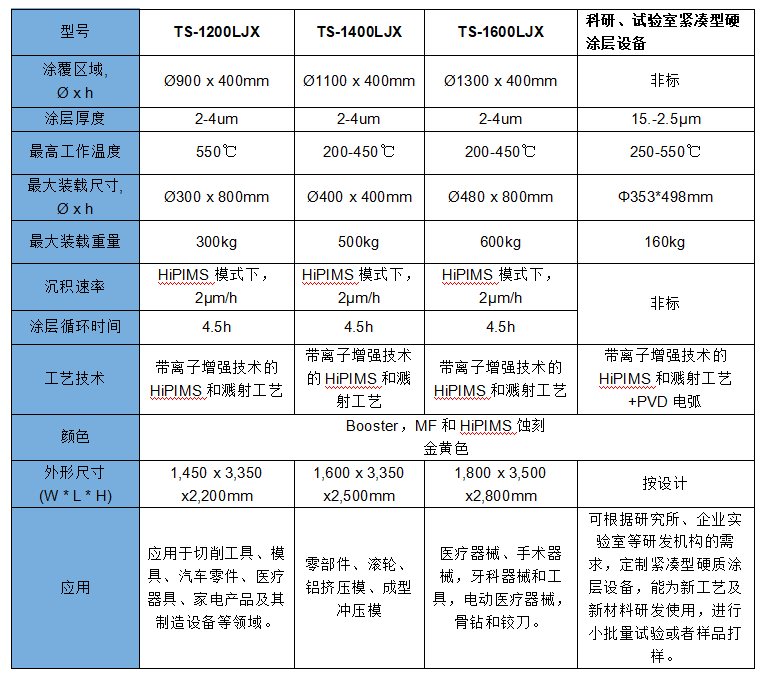

Specifications
| Parameter | Value |
|---|---|
| Coated Area [Ø x h] | Ø900 x 400mm |
| Coating Thickness | 2-4um |
| Maximum Operating temperature | 550°C |
| Maximum Loading Dimensions [Ø x h] | Ø300 x 800mm |
| Maximum Loading Weight | 300kg |
| Deposition Rate [In HiPIMS Mode] | 2μm/h |
| Coating Cycle Time | 4.5h |
| Process Technology | HiPIMS and sputtering processes with ion-enhancement technology |
| Color | Booster, MF and HiPIMS etching; golden color |
| Overall dimensions [W*L*H] | 1,450 x 3,350 x 2,200mm |
