Lithium Niobate Intensity Modulator
The lithium niobate (LiNbO3) electro-optic intensity modulator uses a waveguide fabricated by titanium diffusion or proton exchange. It offers low insertion loss, high modulation bandwidth, low half-wave voltage and high damage-threshold power. Applications include space optical communications, pulse generators and quantum optics.
Save to Favorites
Overview
Specifications

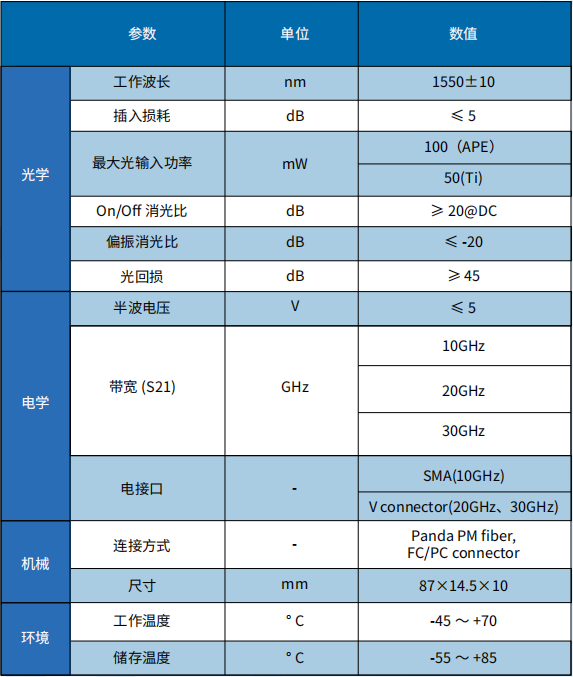

| Parameter | Value |
|---|---|
| Operating wavelength | 1550±10 nm |
| Insertion loss | ≤5 dB |
| Maximum Optical Input Power [APE] | 100（APE） |
| Maximum Optical Input Power [Ti] | 50(Ti) |
| On/Off Extinction ratio [DC] | ≥20@DC |
| Polarization Extinction ratio | ≤-20 dB |
| Optical return loss | ≥45 dB |
| Half-wave voltage | ≤5 V |
| Bandwidth （S21） | 10GHz / 20GHz / 30GHz |
| Electrical interface [10GHz] | SMA(10GHz) |
| Electrical interface [20GHz、30GHz] | V connector(20GHz、30GHz) |
| Connection Method | Panda PM fiber, FC/PC connector |
| Dimensions | 87 mm × 14.5 mm × 10 mm |
| Operating temperature | -45~+70 °C |
| Storage temperature | -55~+85 °C |
