300MHz Lithium Niobate Phase Modulator
The 300MHz lithium niobate (LiNbO3) phase modulator uses a waveguide fabricated by titanium diffusion or proton exchange. It offers low insertion loss and low drive voltage. Precision angled coupling between the fiber and waveguide reduces back reflection.
Save to Favorites
Overview

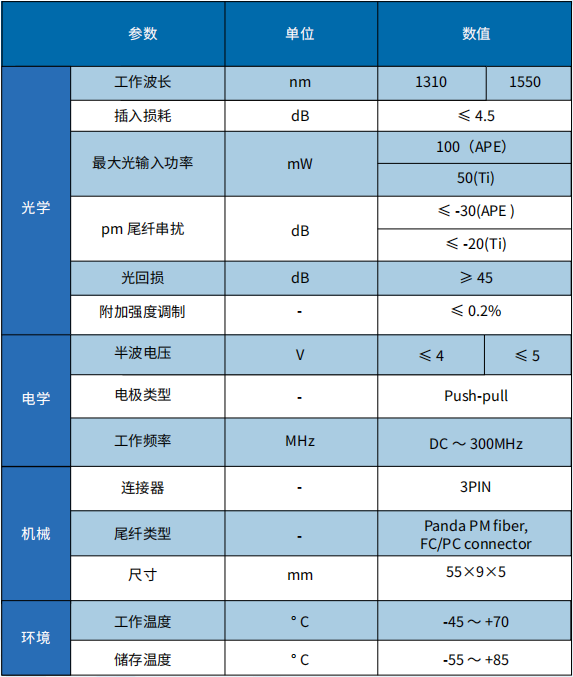

Specifications
| Parameter | Value |
|---|---|
| Operating wavelength | 1310 / 1550 nm |
| Insertion loss | ≤4.5 dB |
| Maximum Optical Input Power [APE] | 100（APE） |
| Maximum Optical Input Power [Ti] | 50(Ti) |
| pm Pigtail Crosstalk [APE] | ≤-30(APE) |
| pm Pigtail Crosstalk [Ti] | ≤-20(Ti) |
| Optical return loss | ≥45 dB |
| Additional Intensity Modulation | ≤0.2% |
| Half-wave voltage [Operating wavelength 1310nm] | ≤4 V |
| Half-wave voltage [Operating wavelength 1550nm] | ≤5 V |
| Electrode Type | Push-pull |
| Operating frequency | DC~300MHz |
| Connector | 3PIN |
| Pigtail type | Panda PM fiber, FC/PC connector |

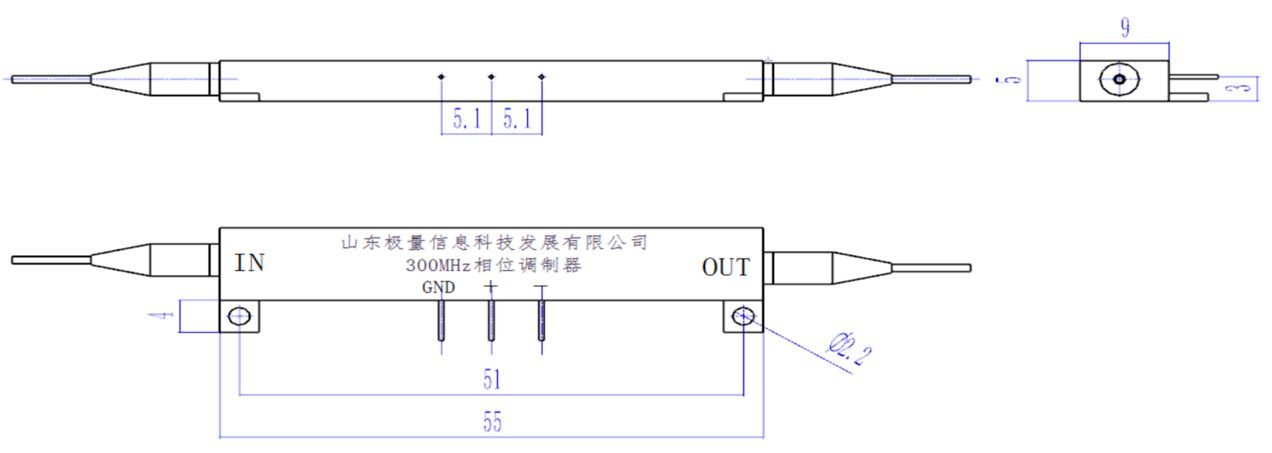

| Dimensions | 55 mm × 9 mm × 5 mm |
| Operating temperature | -45~+70 °C |
| Storage temperature | -55~+85 °C |
