Nitrogen Oven R-PCKN-450

Nitrogen Oven R-PCKN-450

Supplier
Riukai
Part Number
R-PCKN-450
Category
Material-based Production Equipment
Origin
China

The nitrogen oven uses an intelligent temperature controller with automatic PID calculation, LED display and SSR output for precise temperature control. Also called a nitrogen-purged oven, it is used in electronics, including silicone rubber, spraying, semiconductors, LCM, LCD, LED, MLCC, TFT, precision ceramics and quartz oscillators, as well as electrolytic capacitors, rubber/plastic keyboards and computers. It also serves motors, sports equipment, printing, pharmaceuticals, footwear, automotive parts, communications, hardware and chemicals for baking, drying, preheating, tempering and aging. This new electrically heated forced-air drying oven creates a clean, oxygen-free constant-temperature environment by introducing nitrogen during heating, making it suitable for baking products prone to oxidation at high temperature.

Request a Quote Download Datasheet
Save to Favorites Save to Favorites

Overview

The nitrogen oven uses an intelligent temperature controller with automatic PID calculation, LED display and SSR output for precise temperature control. Also called a nitrogen-purged oven, it is used in electronics, including silicone rubber, spraying, semiconductors, LCM, LCD, LED, MLCC, TFT, precision ceramics and quartz oscillators, as well as electrolytic capacitors, rubber/plastic keyboards and computers. It also serves motors, sports equipment, printing, pharmaceuticals, footwear, automotive parts, communications, hardware and chemicals for baking, drying, preheating, tempering and aging. This new electrically heated forced-air drying oven creates a clean, oxygen-free constant-temperature environment by introducing nitrogen during heating, making it suitable for baking products prone to oxidation at high temperature.

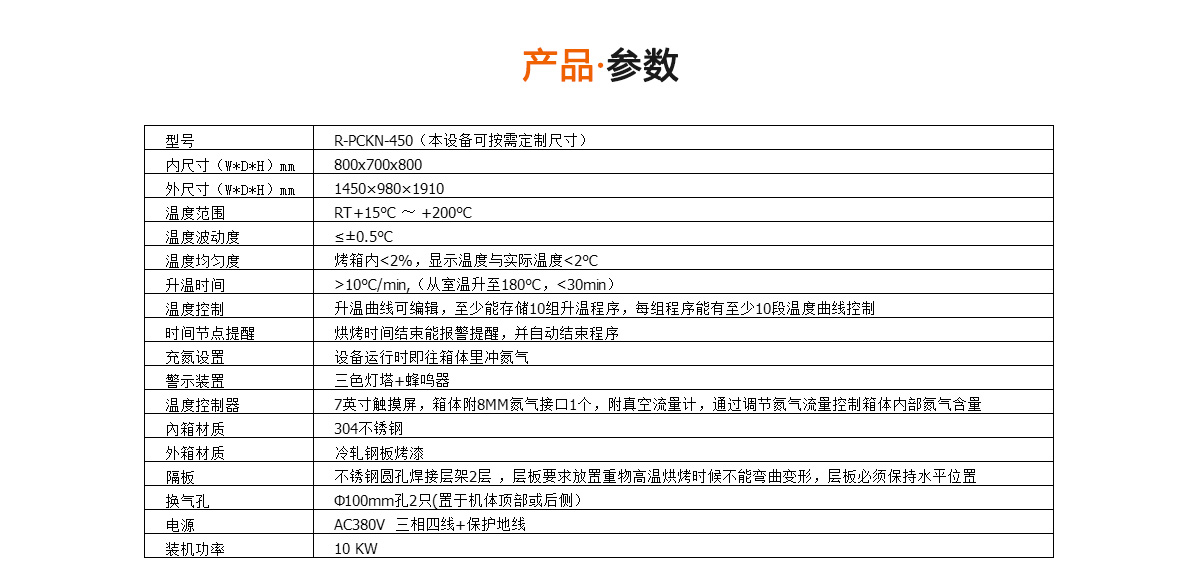

Specifications

ParameterValue
Internal dimensions (W*D*H) [Equipment Dimensions Customizable as Required]800 mm × 700 mm × 800 mm
External dimensions (W*D*H) [Equipment Dimensions Customizable as Required]1450 mm × 980 mm × 1910 mm
Temperature RangeRT+15°C~+200°C
Temperature Fluctuation≤±0.5°C
Temperature UniformityInside oven <2%; displayed versus actual temperature <2°C
Heating time [From Room Temperature to 180°C]>10°C/min(From Room Temperature to 180°C, <30min)
Temperature ControlEditable heating curves, with storage for at least 10 heating programs and at least 10 temperature-control segments per program.
Time-Point ReminderAlarm at the End of Baking Time and Automatic Program Termination
Nitrogen-Fill SettingsNitrogen Is Flushed into the Chamber during Operation
Warning DeviceThree-Color Signal Tower + Buzzer
Temperature Controller7-inch touchscreen; 1 nitrogen interface of 8MM on the chamber, with a vacuum flowmeter. Nitrogen concentration inside the chamber is controlled by adjusting nitrogen flow.
Inner chamber Material304 stainless steel
Outer box materialCold-Rolled Steel Plate with Baked-Paint Finish
Partition2 layers of welded stainless-steel perforated shelves. Shelves must remain horizontal without bending or deforming when supporting heavy objects during high-temperature baking.
Ventilation hole [Located at the Top or Rear of the Unit]2 Φ100mm Openings (at the Top or Rear of the Unit)
Power supplyAC380V Three-Phase Four-Wire + Protective Earth
Installed Power10 KW
