Single-crystal germanium (Ge) is a chemically inert, widely used infrared optical material with high hardness, good thermal conductivity and insolubility in water.

Request a Quote Download Datasheet
Save to Favorites Save to Favorites

Overview

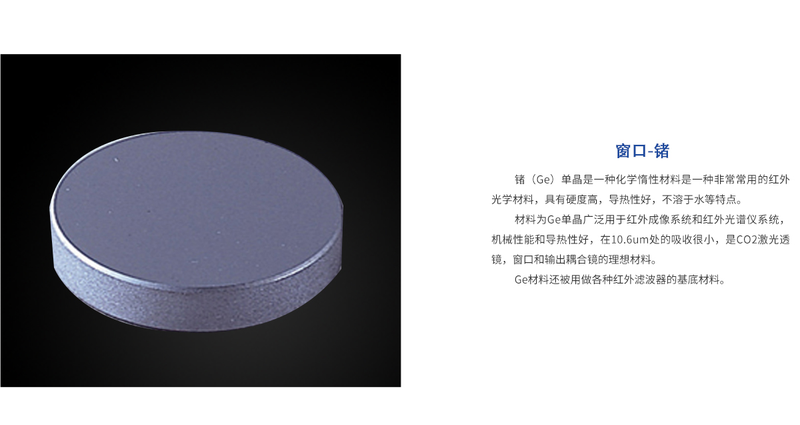

Single-crystal germanium (Ge) is a chemically inert, widely used infrared optical material with high hardness, good thermal conductivity and insolubility in water. It is widely used in infrared imaging and spectroscopy systems. Its mechanical properties, thermal conductivity and low absorption at 10.6um make it ideal for CO2-laser lenses, windows and output couplers. Ge is also used as a substrate for infrared filters.

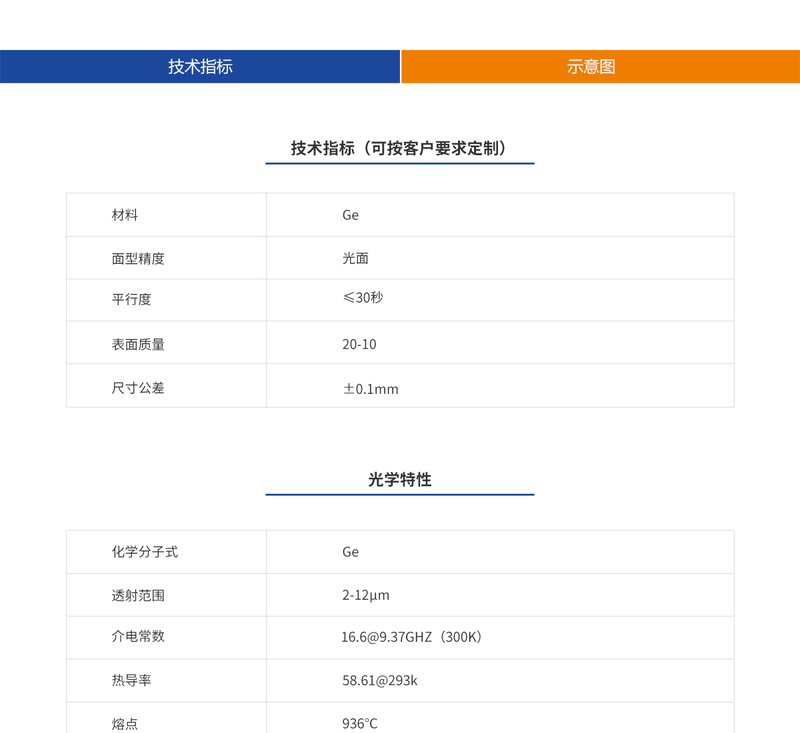

Specifications

ParameterValue
MaterialGe
Surface Figure AccuracyPolished Surface
Parallelism≤30 arcsec
Surface Quality20-10
Dimensional Tolerance±0.1mm
Molecular FormulaGe
Transmission Range2-12μm
Dielectric Constant [9.37GHZ;300K]16.6@9.37GHZ(300K)
Thermal conductivity [293k]58.61@293k

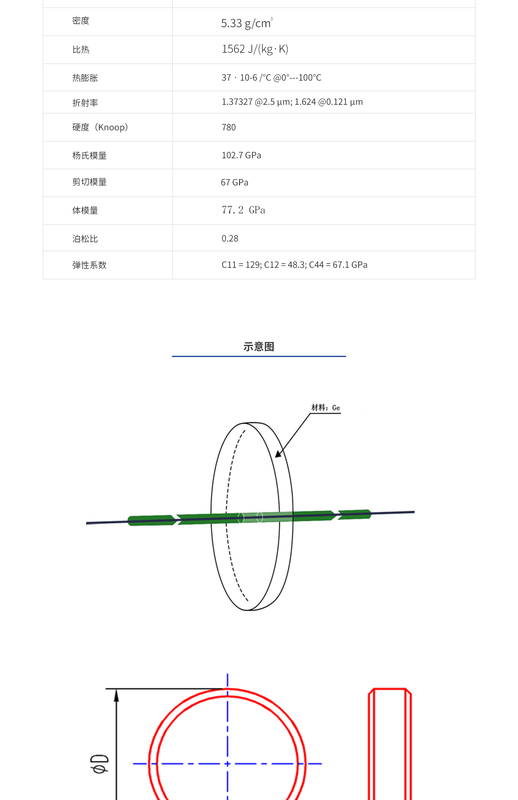

Melting Point936°C
Density5.33 g/cm³
Specific Heat1562 J/(kg·K)
Thermal Expansion [0°---100°C]37·10-6 /°C @0°---100°C
Refractive Index [2.5 μm]1.37327 @2.5 μm
Refractive Index [0.121 μm]1.624 @0.121 μm
Knoop780
Young's Modulus102.7 GPa
Shear Modulus67 GPa
Bulk Modulus77.2 GPa
Poisson's Ratio0.28
Elastic ConstantsC11=129; C12=48.3; C44=67.1 GPa
