Lithium fluoride

Lithium fluoride

Supplier
Zeit-group
Category
Optical Material
Origin
China

An optical window is a transparent physical barrier that transmits light between different environments.

Request a Quote Download Datasheet
Save to Favorites Save to Favorites

Overview

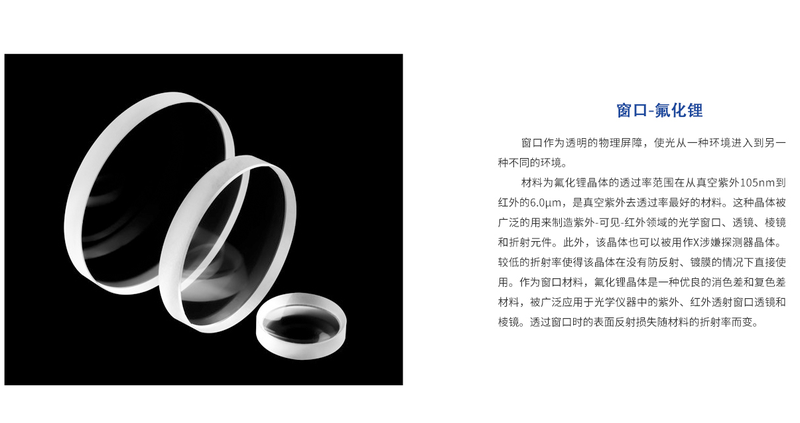

An optical window is a transparent physical barrier that transmits light between different environments. Lithium fluoride crystal transmits from 105nm in the vacuum ultraviolet to 6.0um in the infrared and is described as offering the best vacuum-ultraviolet transmission. It is widely used for ultraviolet, visible and infrared windows, lenses, prisms and refractive elements. The source also mentions detector crystals, but the detector designation is unclear. Its low refractive index allows use without an antireflection coating. Lithium fluoride is an excellent material for achromatic and apochromatic optics and is widely used in ultraviolet and infrared transmitting windows, lenses and prisms. Surface reflection losses depend on its refractive index.

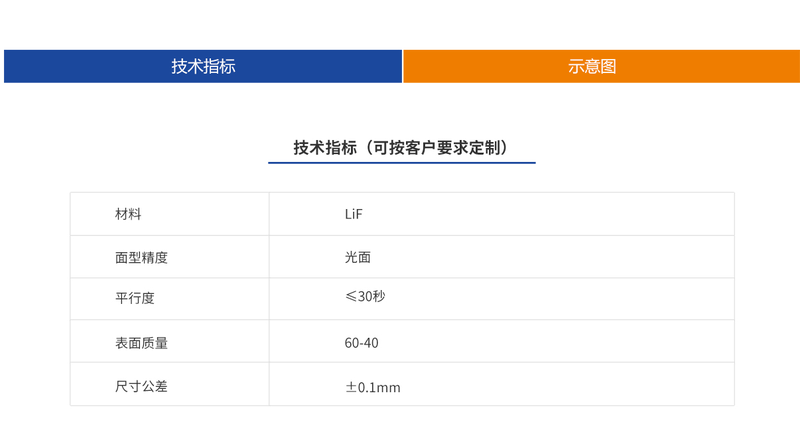

Specifications

ParameterValue
MaterialLiF
Surface Figure AccuracyPolished Surface
Parallelism≤30 arcsec
Surface Quality60-40
Dimensional Tolerance±0.1mm

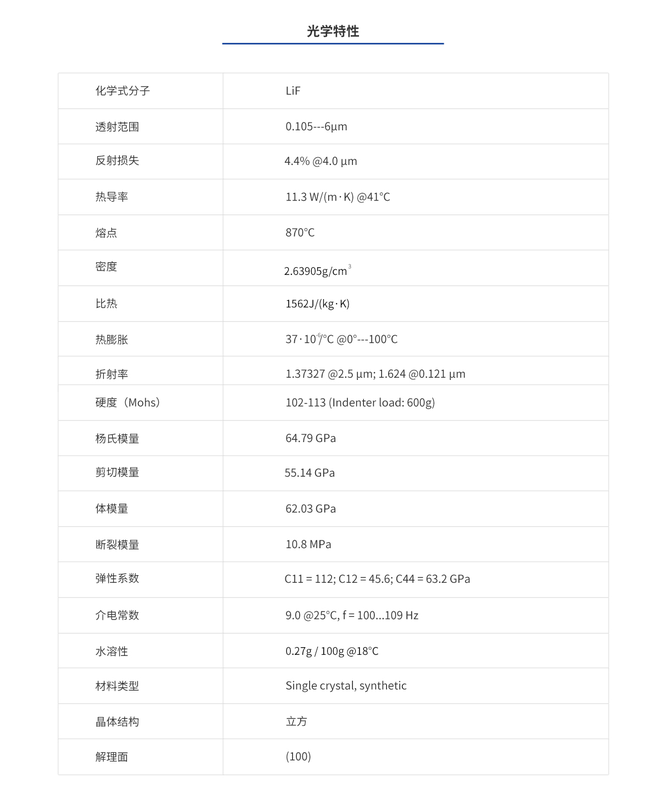

Molecular FormulaLiF
Transmission Range0.105---6μm
Reflection Loss [4.0 μm]4.4% @4.0 μm
Thermal conductivity [41°C]11.3 W/(m·K) @41°C
Melting Point870°C
Density2.63905g/cm³
Specific Heat1562J/(kg·K)
Thermal Expansion [0°---100°C]37·10⁻⁶/°C @0°---100°C
Refractive Index [2.5 μm]1.37327 @2.5 μm
Refractive Index [0.121 μm]1.624 @0.121 μm
Mohs [Indenter load: 600g]102-113 (Indenter load: 600g)
Young's Modulus64.79 GPa
Shear Modulus55.14 GPa
Bulk Modulus62.03 GPa
Modulus of Rupture10.8 MPa
Elastic ConstantsC11=112; C12=45.6; C44=63.2 GPa
Dielectric Constant [25°C;f=100...109 Hz]9.0 @25°C, f=100...109 Hz
Water Solubility [18°C]0.27g / 100g @18°C
Material TypeSingle crystal, synthetic
Crystal StructureCubic
Cleavage Plane(100)
