500M-12bit PCIe collection card

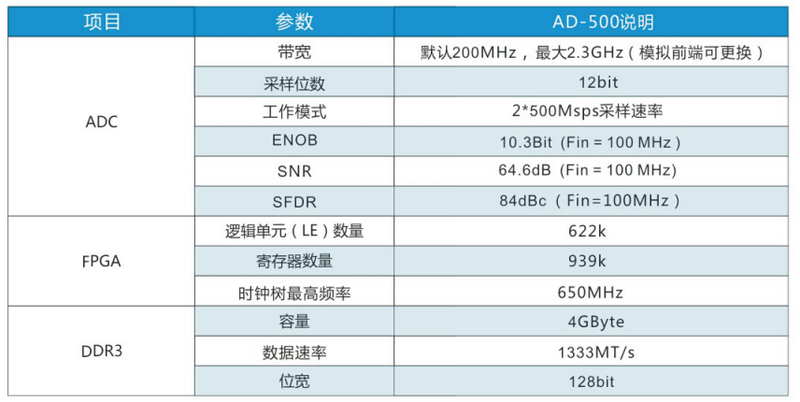

The high-speed AD-500 PCIe data acquisition card is a two-piece 500 Msps 12bit high-speed ADC; a high-speed data sampling, distribution, and signal processing panel matching the five-size Stratix 5-sized FPGA and 4Gbyte DDR3 memory; a high-speed PCI interface; features that are robust, platform-based, simple and easy to use; suitable for systems with high-speed collection requirements and a large amount of data return. High-speed ADC; multi-channel acquisition of ADC-supported external reference
