High precision pulse source table
SMP2008 is a high-precision pulse source table of large currents, narrow veins, high voltage; supports ns-level narrow pulse output, PIV curve scans and characterization parameter analysis; supports touchscreen and key-based operations; supports multiple communication interfaces and UCD data preservation; integrates pulsive voltage sources, current meters, voltage meters and photopower meters; and is user-friendly. Supports the minimum narrow pulse width 10ns pulse output test. Maximum outputabl
Save to Favorites
Overview

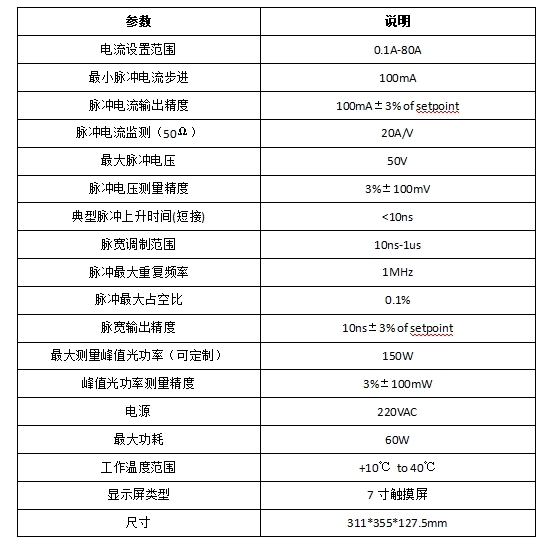

Specifications
| Parameter | Value |
|---|---|
| Current Settings Range | 0.1A-80A |
| Minimal pulse current step | 100mA |
| Pulse Current Output Accuracy | 100mA 3%of setpoint |
| Pulse Current Monitoring | 20AN |
| Maximum pulse | 5OV |
| Pulse voltage measurement pen precision | 3% 100mV |
| Typical pulse uptime | <10ns |
| Pulse-widening range | 10ns-1us |
| Maximum repeat frequency of pulses | 1MHz |
| The biggest ratio of pulses | 0.1% |
| Pulse width is accurate | 10nst3%of setpoint% |
| Max. Meteor peak light power | 150W |
| Optimum light power calibration | 3%‡100mW| |
| Max | 60W |
| Screen Type | Seven-inch touch screen |
