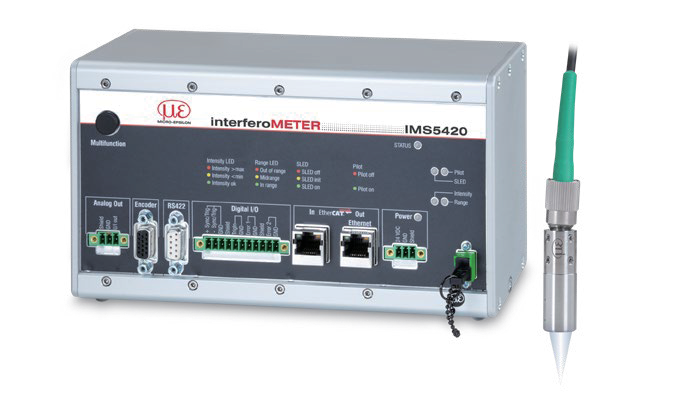

interferoMETER
The interferoMETER series offers ultra-precise white light interferometers for distance and thickness measurement, setting new standards in precision measurement technology.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Resolution | <1nm |
| Measurement Frequency | 100Hz-6kHz |
| Linearity | ±50nm |
| Temperature Stability | <10ppm |
| Light Source | NIR-SLED, approx. 840nm |
| Supply Voltage | 24VDC±15% |
| Power Consumption | 10W |
| Digital Interface | EtherCAT/RS422/PROFINET/EtherNet/IP |
| Analog Output | 4-20mA/0-10V |
| Protection Level | IP40 |
| Operating Temperature Range | +15°C to +35°C |
| Storage Temperature Range | -20°C to +70°C |
| Material | Aluminum housing |
Applications
Key Features
Datasheet
