MZI Interferometer OL-MZI-1300
The OL-MZI interferometer is for swept-source OCT. It contains a fixed-arm-difference MZI and a low-noise balanced detector providing the K-clock signal. Wavelength and arm difference can be customized. Vibration isolation and thermal insulation maximize module stability.
Save to Favorites
Overview

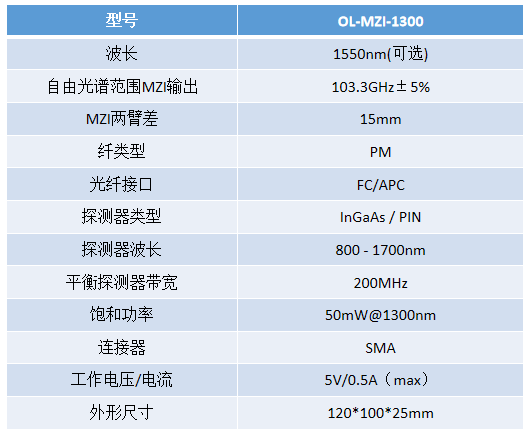

Specifications
| Parameter | Value |
|---|---|
| Wavelength [optional] | 1550nm（ optional ） |
| MZI Output Free Spectral Range [±5%] | 103.3GHz±5% |
| MZI Arm Difference | 15mm |
| Fiber Type | PM |
| Fiber interface | FC/APC |
| Detector Type | InGaAs / PIN |
| Detector Wavelength | 800-1700nm |
| Balanced Detector Bandwidth | 200MHz |
| Saturation Power [1300nm；@1300nm] | 50mW@1300nm |
| Connector | SMA |
| Operating voltage | 5V |
| Operating current [max] | 0.5A(max) |
| Overall dimensions | 120 mm × 100 mm × 25 mm |
