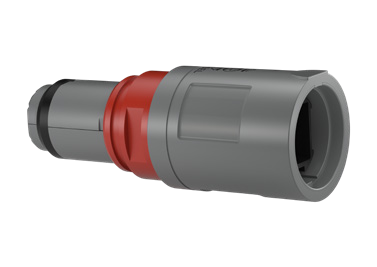

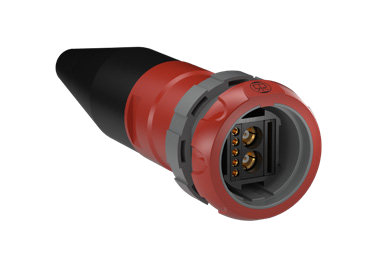

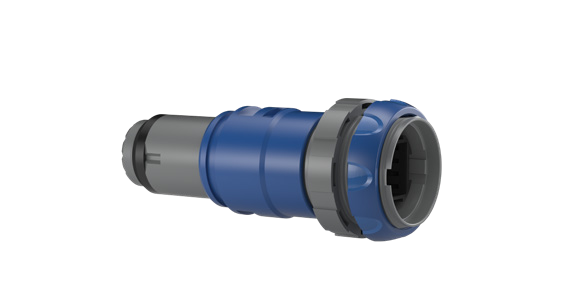

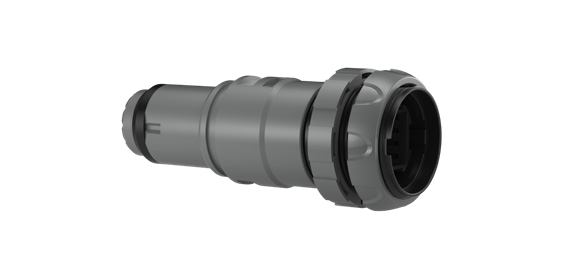

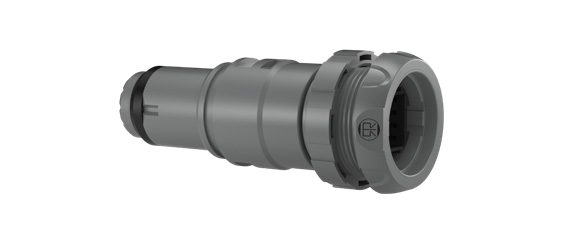

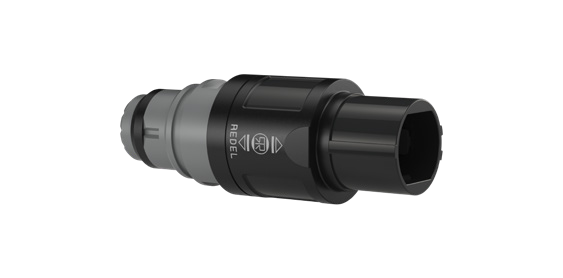

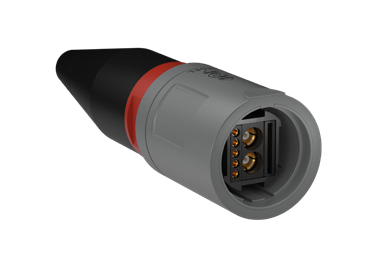

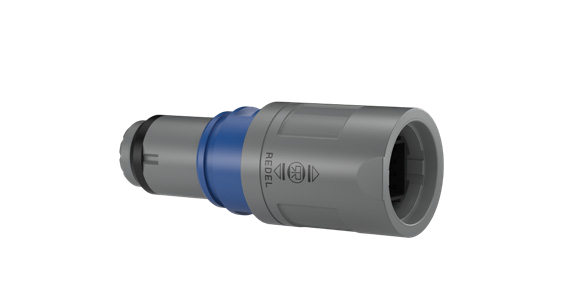

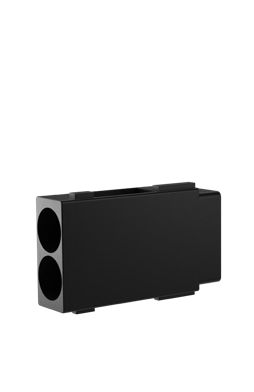

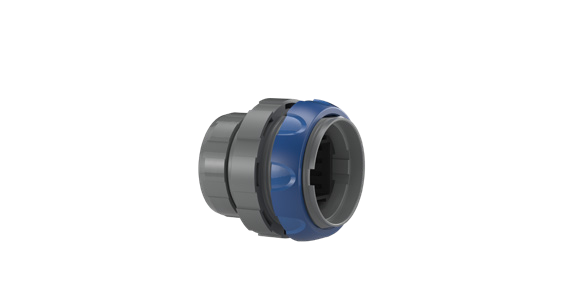

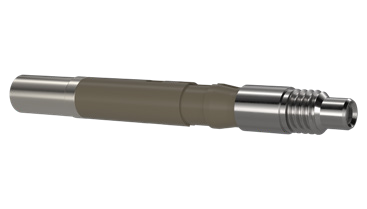

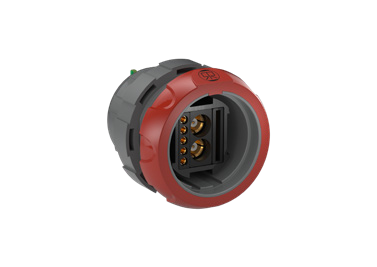

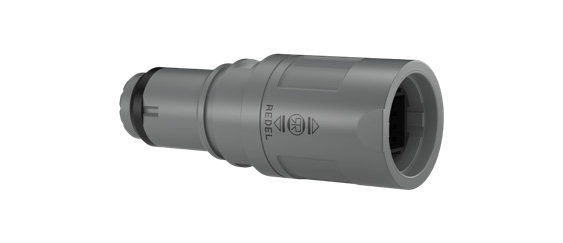

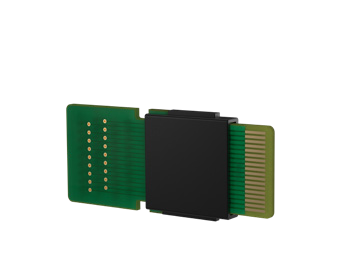

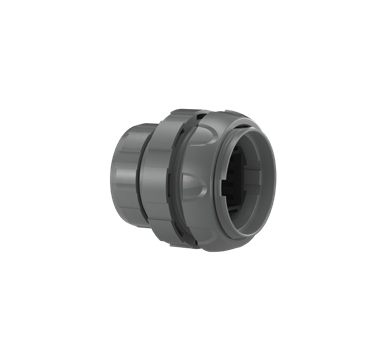

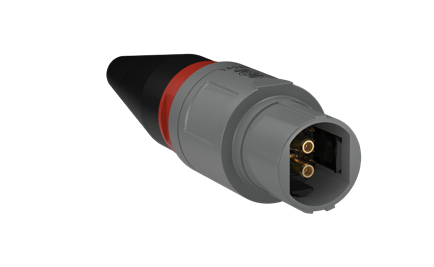

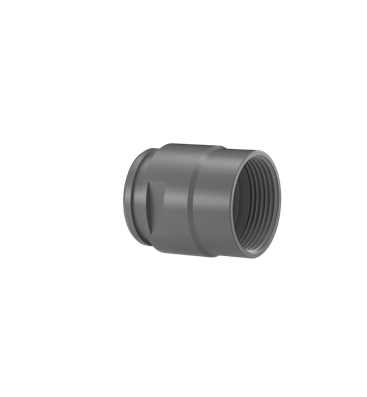

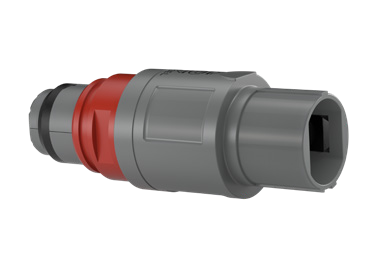

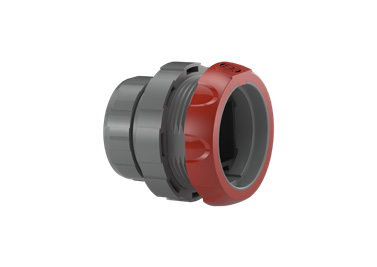

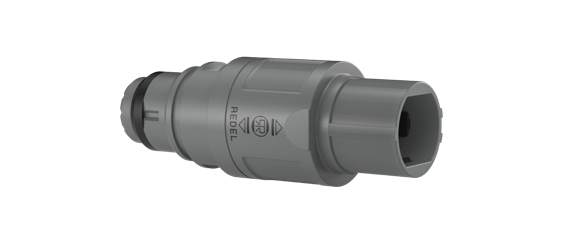

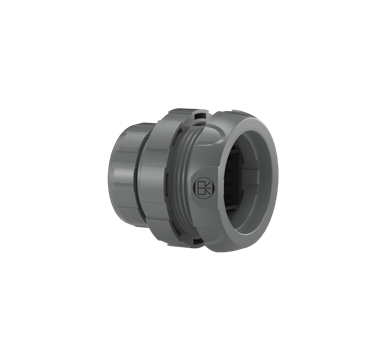

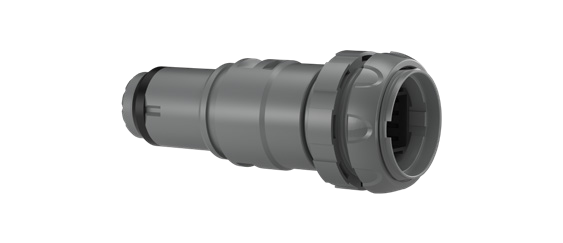

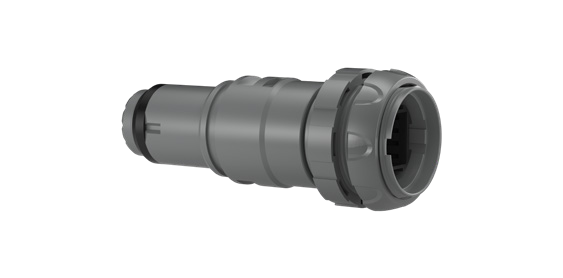

REDEL MP Series

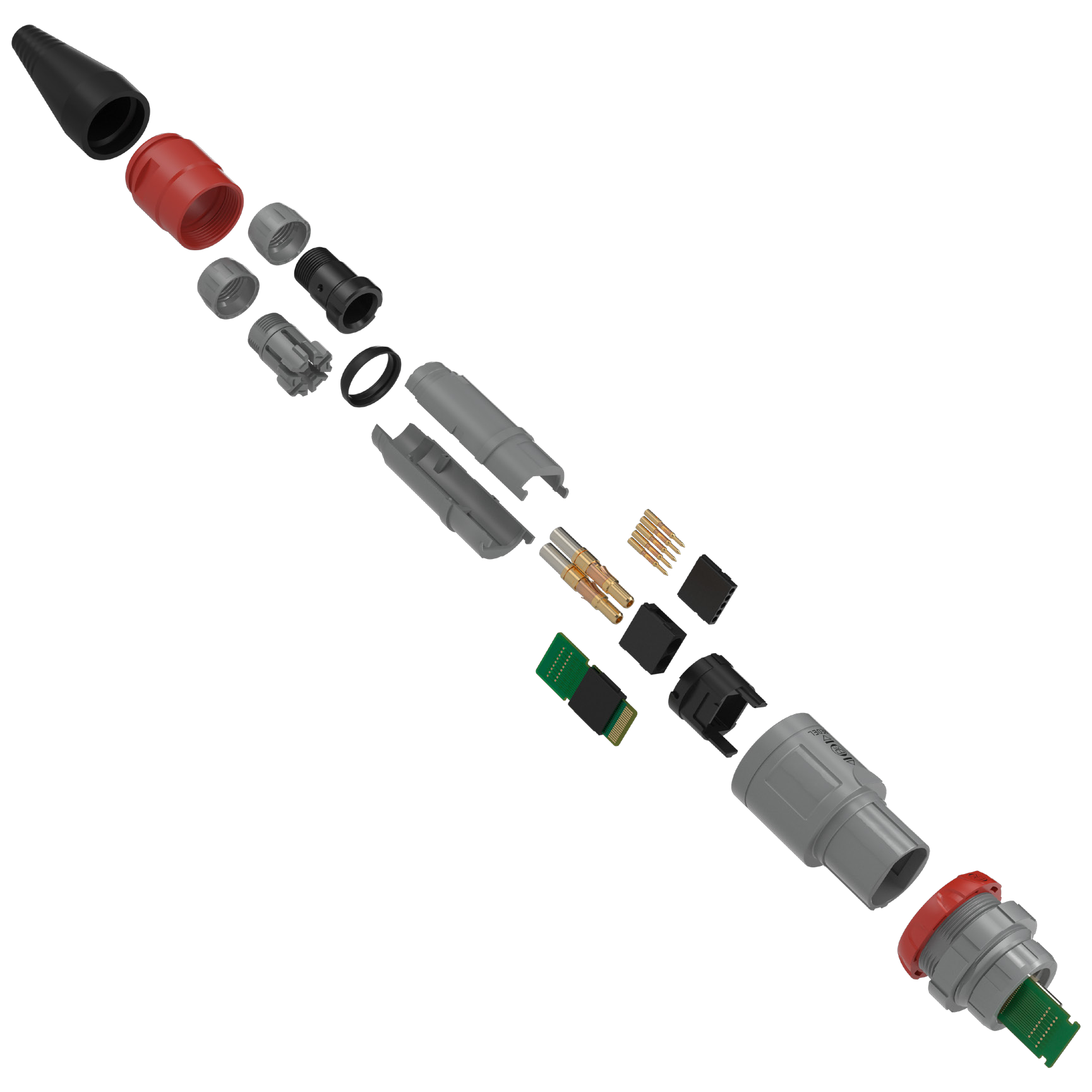

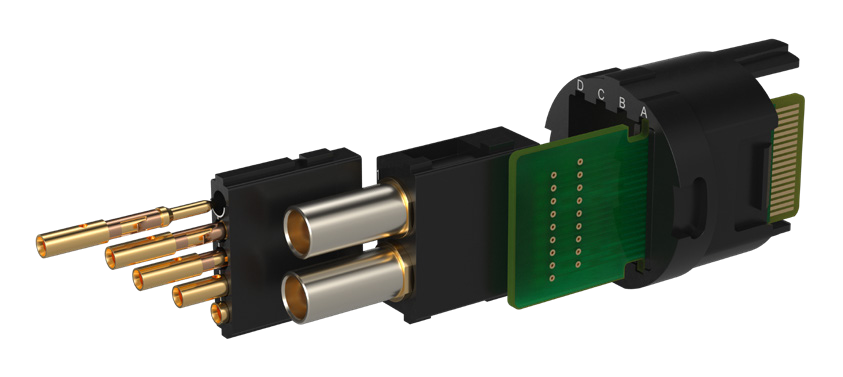

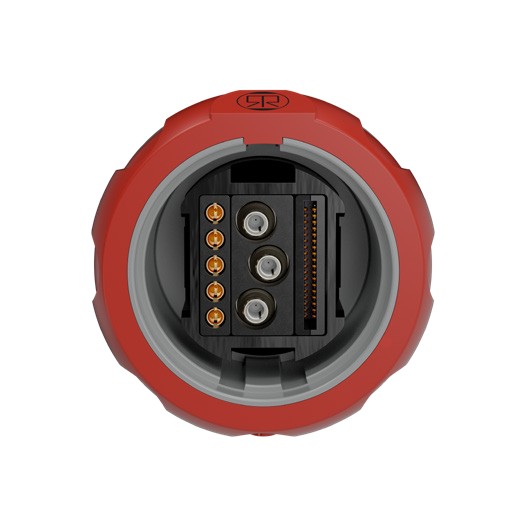

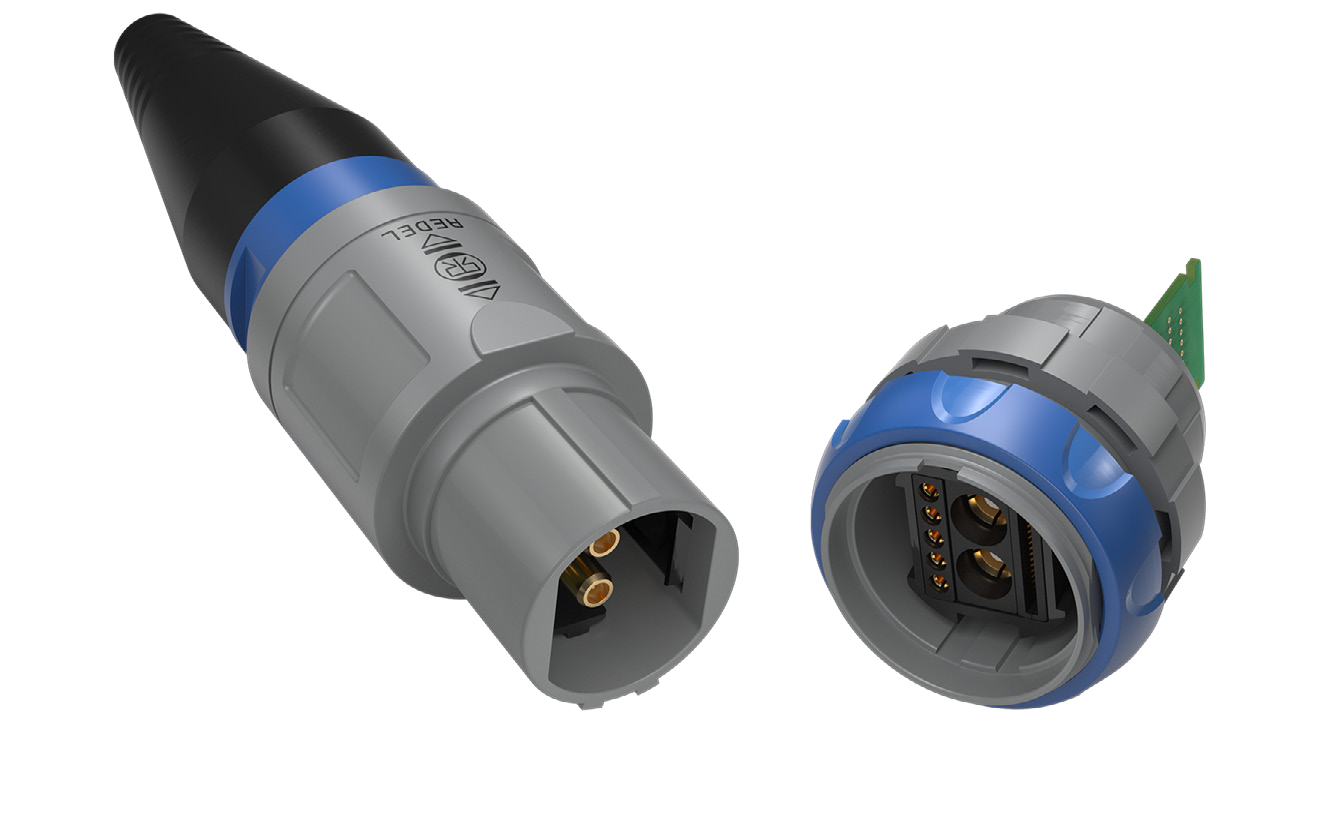

The REDEL MP Series is a modular plastic connector system designed to combine power, signal, data, fibre optic, and fluidic connectivity in a single connector. It offers high-density modules, customizable configurations, and easy assembly for diverse applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Insulation Resistance (Ω) | 10^12 |
| Electrostatic Discharge (kV) | 15 |
| Current Rating | Depending on insert |
| Average Mating Force (N) | 10 |
| Average Latch Retention Force (N) | 130 |
| Endurance (cycles) | >2000 |

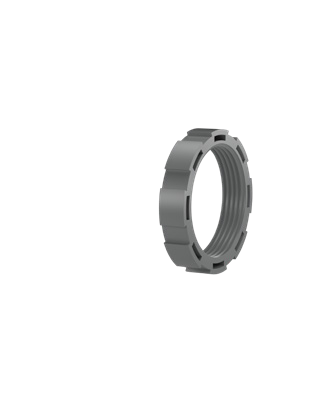

| Max Nut Tightening Torque (Nm) | 1 |

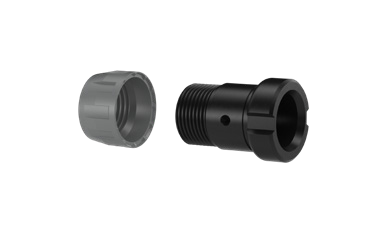

| Max Collet Nut Tightening Torque (Nm) | 0.65 |
| Ingress Protection Index (mated) | IP50 |
| Operating Temperature (°C) | -50/+170 |
| Humidity Resistance (up to 60 days) | 95% |
| Steam Sterilisation Temperature (°C) | 135 at 2.3 bar |
| Steam Sterilisation Cycles | 20 cycles |
| Material | PPSU |
| Material | PEEK |
| Material | LCP |
| Number of Modules | 17 |
| Low Voltage Contacts | 34 |
| HD Contacts | 144 |

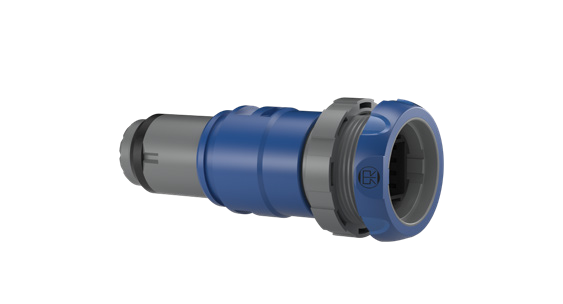

| Connector Housing Models | 6 |
| Alignment Keys | 4 |
| Cable Clamping Systems | 2 |

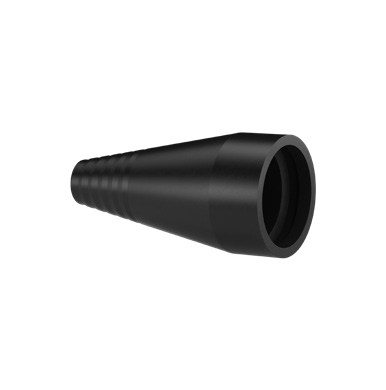

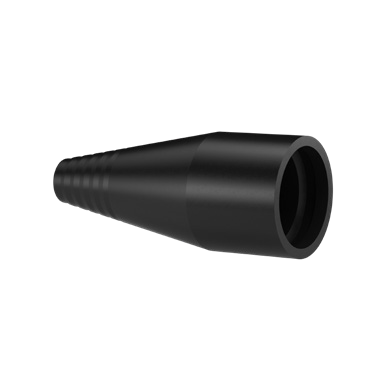

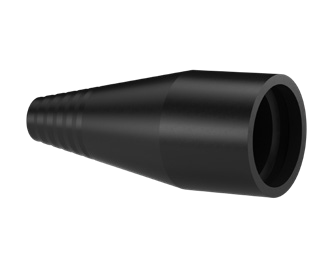

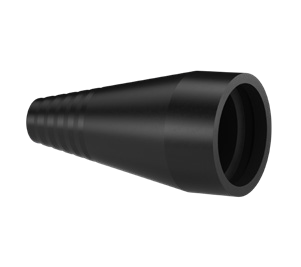

| Bend Relief Materials and Colours | 4 |
