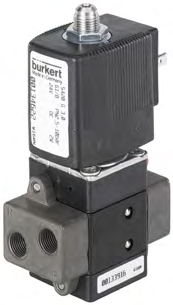

Type 5420 4/2-way Solenoid Valve
The Type 5420 is a pilot-controlled 4-way seat valve with servo-diaphragms, designed for pneumatic applications. It requires a minimum differential pressure of 2.5 bar for switch-over and can be mounted on two-channel manifolds with a common pressure supply.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Seal Material | NBR |
| Body Material | Polyamide |
| Coil Material | Polyamide |
| Coil Material | epoxy |
| Weight | Approx. 0.4kg |
| Orifice | DN3 |
| Circuit Function | G |
| Duty Cycle | 100% continuous operation |
| Compressed Air Quality | ISO 8573-1:2010, class 7.4.4 |
| Flow Rate (Qn) | 200l/min |
| Switching Time - Opening | 30ms (pressure build-up 0...90%) |
| Switching Time - Closing | 20ms (pressure reduction 100...10%) |
| Operating Voltage - Standard Variant | 24VDC, 24/230V 50/60Hz |
| Operating Voltage - ATEX/IECEx Variant | 24/110/230VUC |
| Power Consumption | 2W |
| Power Consumption - AC Variant | 11VA (inrush), 6VA (hold) |
| Voltage Tolerance | +10% |
| Medium | Neutral medium (e.g., lubricated or oil-free compressed dry air) |
| Medium Temperature | -10°C...+60°C |
| Product Connection | Plug contacts according to DIN EN 175301-803 form A |
| Port Connection | G1/8, tube SL6/4, sub-base |
| Protection Class | IP65 with cable plug |
| Ambient Temperature | Max. +55°C |
| Pressure Range | 2.5...10bar |
| Response Time - Opening | 30ms |
| Response Time - Closing | 20ms |
