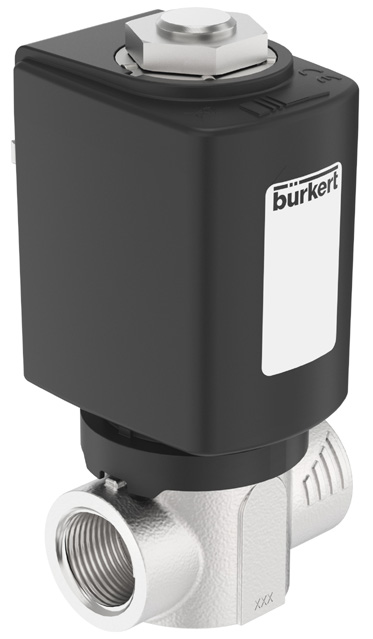

6027 Type Direct-acting 2/2-way Solenoid Valve
The 6027 Type is a high-performance direct-acting solenoid valve designed for precise fluid control in various industrial applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Nominal Diameter | DN1.0-DN13.0 |
| Solenoid Coil Grade | H class |

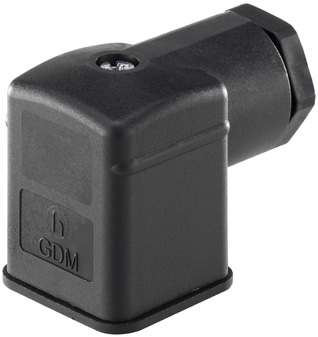

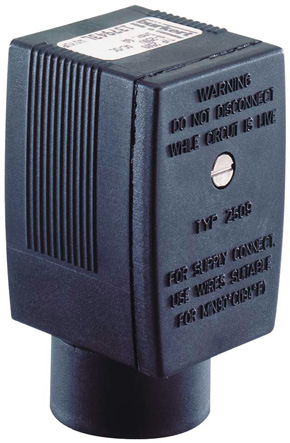

| Electrical Connection | DIN EN 175301-803 |
| Voltage Range | 24VDC, 24V50Hz, 24V60Hz, 110V50Hz, 230V50Hz, 240V60Hz |
| Ambient Temperature | -15°C to +60°C |
| Medium Temperature | -10°C to +140°C (depending on material) |
| Pressure Range | 0-250bar |
| Protection Class | IP65 |
| Materials | FKM |
| Materials | EPDM |
| Materials | NBR |
| Materials | PTFE |
| Materials | PEEK |
| Connection Type | G |
| Connection Type | Rc |
| Connection Type | NPT |
| Response Time | AC: 10-30ms, DC: 20-50ms |
| Flow Rate | 1.6-22cSt |
| Certifications | DIN EN 161, ATEX, IECEx, UL, FDA, USP |
| Dimensions | Refer to detailed drawings |
| Power | AC: 150VA, DC: 16W |
| Sealing Material | FKM |
| Sealing Material | EPDM |
| Sealing Material | PTFE |
| Sealing Material | PEEK |
| Applicable Medium | Water |
| Applicable Medium | oil |
| Applicable Medium | gas |
| Applicable Medium | chemical fluids |
| Installation | Recommended on machine surfaces |
