7016 Type Direct-acting Two-way Solenoid Valve

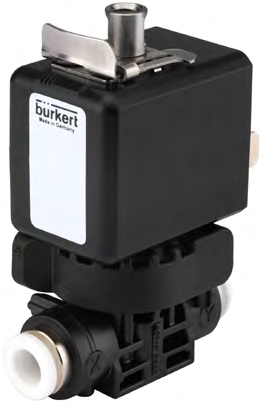

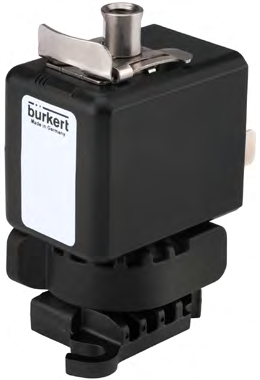

The 7016 type is a direct-acting solenoid valve designed for dosing and precise control of neutral liquids and gases. It features a modular design with easy tool-free coil replacement and is available in push-in and flange versions. Certified for food and beverage applications, it meets FDA and NSF standards.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Material | FKM |
| Material | EPDM |
| Sealing | Polyphenylene sulfide (PPS) |
| Push-in Version Weight | 115g |
| Flange Version Weight | 110g |
| Circuit Function | C |
| Coil Insulation Class | H |
| Duty Cycle | 100% ED (ambient temperature ≤65°C) |
| Switching Time | 8-15ms (open), 15-20ms (close) |
| Operating Voltage | 24V DC |
| Power | 7W |
| Medium Properties | Neutral liquids and gases (e.g., air, water, coffee, milk) |
| Medium Temperature | +5°C to +100°C |
| Medium Temperature (Food Applications) | +5°C to +145°C |
| Connection Type | Flange (6.3x0.8) or Push-in (tube diameter 6mm/4mm) |
| Protection Class | IP20 |
| Ambient Temperature | ≤65°C |
| Ambient Humidity | 10%-90% |
| Standards | UL 429, CAN/CSA-C22.2 No.139 |
| Certifications | NSF/ANSI 169, FDA, USP, EC 1935/2004 |
| Dimensions | Refer to technical drawings for flange and push-in versions |
