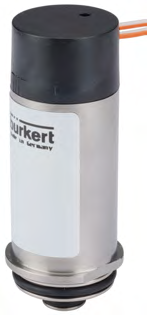

2852 Type Two-Way Proportional Valve
The 2852 Type proportional valve features pressure compensation functionality, compact design, and low power consumption, making it ideal for electronic equipment applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | Refer to drawings |
| Material | FKM, Stainless Steel 1.4113/1.4310/1.4305, PPS GF40 |
| Sealing Material | FKM |
| Materials in Contact with Media | Stainless Steel 1.4113/1.4310/1.4305, PPS GF40 |
| Circuit Function | A |
| Control Characteristics Deviation | <15% |
| Sensitivity | <1% F.S. |
| Repeatability | <0.1% F.S. |
| Adjustment Range (10-90%) | >1500 |
| Pressure Range | 0-7bar |
| Flow Rate | ≤1ml/min (air) |
| Operating Voltage | 12VDC, 24VDC |
| Power Consumption | 2.8W (max 3.4W) |
| Maximum Current Dissipation | 280mA at 12V, 140mA at 24V |
| Control Frequency | >2000Hz |
| Electrical Connection | 300mm cable, JST connector |
| Protection Class | IP50 (cable version), IP10 (JST version) |
| Ambient Temperature | +5°C to +50°C |
| Installation Position | Any |
| Installation Position | recommended on horizontal axis |
| Certification | USP, DIN EN 549:2023-07 |
| Flow Coefficient | 0.2m³/h |
| Nominal Pressure | 7bar |
