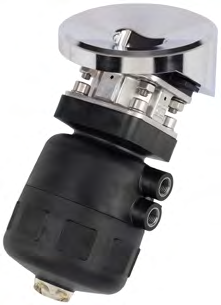

Type 2033 Pneumatic Actuated Diaphragm Valve (Classic)
The Type 2033 diaphragm valve is designed with a pneumatic actuator and diaphragm, offering reliable control for hygienic and industrial applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Material | 不锈钢材质1.4435符合DIN EN 10088以及316L符合ASTM A479/A479M |
| Diaphragm | EPDM (AD), PTFE/EPDM (EA), 高级PTFE/EPDM (EU), GYLON and EPDM复合材料(ER) |
| Actuator | PPS |
| Actuator | PA |
| Diaphragm Size | 8至100 |
| Surface Roughness | Ra≤0.38μm (NO17), Ra≤1.6μm (NO14) |
| Maximum Allowable Pressure | 7bar (PPS), 6bar (PA) |
| Operating Temperature | -10°C至+143°C (EPDM), -5°C至+150°C (PTFE/EPDM) |
| Ambient Temperature | +5°C至+140°C (PPS), -10°C至+50°C (PA) |
| Connection Standards | DIN EN ISO 1127/ISO 4200/DIN 11866系列B, DIN 11850-2/DIN 11866系列A/DIN EN 10357系列A, ASME BPE/DIN 11866系列C, DIN 32676系列A (DIN管道), DIN 32676系列B (ISO管道) |
| Control Functions | SFA |
| Control Functions | SFB |
| Control Functions | SFI |
| Explosion Proof Certification | ATEX EPS18ATEX2008X, IECEx EPS18.0007X |
| Food and Hygiene Certification | 3-A Sanitary Standards Inc., FDA, USP |
| Actuator Dimensions | 40至225mm |
| Diaphragm Dimensions | 8至100mm |
| Medium Pressure | 5.0至7bar |
| Maximum Working Pressure of Sealing Materials | 10bar (EPDM, FKM), 7bar (PTFE/EPDM) |
